Omaa Metal Sources is one of the world's driving Stainless Steel Short Radius Elbow makers in India.. We keep up Carbon Steel Short Radius Reducing Elbow, 304 SS Short Radius Elbow, ASTM A403 WP304L Short Radius Pipe Elbow and A403 Gr WP304 Elbow Short Radius are more moderate because of sensible expert hours in India and abundant wellspring of wonderful DIN 2605-1 Buttweld SR Elbow, most ideal circumstance, cost accessible in Mumbai, India. Omaa Metal Sources is most noticeable producer of SCH 80 Short Radius Elbow acknowledged by Saudi Aramco. We keep up huge deftly of ASME B16.9 SR Weld Elbow.Omaa Metal Sources stock most unmistakable degree of ASME B16.9 SR Weld Elbow, A234 Gr WPB Short Radius Elbow in Stock in different sizes.

Short Radius Elbow,Short Radius Elbow Manufacturers, Short Radius Elbow Exporters, Short Radius Elbow Suppliers, Short Radius Elbow Stockists,Short Radius Elbow Buttweld Fittings Manufacturers, Short Radius Elbow Buttweld Fittings Exporters, Short Radius Elbow Buttweld Fitting Suppliers, Short Radius Elbow Buttweld Fitting Stockists.

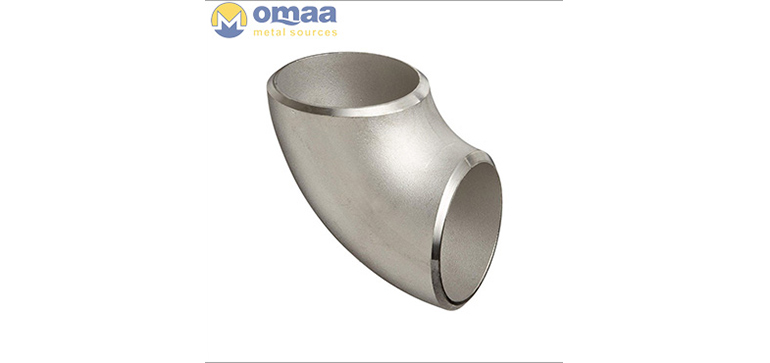

Awesome Image

Omaa Metal Sources, Trader of ASTM A234 WP9 SR Pipe Elbow, most ideal circumstance, cost in India, locate the best cost of Alloy Steel Short Radius Elbow including Stainless Steel Short Radius Elbow, Inconel 625 SR Elbow and MSS SP43 Short Radius Elbow.

Omaa Metal Sources is demanded provider of ANSI B16.9 Short Radius Reducing Elbow to Qatar, UK, Oman, Italy, Kuwait,Canada, Russia, Germany, Turkey, Indonesia, France, Singapore, Thailand, Malaysia, USA, Australia, Iran, Sweden, Israel, UAE, Bahrain, Egypt, Sri Lanka and Saudi Arabia.

We are likely dealer and provider of ASME B16.9 Short Radius Elbow, most ideal circumstance, cost as we are one of the best provider and seller of Carbon Steel Short Radius Reducing Elbow in India. We have our stocking merchants in Delhi, Bangalore, Surat, (Gujarat), Hyderabad, Pune (Maharashtra) and Chennai in Tamil Nadu. You can mail to sales@steelmarts.com for WPHY 60 Short Radius Pipe Elbow, most ideal circumstance, dealing with plant cost. Check once our ASME B16.9 SR Weld Elbow cost before purchasing Stainless Steel Short Radius Elbow from India or China. additionally mail for our live deftly of ANSI B16.9 Short Radius Elbow to check types and sizes with our prepared stock we can give you best cost of SS 316 Short Radius Elbow.

Short broadness elbows can be utilized to relate lines what's more have a similar interior and outside assessment, edge and divider thickness. ASME B16.9 Short range elbow reliably utilized in close areas. Carbon Steel Short Radius Elbow is besides called SR elbow, which proposes the range is 1.0 occasions the line extensiveness.

Short Radius Elbow Buttweld Fitting Manufacturers in Mumbai, Short Radius Elbow Buttweld Fitting Exporters in Mumbai, Short Radius Elbow Buttweld Fitting Suppliers in Mumbai, Short Radius Elbow Buttweld Fitting Stockists in Mumbai.

Specification of Short Radius Elbow

Specifications Short Radius Elbow
Short Radius Bend Elbow Pipe Fittings size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
SR Pipe Elbow Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Short Radius Weld Elbow Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Short Radius Pipe Elbow Types Seamless / ERW / Welded / Fabricated Pipe Fittings
SR Elbow Type DN15-DN1200
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
SR Pipe Elbow Fittings Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
Short Radius Pipe Elbow Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for Short Radius Elbow
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Application
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • ASME B16.9 Schedule 10 Short Radius Elbow are an economical alternative for lower-pressure applications.
  • ANSI B16.9 Schedule 40 Short Radius Elbow have a thicker wall for higher-pressure applications.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Material of Short Radius Weld Elbow

Prestige quality Short Radius Reducing Elbow manufacturers in India offer these Carbon Steel Short Radius Weld Elbow in DIN, EN, BS, ISO, JIS or ANSI standard.

Carbon Steel Short Radius Elbow
  • ASTM A234 WPB Short Radius Elbow
  • ASTM A420 WPL6 Short Radius Reducing Elbow
  • WPHY 42 SR Elbow
  • WPHY 52 SR Pipe Elbow
  • WPHY 60 Short Radius Pipe Elbow
  • WPHY 65 Short Radius Bend Elbow
  • WPHY 70 Short Radius Weld Elbow
Stainless Steel Short Radius Elbow
  • ASTM A403 WP304 Short Radius Reducing Elbow
  • ASTM A403 WP304L Short Radius Pipe Elbow
  • ASTM A403 WP316 SR Pipe Elbow
  • ASTM A403 WP316L Short Radius Reducing Elbow
  • ASTM A403 WP317 Short Radius Pipe Elbow
  • ASTM A403 WP317L Short Radius Weld Elbow
  • ASTM A403 WP321 Short Radius Reducing Elbow
  • ASTM A403 WP321H Short Radius Bend Elbow
  • ASTM A403 WP347 Short Radius Elbow
  • ASTM A403 WP347H SR Elbow
Alloy Steel Short Radius Reducing Elbow
  • ASTM A234 WP5 Short Radius Bend Elbow
  • ASTM A234 WP9 SR Pipe Elbow
  • ASTM A234 WP11 Short Radius Elbow
  • ASTM A234 WP22 Short Radius Pipe Elbow
  • ASTM A234 WP91 Short Radius Reducing Elbow
Inconel Short Radius Bend Elbow
  • Inconel 600 SR Pipe Elbow
  • Inconel 601 Short Radius Reducing Elbow
  • Inconel 625 SR Elbow
  • Inconel 718 Short Radius Weld Elbow
  • Inconel x750 Short Radius Elbow
Copper SR Pipe Elbow T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Short Radius Weld Elbow Copper Nickel 90/10 (C70600 ) Short Radius Reducing Elbow, Cupro Nickel 70/30 (C71500) Short Radius Elbow, UNS C71640 SR Pipe Elbow
Brass SR Elbow 3602 / 2604 / H59 / H62 / etc.
Hastelloy Short Radius Pipe Elbow Hastelloy C276 (UNS N10276) Short Radius Elbow, C22 (UNS N06022) Short Radius Reducing Elbow, C4 Short Radius Elbow, C2000 Short Radius Bend Elbow, B2 SR Pipe Elbow, B3 Short Radius Elbow, X SR Elbow
Monel Short Radius Pipe Elbow Monel 400 (UNS No. N04400) Short Radius Elbow, Monel 500 (UNS No. N05500) Short Radius Bend Elbow
Alloy 20 SR Pipe Elbow Carpenter® 20 Alloy Short Radius Pipe Elbow, Alloy 20Cb-3 Short Radius Weld Elbow
Aluminium Short Radius Bend Elbow 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel Short Radius Weld Elbow Nickel 200 Short Radius Elbow, Nickel 201 SR Elbow
Duplex Short Radius Pipe Elbow S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Short Radius Elbow S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy SR Pipe Elbow Incoloy 800 SR Elbow, Incoloy 800H Short Radius Elbow, Incoloy 800HT (UNS N08800) Short Radius Bend Elbow, Incoloy 825 (UNS N08825) Short Radius Weld Elbow
254 Smo Short Radius Reducing Elbow SMO 254/6Mo SR Pipe Elbow, UNS S31254 Short Radius Elbow, DIN 1.4547 Short Radius Bend Elbow
Nimonic Short Radius Pipe Elbow Nimonic 75 Short Radius Elbow, Nimonic 80A Short Radius Elbow, Nimonic 90 Short Radius Weld Elbow
Other SR Elbow material Tin bronze Short Radius Bend Elbow, Alumunum bronze Short Radius Pipe Elbow, Lead bronze Short Radius Pipe Elbow
Titanium Short Radius Weld Elbow
  • ASTM B381 Titanium Gr. 1 Short Radius Reducing Elbow
  • ASTM B381 Titanium Gr. 2 Short Radius Pipe Elbow
  • ASTM B381 Titanium Gr. 4 Short Radius Bend Elbow
  • ASTM B381 Titanium Gr. 5 Short Radius Elbow
  • ASTM B381 Titanium Gr. 7 Short Radius Weld Elbow

Dimensions of Short Radius Elbow

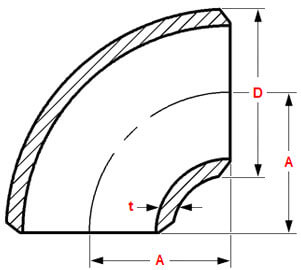

ASME B16.9 90 Degree Short Radius Elbow
NPS O.D.
D
Center-to-End
A
4 114.3 102
5 141.3 127
6 168.3 152
8 219.1 203
10 273 254
12 323.8 305
14 355.6 356
16 406.4 406
18 457 457
20 508 508
22 559 559
24 610 610
NPS O.D.
D
Center-to-End
A

Weight Chart Of SR Pipe Elbow

WEIGHTS OF FITTINGS
NPS
inches
ELBOWS
LR 90°
ELBOWS
SR 90°
Sch.
5S
Sch.
10S
Sch.
40S
Sch.
80S
Sch.
5S
Sch.
10S
Sch.
40S
Sch.
80S
1/2 0.05 0.06 0.08 0.10 0.03 0.04 0.05 0.07
3/4 0.06 0.07 0.09 0.11 0.04 0.05 0.06 0.07
1 0.09 0.15 0.18 0.20 0.06 0.10 0.12 0.13
1 1/4 0.13 0.20 0.25 0.35 0.09 0.13 0.17 0.12
1 1/2 0.18 0.30 0.40 0.50 0.12 0.20 0.27 0.33
2 0.30 0.50 0.70 0.90 0.20 0.33 0.47 0.60
2 1/2 0.60 0.85 1.35 1.80 0.40 0.60 0.90 1.20
3 0.90 1.30 2.00 2.90 0.60 0.90 1.35 1.90
4 1.40 2.00 4.00 5.90 0.90 1.35 2.65 3.90
5 2.90 3.60 6.50 9.70 1.95 2.40 4.35 6.50
6 4.00 5.00 10.5 16.0 2.70 3.35 7.00 10.5
8 7.40 10.0 21.5 33.5 4.90 6.70 14.5 22.5
10 13.6 16.8 38.5 52.5 9.10 11.2 25.6 35.0
12 23.4 27.0 59.0 79.0 15.6 18.0 39.5 53.0
14 29.0 35.0 70.0 94.0 19.3 23.5 47.0 63.0
16 41.3 47.0 95.0 125 27.5 31.5 63.5 84.0
18 51.8 59.0 120 158 34.5 39.5 80.0 105
20 73.0 85.0 146 194 49.0 57.0 98.0 129
24 122 140 210 282 82.0 94.0 140 188
Approximate weights in kg, density 8 kg/dm3

ASTM Specification of Short Radius Elbow

  •  Carbon Steel Short Radius Bend Elbow
    •  ASTM A234 WPB SR Pipe Elbow
    •  ASTM A420 WPL6 SR Elbow
  •  Alloy Steel High-Temp Short Radius Pipe Elbow
    •  ASTM A234 WP5 SR Pipe Elbow
    •  ASTM A234 WP11 Short Radius Weld Elbow
    •  ASTM A234 WP9 SR Elbow
    •  ASTM A234 WP22 Short Radius Reducing Elbow
    •  ASTM A234 WP91 Short Radius Elbow
  •  Austenitic Stainless Steel Short Radius Elbow
    •  ASTM A403 Gr WP304 Short Radius Bend Elbow
    •  ASTM A403 Gr WP316 SR Elbow
    •  ASTM A403 Gr WP321 Short Radius Elbow
    •  ASTM A403 Gr WP347 Short Radius Weld Elbow
    •  ASTM A403 Gr WP304L Short Radius Reducing Elbow
    •  ASTM A403 Gr WP316L Short Radius Weld Elbow
    •  ASTM A403 Gr WP317 SR Elbow
    •  ASTM A403 Gr WP317L Short Radius Pipe Elbow
    •  ASTM A403 Gr WP321 Short Radius Bend Elbow
    •  ASTM A403 Gr WP310 Short Radius Weld Elbow
    •  ASTM A403 Gr WP347 SR Pipe Elbow
  •  Nickel Alloy Short Radius Bend Elbow
    •  ASTM B564 Short Radius Reducing Elbow
    •  astm b564 uns n06600 SR Pipe Elbow
    •  astm b564 uns n06625 Short Radius Elbow
    •  astm b564 uns no4400 Short Radius Pipe Elbow
    •  astm b564 uns n08810 SR Elbow
    •  astm b564 uns n08811 Short Radius Bend Elbow
    •  astm b564 uns n08825 SR Pipe Elbow
    •  astm b564 uns n04400 Short Radius Reducing Elbow
    •  astm b564 uns n10276 Short Radius Elbow
    •  astm b564 uns n10665 Short Radius Pipe Elbow

Domestic Area


Our Export

Short Radius Elbow Buttweld Fitting Manufacturers in India, Short Radius Elbow Buttweld Fitting Exporters in India, Short Radius Elbow Buttweld Fitting Suppliers in India, Short Radius Elbow Buttweld Fitting Stockists in India.
