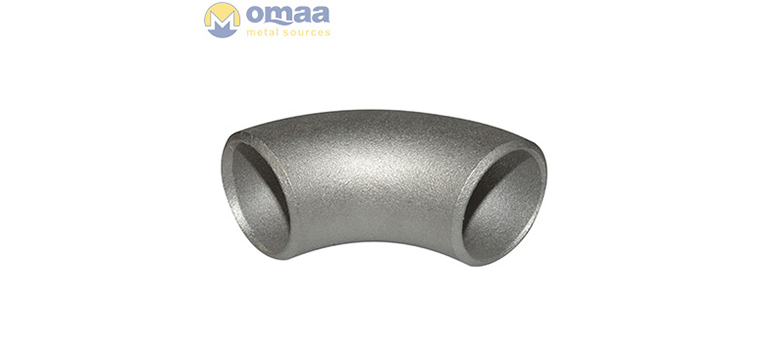

90 Degree Elbow Buttweld Fitting

Omaa Metal Sources is unprecedented among other clear Stainless Steel 90 Degree Elbow Manufacturers in India. Cemented Steel 90° Short Radius Elbow is a huge load of impervious to substance detaching and oxidation (usage safe), and has some high weight burst. We have relationship with terms of warmth treatment gives us the likelihood to cover a wide degree of Carbon steel elbow materials. ASME B16.9 Fittings are made by two collected assembling measures

90 Degree Elbow,90 Degree Elbow Manufacturers, 90 Degree Elbow Exporters, 90 Degree Elbow Suppliers, 90 Degree Elbow Stockists,90 Degree Elbow Buttweld Fittings Manufacturers, 90 Degree Elbow Buttweld Fittings Exporters, 90 Degree Elbow Buttweld Fitting Suppliers, 90 Degree Elbow Buttweld Fitting Stockists.

Awesome Image

SS 90 Degree Long Radius Elbow has mind blowing security from chloride-particle stress-use breaking, other than shows sensible confirmation from various oxidizing conditions. ANSI B16.9 Elbow (notwithstanding called 90° LR Elbow) is a goliath degree of guaranteed to increase use and oxidation, and has some high weight break plentifulness and low killjoy rates under high worries at temperatures later reasonable warmth treatment.

Tempered Steel 90 Degree Elbows are utilized in low-pressure gravity-regulated constructions and different applications where low contrast and least assurance of entrained solids are of concern. ASME B16.9 Fittings are open in copper, and are utilized in DWV advancements, sewage, and focal vacuum frameworks.

An ANSI B16.9 Elbow, regardless called a "90 breeze", "90 ell" or "quarter wind", affixss quickly to plastic, copper, solid metal, steel, and lead, and is joined to versatile with treated steel snaps. Other open materials join silicone, versatile mixes, connected with steel, and nylon. It is essentially used to relate hoses to valves, water siphons and deck channels.

90 Degree Elbow Buttweld Fitting Manufacturers in Mumbai, 90 Degree Elbow Buttweld Fitting Exporters in Mumbai, 90 Degree Elbow Buttweld Fitting Suppliers in Mumbai, 90 Degree Elbow Buttweld Fitting Stockists in Mumbai.

Specification of 90 Degree Elbow

Specifications 90 Degree Elbow
90 Degree Weld Elbow Pipe Fittings size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
90 Degree Pipe Elbow Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
90 Degree Pipe Elbow Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
90 Degree Reducing Elbow Types Seamless / ERW / Welded / Fabricated Pipe Fittings
90 Degree Pipe Elbow Type DN15-DN1200
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
90 Degree Pipe Elbow Fittings Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
90 Degree Reducing Elbow Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for 90 Degree Elbow
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Application
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • ASME B16.9 Schedule 10 90 Degree Elbow are an economical alternative for lower-pressure applications.
  • ANSI B16.9 Schedule 40 90 Degree Elbow have a thicker wall for higher-pressure applications.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Material of 90 Degree Elbow

Prestige quality 45 Degree Pipe Elbow manufacturers in India offer these Carbon Steel 45 Degree Pipe Elbow in DIN, EN, BS, ISO, JIS or ANSI standard.

Carbon Steel 90 Degree Elbow
  • ASTM A234 WPB 90 Degree Elbow
  • ASTM A420 WPL6 90 Degree Reducing Elbow
  • WPHY 42 90 Degree Pipe Elbow
  • WPHY 52 90 Degree Pipe Elbow
  • WPHY 60 90 Degree Reducing Elbow
  • WPHY 65 90 Degree Weld Elbow
  • WPHY 70 90 Degree Pipe Elbow
Stainless Steel 90 Degree Elbow
  • ASTM A403 WP304 90 Degree Reducing Elbow
  • ASTM A403 WP304L 90 Degree Reducing Elbow
  • ASTM A403 WP316 90 Degree Pipe Elbow
  • ASTM A403 WP316L 90 Degree Reducing Elbow
  • ASTM A403 WP317 90 Degree Reducing Elbow
  • ASTM A403 WP317L 90 Degree Pipe Elbow
  • ASTM A403 WP321 90 Degree Reducing Elbow
  • ASTM A403 WP321H 90 Degree Weld Elbow
  • ASTM A403 WP347 90 Degree Elbow
  • ASTM A403 WP347H 90 Degree Pipe Elbow
Alloy Steel 90 Degree Reducing Elbow
  • ASTM A234 WP5 90 Degree Weld Elbow
  • ASTM A234 WP9 90 Degree Pipe Elbow
  • ASTM A234 WP11 90 Degree Elbow
  • ASTM A234 WP22 90 Degree Reducing Elbow
  • ASTM A234 WP91 90 Degree Reducing Elbow
Inconel 90 Degree Weld Elbow
  • Inconel 600 90 Degree Pipe Elbow
  • Inconel 601 90 Degree Reducing Elbow
  • Inconel 625 90 Degree Pipe Elbow
  • Inconel 718 90 Degree Pipe Elbow
  • Inconel x750 90 Degree Elbow
Copper 90 Degree Pipe Elbow T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel 90 Degree Pipe Elbow Copper Nickel 90/10 (C70600 ) 90 Degree Reducing Elbow, Cupro Nickel 70/30 (C71500) 90 Degree Elbow, UNS C71640 90 Degree Pipe Elbow
Brass 90 Degree Pipe Elbow 3602 / 2604 / H59 / H62 / etc.
Hastelloy 90 Degree Reducing Elbow Hastelloy C276 (UNS N10276) 90 Degree Elbow, C22 (UNS N06022) 90 Degree Reducing Elbow, C4 90 Degree Elbow, C2000 90 Degree Weld Elbow, B2 90 Degree Pipe Elbow, B3 90 Degree Elbow, X 90 Degree Pipe Elbow
Monel 90 Degree Reducing Elbow Monel 400 (UNS No. N04400) 90 Degree Elbow, Monel 500 (UNS No. N05500) 90 Degree Weld Elbow
Alloy 20 90 Degree Pipe Elbow Carpenter® 20 Alloy 90 Degree Reducing Elbow, Alloy 20Cb-3 90 Degree Pipe Elbow
Aluminium 90 Degree Weld Elbow 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel 90 Degree Pipe Elbow Nickel 200 90 Degree Elbow, Nickel 201 90 Degree Pipe Elbow
Duplex 90 Degree Reducing Elbow S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex 90 Degree Elbow S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy 90 Degree Pipe Elbow Incoloy 800 90 Degree Pipe Elbow, Incoloy 800H 90 Degree Elbow, Incoloy 800HT (UNS N08800) 90 Degree Weld Elbow, Incoloy 825 (UNS N08825) 90 Degree Pipe Elbow
254 Smo 90 Degree Reducing Elbow SMO 254/6Mo 90 Degree Pipe Elbow, UNS S31254 90 Degree Elbow, DIN 1.4547 90 Degree Weld Elbow
Nimonic 90 Degree Reducing Elbow Nimonic 75 90 Degree Elbow, Nimonic 80A 90 Degree Elbow, Nimonic 90 90 Degree Pipe Elbow
Other 90 Degree Pipe Elbow material Tin bronze 90 Degree Weld Elbow, Alumunum bronze 90 Degree Reducing Elbow, Lead bronze 90 Degree Reducing Elbow
Titanium 90 Degree Pipe Elbow
  • ASTM B381 Titanium Gr. 1 90 Degree Reducing Elbow
  • ASTM B381 Titanium Gr. 2 90 Degree Reducing Elbow
  • ASTM B381 Titanium Gr. 4 90 Degree Weld Elbow
  • ASTM B381 Titanium Gr. 5 90 Degree Elbow
  • ASTM B381 Titanium Gr. 7 90 Degree Pipe Elbow

ASTM Specification of 90 Degree Elbow

  •  Carbon Steel 90 Degree Weld Elbow
    •  ASTM A234 WPB 90 Degree Pipe Elbow
    •  ASTM A420 WPL6 90 Degree Pipe Elbow
  •  Alloy Steel High-Temp 90 Degree Reducing Elbow
    •  ASTM A234 WP5 90 Degree Pipe Elbow
    •  ASTM A234 WP11 90 Degree Pipe Elbow
    •  ASTM A234 WP9 90 Degree Pipe Elbow
    •  ASTM A234 WP22 90 Degree Reducing Elbow
    •  ASTM A234 WP91 90 Degree Elbow
  •  Austenitic Stainless Steel 90 Degree Elbow
    •  ASTM A403 Gr WP304 90 Degree Weld Elbow
    •  ASTM A403 Gr WP316 90 Degree Pipe Elbow
    •  ASTM A403 Gr WP321 90 Degree Elbow
    •  ASTM A403 Gr WP347 90 Degree Pipe Elbow
    •  ASTM A403 Gr WP304L 90 Degree Reducing Elbow
    •  ASTM A403 Gr WP316L 90 Degree Pipe Elbow
    •  ASTM A403 Gr WP317 90 Degree Pipe Elbow
    •  ASTM A403 Gr WP317L 90 Degree Reducing Elbow
    •  ASTM A403 Gr WP321 90 Degree Weld Elbow
    •  ASTM A403 Gr WP310 90 Degree Pipe Elbow
    •  ASTM A403 Gr WP347 90 Degree Pipe Elbow
  •  Nickel Alloy 90 Degree Weld Elbow
    •  ASTM B564 90 Degree Reducing Elbow
    •  astm b564 uns n06600 90 Degree Pipe Elbow
    •  astm b564 uns n06625 90 Degree Elbow
    •  astm b564 uns no4400 90 Degree Reducing Elbow
    •  astm b564 uns n08810 90 Degree Pipe Elbow
    •  astm b564 uns n08811 90 Degree Weld Elbow
    •  astm b564 uns n08825 90 Degree Pipe Elbow
    •  astm b564 uns n04400 90 Degree Reducing Elbow
    •  astm b564 uns n10276 90 Degree Elbow
    •  astm b564 uns n10665 90 Degree Reducing Elbow

Dimensions of 90 Degree Pipe Elbow

ASME B16.9 90 Degree Long Radius Elbow Manufacturers

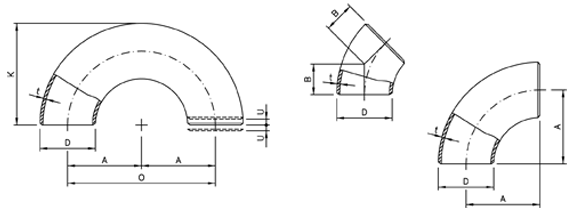

LONG RADIUS ELBOWS (R = 1,5 ND) ANSI B 16.9 dimensions
inches ND mm Center to center Radius Center to end Back to face
D O A B K
1/2 15 21,34 76,20 38,10 15,87 47,62
3/4 20 26,67 57,15 28,57 11,11 42,86
1 25 33,40 76,20 38,10 22,22 55,56
1 1/4 32 42,16 95,25 47,60 25,40 69,85
1 1/2 40 48,26 114,30 57,15 28,57 82,55
2 50 60,32 152,40 76,20 34,92 106,40
2 1/2 65 73,02 190,50 95,25 44,45 131,80
3 80 88,90 228,60 114,30 50,80 158,75
3 1/2 90 101,60 266,70 133,35 57,15 184,15
4 100 114,30 304,80 152,40 63,50 209,55
5 125 141,30 381,00 190,50 79,38 261,90
6 150 168,27 457,20 228,60 95,25 312,70
8 200 219,07 609,60 304,80 127,00 414,30
10 250 273,05 762,00 381,00 158,75 517,50
12 300 323,85 914,40 457,20 190,50 619,10
14 350 355,60 1066,80 533,40 222,25 711,20
16 400 406,40 1219,20 609,60 254,00 812,80
18 450 457,20 1371,60 685,80 285,74 914,40
20 500 508,00 1524,00 762,00 317,50 1016,00
22 550 558,80 1676,40 838,20 342,90 1117,60
24 600 609,60 1828,80 914,40 381,00 1219,20
28 700 711,20 2133,60 1066,80 441,90 1422,40
Dimensions in mm.

Weight Chart Of 90 Degree Pipe Elbow

WEIGHTS OF FITTINGS
NPS
inches		 ELBOWS
LR 90°		 ELBOWS
SR 90°
Sch.
5S		 Sch.
10S		 Sch.
40S		 Sch.
80S		 Sch.
5S		 Sch.
10S		 Sch.
40S		 Sch.
80S
1/2 0.05 0.06 0.08 0.10 0.03 0.04 0.05 0.07
3/4 0.06 0.07 0.09 0.11 0.04 0.05 0.06 0.07
1 0.09 0.15 0.18 0.20 0.06 0.10 0.12 0.13
1 1/4 0.13 0.20 0.25 0.35 0.09 0.13 0.17 0.12
1 1/2 0.18 0.30 0.40 0.50 0.12 0.20 0.27 0.33
2 0.30 0.50 0.70 0.90 0.20 0.33 0.47 0.60
2 1/2 0.60 0.85 1.35 1.80 0.40 0.60 0.90 1.20
3 0.90 1.30 2.00 2.90 0.60 0.90 1.35 1.90
4 1.40 2.00 4.00 5.90 0.90 1.35 2.65 3.90
5 2.90 3.60 6.50 9.70 1.95 2.40 4.35 6.50
6 4.00 5.00 10.5 16.0 2.70 3.35 7.00 10.5
8 7.40 10.0 21.5 33.5 4.90 6.70 14.5 22.5
10 13.6 16.8 38.5 52.5 9.10 11.2 25.6 35.0
12 23.4 27.0 59.0 79.0 15.6 18.0 39.5 53.0
14 29.0 35.0 70.0 94.0 19.3 23.5 47.0 63.0
16 41.3 47.0 95.0 125 27.5 31.5 63.5 84.0
18 51.8 59.0 120 158 34.5 39.5 80.0 105
20 73.0 85.0 146 194 49.0 57.0 98.0 129
24 122 140 210 282 82.0 94.0 140 188
Approximate weights in kg, density 8 kg/dm3
