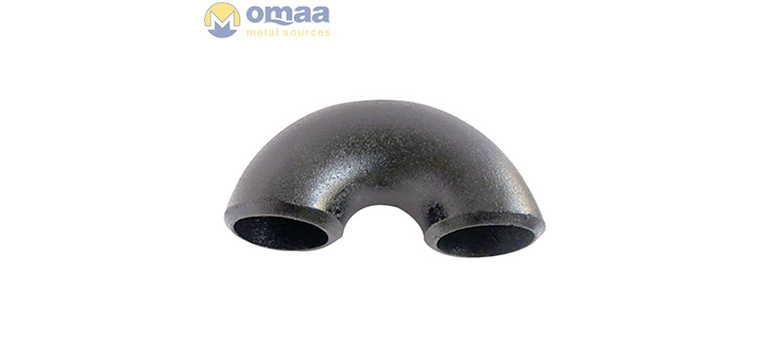

180 Degree Elbow Buttweld Fitting

Omaa Metal Sources is most important Stainless Steel 180 Degree Elbow manufacturers in India.. We trade 317 SS 180 Degree Short Radius Elbow, ASME B16.9 180 Degree Weld Elbow, ASTM A234 WP5 180 Degree Weld Elbow and ANSI B16.9 180 Deg Pipe Elbow at unassuming rate taking into account sensible worker hours in India and uncommon deftly of remarkable Carbon Steel 180 Degree Reducing Elbow, most ideal circumstance, cost open in Mumbai, India. Omaa Metal Sources is most prominent manufacturer of A234 Gr WPB 180 Deg Elbow grasped by Saudi Aramco. We keep up most essential nimbly of ASME B16.9 180 Degree Elbow.Omaa Metal Sources stock most expansive degree of ASME SA403 WP304 180 Degree Reducing Elbow, SCH 80 180 Degree Elbow in different sizes.

180 Degree Elbow,180 Degree Elbow Manufacturers, 180 Degree Elbow Exporters, 180 Degree Elbow Suppliers, 180 Degree Elbow Stockists,180 Degree Elbow Buttweld Fittings Manufacturers, 180 Degree Elbow Buttweld Fittings Exporters, 180 Degree Elbow Buttweld Fitting Suppliers, 180 Degree Elbow Buttweld Fitting Stockists.

Awesome Image

180 Degree Elbow Buttweld Fitting Manufacturers in Mumbai, 180 Degree Elbow Buttweld Fitting Exporters in Mumbai, 180 Degree Elbow Buttweld Fitting Suppliers in Mumbai, 180 Degree Elbow Buttweld Fitting Stockists in Mumbai.

Distributer and examiner of 180 Degree Elbow Fitting, most ideal circumstance, cost in India, look at our value once-over of Carbon Steel 180 Degree Reducing Elbow including Stainless Steel 180 Degree Elbow, Alloy Steel 180 Deg Elbow and Inconel 601 180 Degree Reducing Elbow.

is driving providers and wholesalers of ASME B16.9 180 Deg Elbow to Italy, Qatar, Indonesia,Canada, Egypt, UK, Singapore, Australia, Turkey, Russia, Thailand, UAE, Iran, Malaysia, Kuwait, USA, France, Germany, Israel, Sweden, Oman, Bahrain, Sri Lanka and Saudi Arabia. You can mail to sales@steelmarts.com for 304L Stainless steel 180 Degree Weld Elbow to get all sizes, most ideal circumstance, cost.

We are possible go-between and provider of Stainless Steel 180 Degree Elbow, most ideal circumstance, cost as we are one of the best provider and vender of Carbon Steel 180 Degree Reducing Elbow in India. We have our stocking sellers in Delhi, Bangalore, Surat, (Gujarat), Hyderabad, Pune (Maharashtra) and Chennai in Tamil Nadu. Check once our Nickel 201 180 Degree Pipe Elbow cost before purchasing ASME B16.9 180 Degree Weld Elbow from India or China. in like way mail for our live smoothly of 180 Degree Elbow Fitting to check types and sizes with our prepared stock we can give you best cost of MSS SP43 180 Deg Elbow.

The Stainless Steel 180 degree Elbow are utilized for accomplice lines of various assessments and find wide applications in different designed substances, headway associations, paper, concrete and vessel creators. We have gotten a handle on cutting edge creation apparatus to make our ASME B16.9 180 degree Elbow(1D D711.2～D1219.2), which can improve thing quality, yet besides spare crude materials.

Specification of 180 Degree Elbow

Specifications 180 Degree Elbow
180 Degree Weld Elbow Pipe Fittings size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
180 Degree Reducing Elbow Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
180 Degree Pipe Elbow Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
180 Degree Weld Elbow Types Seamless / ERW / Welded / Fabricated Pipe Fittings
180 Degree Pipe Elbow Type DN15-DN1200
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
180 Degree Reducing Elbow Fittings Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
180 Degree Weld Elbow Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for 180 Degree Elbow
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Application
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • ASME B16.9 Schedule 10 180 Degree Elbow are an economical alternative for lower-pressure applications.
  • ANSI B16.9 Schedule 40 180 Degree Elbow have a thicker wall for higher-pressure applications.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Material of 180 Degree Elbow

Prestige quality 180 Degree Reducing Elbow manufacturers in India offer these Carbon Steel 180 Degree Pipe Elbow in DIN, EN, BS, ISO, JIS or ANSI standard.

Carbon Steel 180 Degree Elbow
  • ASTM A234 WPB 180 Degree Elbow
  • ASTM A420 WPL6 180 Degree Reducing Elbow
  • WPHY 42 180 Degree Pipe Elbow
  • WPHY 52 180 Degree Reducing Elbow
  • WPHY 60 180 Degree Weld Elbow
  • WPHY 65 180 Degree Weld Elbow
  • WPHY 70 180 Degree Pipe Elbow
Stainless Steel 180 Degree Elbow
  • ASTM A403 WP304 180 Degree Reducing Elbow
  • ASTM A403 WP304L 180 Degree Weld Elbow
  • ASTM A403 WP316 180 Degree Reducing Elbow
  • ASTM A403 WP316L 180 Degree Reducing Elbow
  • ASTM A403 WP317 180 Degree Weld Elbow
  • ASTM A403 WP317L 180 Degree Pipe Elbow
  • ASTM A403 WP321 180 Degree Reducing Elbow
  • ASTM A403 WP321H 180 Degree Weld Elbow
  • ASTM A403 WP347 180 Degree Elbow
  • ASTM A403 WP347H 180 Degree Pipe Elbow
Alloy Steel 180 Degree Reducing Elbow
  • ASTM A234 WP5 180 Degree Weld Elbow
  • ASTM A234 WP9 180 Degree Reducing Elbow
  • ASTM A234 WP11 180 Degree Elbow
  • ASTM A234 WP22 180 Degree Weld Elbow
  • ASTM A234 WP91 180 Degree Reducing Elbow
Inconel 180 Degree Weld Elbow
  • Inconel 600 180 Degree Reducing Elbow
  • Inconel 601 180 Degree Reducing Elbow
  • Inconel 625 180 Degree Pipe Elbow
  • Inconel 718 180 Degree Pipe Elbow
  • Inconel x750 180 Degree Elbow
Copper 180 Degree Reducing Elbow T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel 180 Degree Pipe Elbow Copper Nickel 90/10 (C70600 ) 180 Degree Reducing Elbow, Cupro Nickel 70/30 (C71500) 180 Degree Elbow, UNS C71640 180 Degree Reducing Elbow
Brass 180 Degree Pipe Elbow 3602 / 2604 / H59 / H62 / etc.
Hastelloy 180 Degree Weld Elbow Hastelloy C276 (UNS N10276) 180 Degree Elbow, C22 (UNS N06022) 180 Degree Reducing Elbow, C4 180 Degree Elbow, C2000 180 Degree Weld Elbow, B2 180 Degree Reducing Elbow, B3 180 Degree Elbow, X 180 Degree Pipe Elbow
Monel 180 Degree Weld Elbow Monel 400 (UNS No. N04400) 180 Degree Elbow, Monel 500 (UNS No. N05500) 180 Degree Weld Elbow
Alloy 20 180 Degree Reducing Elbow Carpenter® 20 Alloy 180 Degree Weld Elbow, Alloy 20Cb-3 180 Degree Pipe Elbow
Aluminium 180 Degree Weld Elbow 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel 180 Degree Pipe Elbow Nickel 200 180 Degree Elbow, Nickel 201 180 Degree Pipe Elbow
Duplex 180 Degree Weld Elbow S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex 180 Degree Elbow S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy 180 Degree Reducing Elbow Incoloy 800 180 Degree Pipe Elbow, Incoloy 800H 180 Degree Elbow, Incoloy 800HT (UNS N08800) 180 Degree Weld Elbow, Incoloy 825 (UNS N08825) 180 Degree Pipe Elbow
254 Smo 180 Degree Reducing Elbow SMO 254/6Mo 180 Degree Reducing Elbow, UNS S31254 180 Degree Elbow, DIN 1.4547 180 Degree Weld Elbow
Nimonic 180 Degree Weld Elbow Nimonic 75 180 Degree Elbow, Nimonic 80A 180 Degree Elbow, Nimonic 90 180 Degree Pipe Elbow
Other 180 Degree Pipe Elbow material Tin bronze 180 Degree Weld Elbow, Alumunum bronze 180 Degree Weld Elbow, Lead bronze 180 Degree Weld Elbow
Titanium 180 Degree Pipe Elbow
  • ASTM B381 Titanium Gr. 1 180 Degree Reducing Elbow
  • ASTM B381 Titanium Gr. 2 180 Degree Weld Elbow
  • ASTM B381 Titanium Gr. 4 180 Degree Weld Elbow
  • ASTM B381 Titanium Gr. 5 180 Degree Elbow
  • ASTM B381 Titanium Gr. 7 180 Degree Pipe Elbow

ASTM Specification of 180 Degree Elbow

  •  Carbon Steel 180 Degree Weld Elbow
    •  ASTM A234 WPB 180 Degree Reducing Elbow
    •  ASTM A420 WPL6 180 Degree Pipe Elbow
  •  Alloy Steel High-Temp 180 Degree Weld Elbow
    •  ASTM A234 WP5 180 Degree Reducing Elbow
    •  ASTM A234 WP11 180 Degree Pipe Elbow
    •  ASTM A234 WP9 180 Degree Pipe Elbow
    •  ASTM A234 WP22 180 Degree Reducing Elbow
    •  ASTM A234 WP91 180 Degree Elbow
  •  Austenitic Stainless Steel 180 Degree Elbow
    •  ASTM A403 Gr WP304 180 Degree Weld Elbow
    •  ASTM A403 Gr WP316 180 Degree Pipe Elbow
    •  ASTM A403 Gr WP321 180 Degree Elbow
    •  ASTM A403 Gr WP347 180 Degree Pipe Elbow
    •  ASTM A403 Gr WP304L 180 Degree Reducing Elbow
    •  ASTM A403 Gr WP316L 180 Degree Pipe Elbow
    •  ASTM A403 Gr WP317 180 Degree Pipe Elbow
    •  ASTM A403 Gr WP317L 180 Degree Weld Elbow
    •  ASTM A403 Gr WP321 180 Degree Weld Elbow
    •  ASTM A403 Gr WP310 180 Degree Pipe Elbow
    •  ASTM A403 Gr WP347 180 Degree Reducing Elbow
  •  Nickel Alloy 180 Degree Weld Elbow
    •  ASTM B564
    •  astm b564 uns n06600
    •  astm b564 uns n06625
    •  astm b564 uns no4400
    •  astm b564 uns n08810
    •  astm b564 uns n08811
    •  astm b564 uns n08825
    •  astm b564 uns n04400
    •  astm b564 uns n10276
    •  astm b564 uns n10665

Dimensions of 180 Degree Reducing Elbow

ASME B16.9 180 Degree Long Radius Elbow Manufacturer
Nom.
Pipe
Size
Pipe
Sched.
or No.
Center-
to-Center
Dimen.
Back-
to-
Face
Outside
Dia.
Inside
Dia.
Wall
Thick.
Approx.
Weight
(lb.)
H J OD ID T
STANDARD WEIGHT
1/2 40 3 1 7/8 0.840 0.622 0.109 0.3
3/4 40 2 1/2 1 11/16 1.050 0.824 0.113 0.3
1 40 3 2 3/16 1.315 1.049 0.133 0.7
1 1/4 40 3 3/4 2 3/4 1.660 1.380 0.140 1
1 1/2 40 4 1/2 3 1/4 1.900 1.610 0.145 1.5
2 40 6 4 3/16 2.375 2.067 0.154 3
2 1/2 40 7 1/2 5 3/16 2.875 2.469 0.203 6
3 40 9 6 1/4 3.500 3.068 0.216 9
3 1/2 40 10 1/2 7 1/4 4.000 3.548 0.226 12
4 40 12 8 1/4 4.500 4.026 0.237 17
5 40 15 10 5/16 5.563 5.047 0.258 28
6 40 18 12 5/16 6.625 6.065 0.280 46
8 40 24 16 5/16 8.625 7.981 0.322 90
10 40 30 20 3/8 10.750 10.020 0.365 156
12 – 36 24 3/8 12.750 12.000 0.375 236
14 30 42 28 14.000 13.250 0.375 294
16 30 48 32 16.000 15.250 0.375 404
18 – 54 36 18.000 17.250 0.375 512
20 20 60 40 20.000 19.250 0.375 617
24 20 72 48 24.000 23.250 0.375 886
EXTRA STRONG
1/2 80 3 1 7/8 0.840 0.546 0.147 0.5
3/4 80 2 1/2 1 11/16 1.050 0.742 0.154 0.5
1 80 3 2 3/16 1.315 0.957 0.179 1
1 1/4 80 3 3/4 2 3/4 1.660 1.278 0.191 1.5
1 1/2 80 4 1/2 3 1/4 1.900 1.500 0.200 2
2 80 6 4 3/16 2.375 1.939 0.218 4
2 1/2 80 7 1/2 5 3/16 2.875 2.323 0.276 7.5
3 80 9 6 1/4 3.500 2.900 0.300 12
3 1/2 80 10 1/2 7 1/4 4.000 3.364 0.318 17
4 80 12 8 1/4 4.500 3.826 0.337 23
5 80 15 10 5/16 5.563 4.813 0.375 40
6 80 18 12 5/16 6.625 5.761 0.432 67
8 80 24 16 5/16 8.625 7.625 0.500 138
10 60 30 20 3/8 10.750 9.750 0.500 215
12 – 36 24 3/8 12.750 11.750 0.500 300
14 – 42 28 14.000 13.000 0.500 376
16 40 48 32 16.000 15.000 0.500 524
18 – 54 36 18.000 17.000 0.500 676
20 30 60 40 20.000 19.000 0.500 824
24 – 72 48 24.000 20.000 0.500 1183

Weight Chart Of 180 Degree Pipe Elbow

WEIGHTS OF FITTINGS
NPS
inches		 ELBOWS
LR 90°		 ELBOWS
SR 90°
Sch.
5S		 Sch.
10S		 Sch.
40S		 Sch.
80S		 Sch.
5S		 Sch.
10S		 Sch.
40S		 Sch.
80S
1/2 0.05 0.06 0.08 0.10 0.03 0.04 0.05 0.07
3/4 0.06 0.07 0.09 0.11 0.04 0.05 0.06 0.07
1 0.09 0.15 0.18 0.20 0.06 0.10 0.12 0.13
1 1/4 0.13 0.20 0.25 0.35 0.09 0.13 0.17 0.12
1 1/2 0.18 0.30 0.40 0.50 0.12 0.20 0.27 0.33
2 0.30 0.50 0.70 0.90 0.20 0.33 0.47 0.60
2 1/2 0.60 0.85 1.35 1.80 0.40 0.60 0.90 1.20
3 0.90 1.30 2.00 2.90 0.60 0.90 1.35 1.90
4 1.40 2.00 4.00 5.90 0.90 1.35 2.65 3.90
5 2.90 3.60 6.50 9.70 1.95 2.40 4.35 6.50
6 4.00 5.00 10.5 16.0 2.70 3.35 7.00 10.5
8 7.40 10.0 21.5 33.5 4.90 6.70 14.5 22.5
10 13.6 16.8 38.5 52.5 9.10 11.2 25.6 35.0
12 23.4 27.0 59.0 79.0 15.6 18.0 39.5 53.0
14 29.0 35.0 70.0 94.0 19.3 23.5 47.0 63.0
16 41.3 47.0 95.0 125 27.5 31.5 63.5 84.0
18 51.8 59.0 120 158 34.5 39.5 80.0 105
20 73.0 85.0 146 194 49.0 57.0 98.0 129
24 122 140 210 282 82.0 94.0 140 188
Approximate weights in kg, density 8 kg/dm3
