Omaa Metal Sources is perceptible ASME B16.9 Cap creators in India. We are broker and Supplierof Stainless Steel Pipe Cap, B16.9 Seamless Pipe End Cap in various sizes. We can deftly ANSI B16.9 cap, most ideal situation, cost as we are a boss among other supplier and administrator of ANSI B16.9 Pipe Cap Fittings in India.

Pipe Cap,Pipe Cap Manufacturers, Pipe Cap Exporters, Pipe Cap Suppliers, Pipe Cap Stockists,Pipe Cap Buttweld Fittings Manufacturers, Pipe Cap Buttweld Fittings Exporters, Pipe Cap Buttweld Fitting Suppliers, Pipe Cap Buttweld Fitting Stockists.

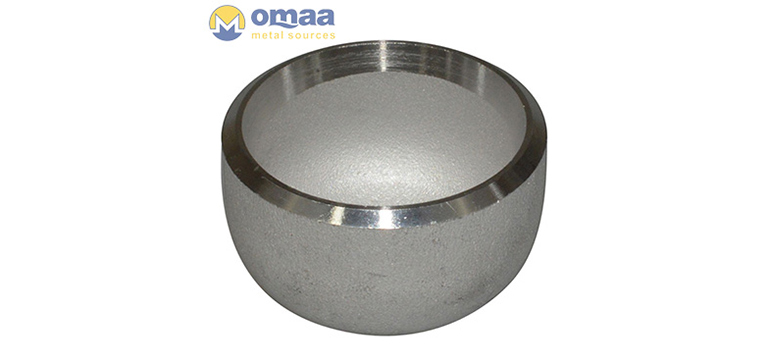

Awesome Image

Omaa Metal Sources has most essential stock to enough ASME B16.9 end cap to Iran, Israel, Singapore, Germany, Oman, Russia, Turkey, UK, Italy, Australia, USA, France, Kuwait, Canada, Sweden, UAE, Sri Lanka, Bahrain, Saudi Arabia, Thailand, Malaysia, Indonesia, Egypt, Qatar. We make ASME B16.9 pipe cap, ANSI B16.9 Pipe Cap Fittings and Carbon Steel End Cap at Lowest Possible Price due to reasonable laborer hours in India and open heap of dumbfounding SS End Caps, most ideal situation, cost available in Mumbai, India. We are stacking B16.9 Buttweld End Cap.

Omaa Metal Sources, is a manufacturer of ASME B16.9 Cap and supplies splendid B16.9 Buttweld End Cap offers you the most amazing costs inside the turn of events. The ANSI B16.9 Pipe Cap Fittings are made in all standard assessments. Treated Steel Pipe Cap are endeavored and surrendered for quality, precision, and precision. ANSI B16.9 cap could be such a line fitting which covers the fruition of a chamber. Since it may have female strings, by then it can change into the perfection of this chamber. Besides, it may be welded on to advance toward the pinnacle of the line.

We can nearly give free occasion of ANSI B16.9 Pipe Cap Fittings,Omaa Metal Sources is having our Dealer and Distributor in Jaipur, Rajkot, Rajasthan, Indore, Bangalore, Khopoli, Nagpur, Aurangabad, Ghaziabad, Faridabad, Karnataka, Uttar Pradesh, Madhya Pradesh, Haryana, Gurgaon, Maharashtra, Tamil Nadu, Ludhiana, Karnataka, Chhattisgarh, Kolkata, Gujarat, Delhi, Ahmedabad, Chennai, Raipur, Pune, Bhosari, Vadodara, Punjab, West Bengal, Kolhapur. So if you are looking for best expense of Carbon Steel End Cap or ASME B16.9 end cap, ASME B16.9 pipe cap near you with briefest time movement or free occasion of ANSI B16.9 cap. Call us or mail to sales@omaaflange.com for Latest and Updated respect List of ASME B16.9 Cap and B16.9 Buttweld End Cap.

Line covers go presumably as watched contraption and are relied upon to ensure about line most elevated places of different shapes. The head clarification of utilizing ASME B16.9 Pipe Caps is to waterproof the affiliations. They are too used to even think about evening consider evening examine evening consider evening contemplate night think as for closing the closes of water filled or pneumatic channels and chambers. Set Steel Pipe Caps are utilized inside the lines contraption of private, business and mechanical water deftly lines, device and coordinating hardware, etc They are other than fitted on water siphon lines with the sole clarification of taking out air blocks.

Pipe Cap Manufacturers in Mumbai, Pipe Cap Exporters in Mumbai, Pipe Cap Suppliers in Mumbai, Pipe Cap Stockists in Mumbai.

Specification of Buttweld Pipe Cap

Specifications Cap
Pipe End Cap Pipe Fittings size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
Pipe Cap Fittings Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Bw Pipe Cap Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Cap Bw Sch 80 Types Seamless / ERW / Welded / Fabricated Pipe Fittings
Bw Cap Type DN15-DN1200
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Pipe Cap Fittings Fittings Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
Cap Bw Sch 80 Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for Pipe Cap
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Application
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • ASME B16.9 Schedule 10 Pipe Cap are an economical alternative for lower-pressure applications.
  • ANSI B16.9 Schedule 40 Pipe Cap have a thicker wall for higher-pressure applications.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Material of Pipe Cap Fitting

Prestige quality Pipe Cap manufacturers in India offer these Carbon Steel Bw Pipe Cap in DIN, EN, BS, ISO, JIS or ANSI standard.

Carbon Steel Pipe Cap
  • ASTM A234 WPB
  • ASTM A420 WPL6
  • DIN 1.0402
  • DIN 1.0460
  • DIN 1.0619
  • ASTM A234 WPB
  • ASTM A420 WPL6
  • WPHY 42
  • WPHY 52
  • WPHY 60
Stainless Steel Cap
  • ASTM A403 WP304
  • ASTM A403 WP304L
  • ASTM A403 WP316
  • ASTM A403 WP316L
  • ASTM A403 WP317
  • ASTM A403 WP317L
  • ASTM A403 WP321
  • ASTM A403 WP321H
  • ASTM A403 WP347
  • ASTM A403 WP347H
Alloy Steel Pipe Cap
  • ASTM A234 WP5
  • ASTM A234 WP9
  • ASTM A234 WP11
  • ASTM A234 WP22
  • ASTM A234 WP91
Inconel Pipe End Cap
  • Inconel 600
  • Inconel 601
  • Inconel 625
  • Inconel 718
  • Inconel x750
Copper Pipe Cap Fittings T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Bw Pipe Cap Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Brass Bw Cap 3602 / 2604 / H59 / H62 / etc.
Hastelloy Cap Bw Sch 80 Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X
Monel Cap Bw Sch 80 Monel 400 (UNS No. N04400) Cap, Monel 500 (UNS No. N05500) Pipe End Cap
Alloy 20 Pipe Cap Fittings Carpenter® 20 Alloy Cap Bw Sch 80, Alloy 20Cb-3 Bw Pipe Cap
Aluminium Pipe End Cap 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel Bw Pipe Cap Nickel 200 Cap, Nickel 201 Bw Cap
Duplex Cap Bw Sch 80 S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Cap S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Pipe Cap Fittings Incoloy 800 Bw Cap, Incoloy 800H Cap, Incoloy 800HT (UNS N08800) Pipe End Cap, Incoloy 825 (UNS N08825) Bw Pipe Cap
254 Smo Pipe Cap SMO 254/6Mo Pipe Cap Fittings, UNS S31254 Cap, DIN 1.4547 Pipe End Cap
Nimonic Cap Bw Sch 80 Nimonic 75 Cap, Nimonic 80A Cap, Nimonic 90 Bw Pipe Cap
Other Bw Cap material Tin bronze Pipe End Cap, Alumunum bronze Cap Bw Sch 80, Lead bronze Cap Bw Sch 80
Titanium Bw Pipe Cap
  • ASTM B381 Titanium Gr. 1 Pipe Cap
  • ASTM B381 Titanium Gr. 2 Cap Bw Sch 80
  • ASTM B381 Titanium Gr. 4 Pipe End Cap
  • ASTM B381 Titanium Gr. 5 Cap
  • ASTM B381 Titanium Gr. 7 Bw Pipe Cap

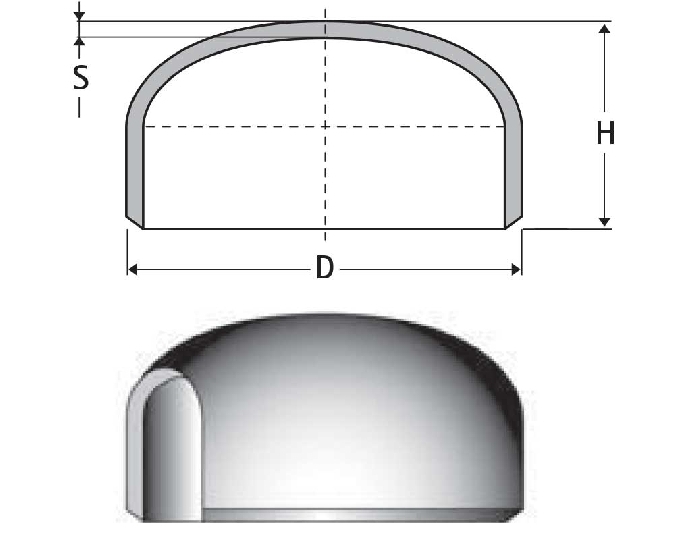

Dimensions of Pipe Cap Fittings

ASME B16.9 End Cap Manufacturer In India
Code FOSTD - FOXS Nominal Diameter  Wall Th. S mm Height H mm Theoretical Weight kg
Poll. D mm STD XS STD XS
5 1/2 21.34 2.77 3.73 25.4 0.03 -
7 3/4 26.67 2.87 3.91 25.4 0.06 0.08
10 1 33.40 3.38 4.55 38.1 0.10 0.14
12 1'' 1/4 42.16 3.56 4.85 38.1 0.14 0.18
15 1'' 1/2 48.26 3.68 5.08 38.1 0.16 0.23
20 2 60.32 3.91 5.54 38.1 0.27 0.32
25 2'' 1/2 73.02 5.16 7.01 38.1 0.41 0.45
30 3 88.90 5.49 7.62 50.8 0.65 0.82
40 4 114.30 6.02 8.56 63.5 1.15 1.54
50 5 141.30 6.55 9.52 76.2 1.90 2.59
60 6 168.27 7.11 10.97 88.9 2.92 4.10
80 8 219.07 8.18 12.70 101.6 5.07 7.3
100 10 273 9.27 12.70 127 9.1 12.0
120 12 323.9 9.52 12.70 152 13.6 17.0
140 14 355.6 9.52 12.70 165 14.42 19.8
160 16 406.4 9.52 12.70 178 18.86 25.89
180 18 457.2 9.52 12.70 203 27.65 36.52
200 20 508 9.52 12.70 229 35.60 46.98
240 24 609.6 9.52 12.70 267 46 64.60

Weight Chart Of Bw Pipe Cap

NPS STD XS SCH 160 XXS
1 0.09 0.14 0.18 0.23
1.1/4 0.14 0.18 0.23 0.34
1.1/2 0.18 0.23 0.27 0.41
2 0.27 0.34 0.57 0.68
2.1/2 0.41 0.45 0.79 1.13
3 0.68 0.79 1.32 1.81
3.1/2 0.91 1.13 2.72
4 1.13 1.36 2.68 3.4
5 2.04 2.49 4.54 5.44
6 2.95 4.08 6.8 8.16
8 5.44 7.26 14.06 13.61
10 9.07 11.34 25.85
12 13.61 16.33 43.09
14 16.33 20.41
16 18.14 24.49
18 24.49 32.66
20 34.02 39.01
22 42.64 56.7
24 43.54 58.97
26 53.98 72.12
30 78.02 103.87
NPS STD XS SCH 160 XXS

ASTM Specification of Pipe Cap

  •  Carbon Steel Pipe End Cap
    •  ASTM A234 WPB Pipe Cap Fittings
    •  ASTM A420 WPL6 Bw Cap
  •  Alloy Steel High-Temp Cap Bw Sch 80
    •  ASTM A234 WP5 Pipe Cap Fittings
    •  ASTM A234 WP11 Bw Pipe Cap
    •  ASTM A234 WP9 Bw Cap
    •  ASTM A234 WP22 Pipe Cap
    •  ASTM A234 WP91 Cap
  •  Austenitic Stainless Steel Cap
    •  ASTM A403 Gr F304 Pipe End Cap
    •  ASTM A403 Gr F316 Bw Cap
    •  ASTM A403 Gr F321 Cap
    •  ASTM A403 Gr F347 Bw Pipe Cap
    •  ASTM A403 Gr F304L Pipe Cap
    •  ASTM A403 Gr F316L Bw Pipe Cap
    •  ASTM A403 Gr F317 Bw Cap
    •  ASTM A403 Gr F317L Cap Bw Sch 80
    •  ASTM A403 Gr F321 Pipe End Cap
    •  ASTM A403 Gr F310 Bw Pipe Cap
    •  ASTM A403 Gr 347 Pipe Cap Fittings
  •  Nickel Alloy Pipe End Cap
    •  ASTM B564 Pipe Cap
    •  astm b564 uns n06600 Pipe Cap Fittings
    •  astm b564 uns n06625 Cap
    •  astm b564 uns no4400 Cap Bw Sch 80
    •  astm b564 uns n08810 Bw Cap
    •  astm b564 uns n08811 Pipe End Cap
    •  astm b564 uns n08825 Pipe Cap Fittings
    •  astm b564 uns n04400 Pipe Cap
    •  astm b564 uns n10276 Cap
    •  astm b564 uns n10665 Cap Bw Sch 80
