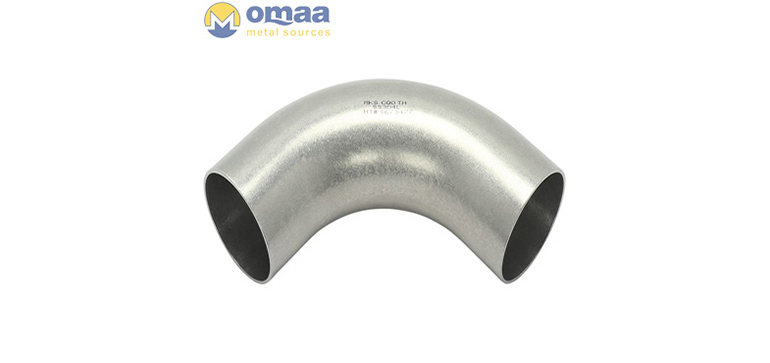

Long Radius Elbow makers in India. We are vender and distributer of SS Long Radius Reducing Elbow, MSS SP43 Long Radius Elbow, Hastelloy Long Radius Bend Elbow and Inconel 718 LR Pipe Elbow at Factory Price considering sensible worker hours in India and amazing wellspring of sensational ASME B16.9 LR Pipe Elbow, most ideal circumstance, cost open in Mumbai, India. Omaa Metal Sources is solid maker of ASME B16.9 LR Pipe Elbow demanded by Saudi Aramco. We are budgetary expert of 316 SS LR Elbow.Omaa Metal Sources is most noteworthy distributer of ANSI B16.9 Long Radius Bend Elbow, Carbon Steel Long Radius Reducing Elbow in different sizes.

Long Radius Elbow,Long Radius Elbow Manufacturers, Long Radius Elbow Exporters, Long Radius Elbow Suppliers, Long Radius Elbow Stockists,Long Radius Elbow Buttweld Fittings Manufacturers, Long Radius Elbow Buttweld Fittings Exporters, Long Radius Elbow Buttweld Fitting Suppliers, Long Radius Elbow Buttweld Fitting Stockists.

Awesome Image

Omaa Metal Sources, We have a prepared stock to purchase Alloy Steel Long Radius Elbow, most ideal circumstance, cost in India, check our stock cost of A234 Gr WPB Long Radius Elbow including Alloy steel 3/4″Long Radius Elbow, ASTM A234 WPB Long Radius Elbow and Carbon Steel Long Radius Pipe Elbow. You can mail to sales@steelmarts.com for Stainless steel Long Radius Elbow to get sensible cost.

Omaa Metal Sources is most imperative providers SCH 80 Long Radius Elbow to UK, France, Egypt, Australia, Italy, Bahrain, Kuwait, Thailand, Russia, Turkey,Canada, Indonesia, Malaysia, Singapore, UAE, Iran, Qatar, Sweden, USA, Israel, Germany, Oman, Sri Lanka and Saudi Arabia.

We are most significant provider of Stainless steel Long Radius Elbow, most ideal circumstance, cost as we are one of the best provider and middle person of ANSI B16.9 Long Radius Bend Elbow in India. We have our stocking wholesalers in Delhi, Bangalore, Surat, (Gujarat), Hyderabad, Pune (Maharashtra) and Chennai in Tamil Nadu. Check once our ASTM A234 WP9 LR Elbow cost before purchasing Carbon Steel Long Radius Reducing Elbow from India or China. moreover mail for our live pile of ASME B16.9 LR Pipe Elbow to check types and sizes with our prepared stock we can give you best cost of LR Pipe Elbow.

Hardened steel Long Radius Elbow focus line of one end to the contrary face which is known as the "middle to face" parcel and is basically indistinguishable from the range through which the elbow is bowed. ASME B16.9 LR Pipe Elbow focus to challenge division for a "long" clear elbow, the Carbon steel LR run elbows have a middle to end segment that is 1.5 occasions the NPS in inches (R = 1.5D), on the off chance that it is more than 1.5 occasions, it is a breeze. D is the width of the elbow.

Long Radius Elbow Buttweld Fitting Manufacturers in Mumbai, Long Radius Elbow Buttweld Fitting Exporters in Mumbai, Long Radius Elbow Buttweld Fitting Suppliers in Mumbai, Long Radius Elbow Buttweld Fitting Stockists in Mumbai.

Specification of Long Radius Elbow

Specifications Long Radius Elbow
Long Radius Weld Elbow Pipe Fittings size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
LR Elbow Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
LR Pipe Elbow Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Long Radius Bend Elbow Types Seamless / ERW / Welded / Fabricated Pipe Fittings
Long Radius Pipe Elbow Type DN15-DN1200
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
LR Elbow Fittings Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
Long Radius Bend Elbow Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for Long Radius Elbow
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Application
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • ASME B16.9 Schedule 10 Long Radius Elbow are an economical alternative for lower-pressure applications.
  • ANSI B16.9 Schedule 40 Long Radius Elbow have a thicker wall for higher-pressure applications.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Material of Long Radius Weld Elbow

Prestige quality Long Radius Reducing Elbow manufacturers in India offer these Carbon Steel LR Pipe Elbow in DIN, EN, BS, ISO, JIS or ANSI standard.

Carbon Steel Long Radius Elbow
  • ASTM A234 WPB Long Radius Elbow
  • ASTM A420 WPL6 Long Radius Reducing Elbow
  • WPHY 42 Long Radius Pipe Elbow
  • WPHY 52 LR Elbow
  • WPHY 60 Long Radius Bend Elbow
  • WPHY 65 Long Radius Weld Elbow
  • WPHY 70 LR Pipe Elbow
Stainless Steel Long Radius Elbow
  • ASTM A403 WP304 Long Radius Reducing Elbow
  • ASTM A403 WP304L Long Radius Bend Elbow
  • ASTM A403 WP316 LR Elbow
  • ASTM A403 WP316L Long Radius Reducing Elbow
  • ASTM A403 WP317 Long Radius Bend Elbow
  • ASTM A403 WP317L LR Pipe Elbow
  • ASTM A403 WP321 Long Radius Reducing Elbow
  • ASTM A403 WP321H Long Radius Weld Elbow
  • ASTM A403 WP347 Long Radius Elbow
  • ASTM A403 WP347H Long Radius Pipe Elbow
Alloy Steel Long Radius Reducing Elbow
  • ASTM A234 WP5 Long Radius Weld Elbow
  • ASTM A234 WP9 LR Elbow
  • ASTM A234 WP11 Long Radius Elbow
  • ASTM A234 WP22 Long Radius Bend Elbow
  • ASTM A234 WP91 Long Radius Reducing Elbow
Inconel Long Radius Weld Elbow
  • Inconel 600 LR Elbow
  • Inconel 601 Long Radius Reducing Elbow
  • Inconel 625 Long Radius Pipe Elbow
  • Inconel 718 LR Pipe Elbow
  • Inconel x750 Long Radius Elbow
Copper LR Elbow T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel LR Pipe Elbow Copper Nickel 90/10 (C70600 ) Long Radius Reducing Elbow, Cupro Nickel 70/30 (C71500) Long Radius Elbow, UNS C71640 LR Elbow
Brass Long Radius Pipe Elbow 3602 / 2604 / H59 / H62 / etc.
Hastelloy Long Radius Bend Elbow Hastelloy C276 (UNS N10276) Long Radius Elbow, C22 (UNS N06022) Long Radius Reducing Elbow, C4 Long Radius Elbow, C2000 Long Radius Weld Elbow, B2 LR Elbow, B3 Long Radius Elbow, X Long Radius Pipe Elbow
Monel Long Radius Bend Elbow Monel 400 (UNS No. N04400) Long Radius Elbow, Monel 500 (UNS No. N05500) Long Radius Weld Elbow
Alloy 20 LR Elbow Carpenter® 20 Alloy Long Radius Bend Elbow, Alloy 20Cb-3 LR Pipe Elbow
Aluminium Long Radius Weld Elbow 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel LR Pipe Elbow Nickel 200 Long Radius Elbow, Nickel 201 Long Radius Pipe Elbow
Duplex Long Radius Bend Elbow S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Long Radius Elbow S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy LR Elbow Incoloy 800 Long Radius Pipe Elbow, Incoloy 800H Long Radius Elbow, Incoloy 800HT (UNS N08800) Long Radius Weld Elbow, Incoloy 825 (UNS N08825) LR Pipe Elbow
254 Smo Long Radius Reducing Elbow SMO 254/6Mo LR Elbow, UNS S31254 Long Radius Elbow, DIN 1.4547 Long Radius Weld Elbow
Nimonic Long Radius Bend Elbow Nimonic 75 Long Radius Elbow, Nimonic 80A Long Radius Elbow, Nimonic 90 LR Pipe Elbow
Other Long Radius Pipe Elbow material Tin bronze Long Radius Weld Elbow, Alumunum bronze Long Radius Bend Elbow, Lead bronze Long Radius Bend Elbow
Titanium LR Pipe Elbow
  • ASTM B381 Titanium Gr. 1 Long Radius Reducing Elbow
  • ASTM B381 Titanium Gr. 2 Long Radius Bend Elbow
  • ASTM B381 Titanium Gr. 4 Long Radius Weld Elbow
  • ASTM B381 Titanium Gr. 5 Long Radius Elbow
  • ASTM B381 Titanium Gr. 7 LR Pipe Elbow

Dimensions of Long Radius Elbow

ASME B16.9 Long Radius Elbow Manufacturer
Nom.
Pipe
Size
Pipe
Sched.
or No.
Center-
to-Center
Dimen.
Back-
to-
Face
Outside
Dia.
Inside
Dia.
Wall
Thick.
Approx.
Weight
(lb.)
H J OD ID T
STANDARD WEIGHT
1/2 40 3 1 7/8 0.840 0.622 0.109 0.3
3/4 40 2 1/2 1 11/16 1.050 0.824 0.113 0.3
1 40 3 2 3/16 1.315 1.049 0.133 0.7
1 1/4 40 3 3/4 2 3/4 1.660 1.380 0.140 1
1 1/2 40 4 1/2 3 1/4 1.900 1.610 0.145 1.5
2 40 6 4 3/16 2.375 2.067 0.154 3
2 1/2 40 7 1/2 5 3/16 2.875 2.469 0.203 6
3 40 9 6 1/4 3.500 3.068 0.216 9
3 1/2 40 10 1/2 7 1/4 4.000 3.548 0.226 12
4 40 12 8 1/4 4.500 4.026 0.237 17
5 40 15 10 5/16 5.563 5.047 0.258 28
6 40 18 12 5/16 6.625 6.065 0.280 46
8 40 24 16 5/16 8.625 7.981 0.322 90
10 40 30 20 3/8 10.750 10.020 0.365 156
12 36 24 3/8 12.750 12.000 0.375 236
14 30 42 28 14.000 13.250 0.375 294
16 30 48 32 16.000 15.250 0.375 404
18 54 36 18.000 17.250 0.375 512
20 20 60 40 20.000 19.250 0.375 617
24 20 72 48 24.000 23.250 0.375 886
EXTRA STRONG
1/2 80 3 1 7/8 0.840 0.546 0.147 0.5
3/4 80 2 1/2 1 11/16 1.050 0.742 0.154 0.5
1 80 3 2 3/16 1.315 0.957 0.179 1
1 1/4 80 3 3/4 2 3/4 1.660 1.278 0.191 1.5
1 1/2 80 4 1/2 3 1/4 1.900 1.500 0.200 2
2 80 6 4 3/16 2.375 1.939 0.218 4
2 1/2 80 7 1/2 5 3/16 2.875 2.323 0.276 7.5
3 80 9 6 1/4 3.500 2.900 0.300 12
3 1/2 80 10 1/2 7 1/4 4.000 3.364 0.318 17
4 80 12 8 1/4 4.500 3.826 0.337 23
5 80 15 10 5/16 5.563 4.813 0.375 40
6 80 18 12 5/16 6.625 5.761 0.432 67
8 80 24 16 5/16 8.625 7.625 0.500 138
10 60 30 20 3/8 10.750 9.750 0.500 215
12 36 24 3/8 12.750 11.750 0.500 300
14 42 28 14.000 13.000 0.500 376
16 40 48 32 16.000 15.000 0.500 524
18 54 36 18.000 17.000 0.500 676
20 30 60 40 20.000 19.000 0.500 824
24 72 48 24.000 20.000 0.500 1183

Weight Chart Of LR Pipe Elbow

WEIGHTS OF FITTINGS
NPS
inches
ELBOWS
LR 90°
ELBOWS
SR 90°
Sch.
5S
Sch.
10S
Sch.
40S
Sch.
80S
Sch.
5S
Sch.
10S
Sch.
40S
Sch.
80S
1/2 0.05 0.06 0.08 0.10 0.03 0.04 0.05 0.07
3/4 0.06 0.07 0.09 0.11 0.04 0.05 0.06 0.07
1 0.09 0.15 0.18 0.20 0.06 0.10 0.12 0.13
1 1/4 0.13 0.20 0.25 0.35 0.09 0.13 0.17 0.12
1 1/2 0.18 0.30 0.40 0.50 0.12 0.20 0.27 0.33
2 0.30 0.50 0.70 0.90 0.20 0.33 0.47 0.60
2 1/2 0.60 0.85 1.35 1.80 0.40 0.60 0.90 1.20
3 0.90 1.30 2.00 2.90 0.60 0.90 1.35 1.90
4 1.40 2.00 4.00 5.90 0.90 1.35 2.65 3.90
5 2.90 3.60 6.50 9.70 1.95 2.40 4.35 6.50
6 4.00 5.00 10.5 16.0 2.70 3.35 7.00 10.5
8 7.40 10.0 21.5 33.5 4.90 6.70 14.5 22.5
10 13.6 16.8 38.5 52.5 9.10 11.2 25.6 35.0
12 23.4 27.0 59.0 79.0 15.6 18.0 39.5 53.0
14 29.0 35.0 70.0 94.0 19.3 23.5 47.0 63.0
16 41.3 47.0 95.0 125 27.5 31.5 63.5 84.0
18 51.8 59.0 120 158 34.5 39.5 80.0 105
20 73.0 85.0 146 194 49.0 57.0 98.0 129
24 122 140 210 282 82.0 94.0 140 188
Approximate weights in kg, density 8 kg/dm3

ASTM Specification of Long Radius Elbow

  •  Carbon Steel Long Radius Weld Elbow
    •  ASTM A234 WPB LR Elbow
    •  ASTM A420 WPL6 Long Radius Pipe Elbow
  •  Alloy Steel High-Temp Long Radius Bend Elbow
    •  ASTM A234 WP5 LR Elbow
    •  ASTM A234 WP11 LR Pipe Elbow
    •  ASTM A234 WP9 Long Radius Pipe Elbow
    •  ASTM A234 WP22 Long Radius Reducing Elbow
    •  ASTM A234 WP91 Long Radius Elbow
  •  Austenitic Stainless Steel Long Radius Elbow
    •  ASTM A403 Gr WP304 Long Radius Weld Elbow
    •  ASTM A403 Gr WP316 Long Radius Pipe Elbow
    •  ASTM A403 Gr WP321 Long Radius Elbow
    •  ASTM A403 Gr WP347 LR Pipe Elbow
    •  ASTM A403 Gr WP304L Long Radius Reducing Elbow
    •  ASTM A403 Gr WP316L LR Pipe Elbow
    •  ASTM A403 Gr WP317 Long Radius Pipe Elbow
    •  ASTM A403 Gr WP317L Long Radius Bend Elbow
    •  ASTM A403 Gr WP321 Long Radius Weld Elbow
    •  ASTM A403 Gr WP310 LR Pipe Elbow
    •  ASTM A403 Gr WP347 LR Elbow
  •  Nickel Alloy Long Radius Weld Elbow
    •  ASTM B564 Long Radius Reducing Elbow
    •  astm b564 uns n06600 LR Elbow
    •  astm b564 uns n06625 Long Radius Elbow
    •  astm b564 uns no4400 Long Radius Bend Elbow
    •  astm b564 uns n08810 Long Radius Pipe Elbow
    •  astm b564 uns n08811 Long Radius Weld Elbow
    •  astm b564 uns n08825 LR Elbow
    •  astm b564 uns n04400 Long Radius Reducing Elbow
    •  astm b564 uns n10276 Long Radius Elbow
    •  astm b564 uns n10665 Long Radius Bend Elbow
