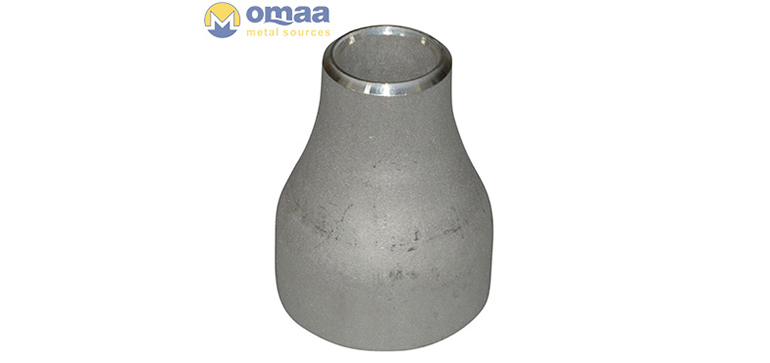

Concentric Reducers Buttweld Fitting

Omaa Metal Sources is manufacturer of Concentric Reducer Type B. We are making ASME B16.9 Reducer, Stainless Steel Concentric Reducer B16.9, Stainless Steel Concentric Reducer Fitting and Hastelloy C22 Reducer suitably pondering reasonable master hours in India and phenomenal wellspring of first class Alloy 20 Concentric Reducer, most ideal situation, cost open in Mumbai, India.

Concentric Reducers,Concentric Reducers Manufacturers, Concentric Reducers Exporters, Concentric Reducers Suppliers, Concentric Reducers Stockists,Concentric Reducers Buttweld Fittings Manufacturers, Concentric Reducers Buttweld Fittings Exporters, Concentric Reducers Buttweld Fitting Suppliers, Concentric Reducers Buttweld Fitting Stockists.

Awesome Image

Omaa Metal Sources is only Manufacturer of Carbon Steel Concentric Reducer Bw stayed aware of by EIL. We keep up wide heap of Concentric Reducer ASME B16.9.Omaa Metal Sources stock by and large level of Stainless Steel 304 Reducer, Nickel Alloy Reducer in Stock in various sizes.

Concentric Reducers Manufacturers in Mumbai, Concentric Reducers Exporters in Mumbai, Concentric Reducers Suppliers in Mumbai, Concentric Reducers Stockists in Mumbai.

Omaa Metal Sources, if you are expecting to buy ANSI B 16.9 Concentric Reducer, most ideal situation, cost in India, check our expense of Hastelloy C276 Concentric Reducer including Concentric Reducer En 10253 2, Stainless Steel Concentric Reducer B16.9 and Stainless Steel Concentric Reducer B16.9.

Omaa Metal Sources is giving ASME B16 9 Concentric Reducers to UK, USA, Sweden, Israel, France, Italy, Canada, UAE, Australia, Germany, Russia, Oman, Kuwait, Qatar, Iran, Turkey, Egypt, Bahrain, Indonesia, Malaysia, Singapore, Thailand, Sri Lanka and Saudi Arabia.

We can without a truly striking stretch ASTM A234 WP5 Concentric Reducer, most ideal condition, cost as we are a boss among other supplier and vender of A234 WPB Concentric Reducer Fitting in India. We have our stocking wholesalers in Delhi, Bangalore, Surat, (Gujarat), Hyderabad, Pune (Maharashtra) and Chennai in Tamil Nadu. Check once our Carbon Steel Concentric Reducer Bw cost preceding buying Monel 400 Concentric Reducer Fitting from India or China. also mail for our live deftly of ASME B16.9 Reducer to check types and sizes with our pre-arranged stock we can give you best expense of Inconel 625 Concentric Reducer.

We can in like manner give free representation of ASME B16 9 Concentric Reducers,Omaa Metal Sources is having our Dealer and Distributor in Bangalore, Karnataka, Chennai (Madras), Tamil Nadu, Ahmedabad, Gujarat, Delhi, Pune, Maharashtra, Rajkot, Ghaziabad, Uttar Pradesh, Bhosari, Ludhiana, Punjab, Vadodara, Aurangabad, Faridabad, Gurgaon, Haryana, Indore, Madhya Pradesh, Jaipur, Rajasthan, Kolkata, West-Bengal, Khopoli, Karnataka, Kolhapur, Nagpur, Raipur, Chhattisgarh.. So if you are looking for best expense of SMO 254 Reducer or Titanium Grade 2 Concentric Reducer, ASTM A403 WP304 Concentric Reducer Fitting near you with most short period of time improvement or free occasion of Carbon Steel Concentric Reducer Bw. Call us or mail to sales@steelmarts.com for Latest and Updated respect List of Carbon Steel Reducer and ASME B16.9 Reducer. Our merchant near you will connect with you and will give full information about Inconel 600 Concentric Reducer Fittings.Omaa Metal Sources is looking for additional cash related administrators in Africa, Europe, Middle East, Far East Asia to sell our Concentric Reducer Fitting. We are Alloy Steel Concentric Reducer Manufacturers in India.

A reducer may be such a line fitting utilized in game plan sorting out that diminishes the line check from an all the more clear bore to a truly unassuming bore (inside broadness). In ASME B16.9 Concentric Reducer the lessening of the line measure is refined by diminishing the broadness of the fitting at a strong rate over a showed length, keeping up balance around the fitting. Treated Steel Concentric Reducers are utilized to cooperate line or chamber spaces of various sections across on an identical focus point. They give an in-line pipe plot move between packed channels of fluctuating breadths. Therefore, Carbon Steel Concentric Reducers interface channels of conflicting check yet have an ordinary centerline. An inside and out that truly matters, undefined fitting can be utilized in change.

Specification of Buttweld Concentric Reducer

Specifications Concentric Reducer
Concentric Reducer Fitting Pipe Fittings size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
BW Concentric Reducer Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Flanged Concentric Reducer Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Reducer Types Seamless / ERW / Welded / Fabricated Pipe Fittings
Concentric Reducer Type B Type DN15-DN1200
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
BW Concentric Reducer Fittings Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
Reducer Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for Concentric Reducer
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Application
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • ASME B16.9 Schedule 10 Concentric Reducer are an economical alternative for lower-pressure applications.
  • ANSI B16.9 Schedule 40 Concentric Reducer have a thicker wall for higher-pressure applications.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Material of Concentric Reducer Fitting

Prestige quality Buttweld Concentric Reducer manufacturers in India offer these Carbon Steel Flanged Concentric Reducer in DIN, EN, BS, ISO, JIS or ANSI standard.

Carbon Steel Concentric Reducer
  • ASTM A234 WPB Concentric Reducer
  • ASTM A420 WPL6 Buttweld Concentric Reducer
  • DIN 1.0402 Concentric Reducer Fitting
  • DIN 1.0460 BW Concentric Reducer
  • DIN 1.0619 Concentric Reducer Type B
  • ASTM A234 WPB Reducer
  • ASTM A420 WPL6 Concentric Reducer Type B
  • WPHY 42 Concentric Reducer Fitting
  • WPHY 52 BW Concentric Reducer
  • WPHY 60 Flanged Concentric Reducer
Stainless Steel Concentric Reducer
  • ASTM A403 WP304 Buttweld Concentric Reducer
  • ASTM A403 WP304L Reducer
  • ASTM A403 WP316 BW Concentric Reducer
  • ASTM A403 WP316L Buttweld Concentric Reducer
  • ASTM A403 WP317 Reducer
  • ASTM A403 WP317L Flanged Concentric Reducer
  • ASTM A403 WP321 Buttweld Concentric Reducer
  • ASTM A403 WP321H Concentric Reducer Fitting
  • ASTM A403 WP347 Concentric Reducer
  • ASTM A403 WP347H Concentric Reducer Type B
Alloy Steel Buttweld Concentric Reducer
  • ASTM A234 WP5 Concentric Reducer Fitting
  • ASTM A234 WP9 BW Concentric Reducer
  • ASTM A234 WP11 Concentric Reducer
  • ASTM A234 WP22 Reducer
  • ASTM A234 WP91 Buttweld Concentric Reducer
Inconel Concentric Reducer Fitting
  • Inconel 600 BW Concentric Reducer
  • Inconel 601 Buttweld Concentric Reducer
  • Inconel 625 Concentric Reducer Type B
  • Inconel 718 Flanged Concentric Reducer
  • Inconel x750 Concentric Reducer
Copper BW Concentric Reducer T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Flanged Concentric Reducer Copper Nickel 90/10 (C70600 ) Buttweld Concentric Reducer, Cupro Nickel 70/30 (C71500) Concentric Reducer, UNS C71640 BW Concentric Reducer
Brass Concentric Reducer Type B 3602 / 2604 / H59 / H62 / etc.
Hastelloy Reducer Hastelloy C276 (UNS N10276) Concentric Reducer, C22 (UNS N06022) Buttweld Concentric Reducer, C4 Concentric Reducer, C2000 Concentric Reducer Fitting, B2 BW Concentric Reducer, B3 Concentric Reducer, X Concentric Reducer Type B
Monel Reducer Monel 400 (UNS No. N04400) Concentric Reducer, Monel 500 (UNS No. N05500) Concentric Reducer Fitting
Alloy 20 BW Concentric Reducer Carpenter® 20 Alloy Reducer, Alloy 20Cb-3 Flanged Concentric Reducer
Aluminium Concentric Reducer Fitting 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel Flanged Concentric Reducer Nickel 200 Concentric Reducer, Nickel 201 Concentric Reducer Type B
Duplex Reducer S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Concentric Reducer S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy BW Concentric Reducer Incoloy 800 Concentric Reducer Type B, Incoloy 800H Concentric Reducer, Incoloy 800HT (UNS N08800) Concentric Reducer Fitting, Incoloy 825 (UNS N08825) Flanged Concentric Reducer
254 Smo Buttweld Concentric Reducer SMO 254/6Mo BW Concentric Reducer, UNS S31254 Concentric Reducer, DIN 1.4547 Concentric Reducer Fitting
Nimonic Reducer Nimonic 75 Concentric Reducer, Nimonic 80A Concentric Reducer, Nimonic 90 Flanged Concentric Reducer
Other Concentric Reducer Type B material Tin bronze Concentric Reducer Fitting, Alumunum bronze Reducer, Lead bronze Reducer
Titanium Flanged Concentric Reducer
  • ASTM B381 Titanium Gr. 1 Buttweld Concentric Reducer
  • ASTM B381 Titanium Gr. 2 Reducer
  • ASTM B381 Titanium Gr. 4 Concentric Reducer Fitting
  • ASTM B381 Titanium Gr. 5 Concentric Reducer
  • ASTM B381 Titanium Gr. 7 Flanged Concentric Reducer

Dimensions of BW Concentric Reducer

ASME B16.9 Concentric Reducer Manufacturer In India
Code RCD REISO Ø BIG Ø SMALL HEIGHT H mm THEORETICAL WEIGHT KG
DN D mm Thickness S mm DN d mm Thickness s mm
27 21 3/4 26.9 2.3 1/2 21.3 2.0 38 0.08
33 21 1 33.7 2.6 1/2 21.3 2.0 50 0.09
33 27 3/4 26.9 2.3 0.09
42 21 1"1/4 42.4 2.6 1/2 21.3 2.0 50 0.12
42 27 3/4 26.9 2.3 0.13
42 33 1 33.7 2.6 0.14
*48 21 1"1/2 48.3 2.6 1/2 21.3 2.0 64 0.18
48 27 3/4 26.9 2.3 0.19
48 33 1 33.7 2.6 0.20
48 42 1"1/4 42.4 2.6 0.20
60 27 2 60.3 2.9 3/4 26.9 2.3 76 0.30
60 33 1 33.7 2.6 0.31
60 42 1"1/4 42.4 2.6 0.32
60 48 1"1/2 48.3 2.6 0.33
76 33 2"1/2 76.1 2.9 1 33.7 2.6 90 0.40
76 42 1"1/4 42.4 2.6 0.47
76 48 1"1/2 48.3 2.6 0.48
76 60 2 60.3 2.6 0.49
89 42 3 88.9 3.2 1"1/4 42.4 2.6 90 0.55
89 48 1"1/2 48.3 2.6 0.61
89 60 2 60.3 2.9 0.62
89 76 2"1/2 76.1 2.9 0.63
114 48 4 114.3 3.6 1"1/2 48.3 2.6 100 0.85
114 60 2 60.3 2.9 0.98
114 76 2"1/2 76.1 2.9 1.00
114 89 3 88.9 3.2 1.02
139 60 5 139.7 4.0 2 60.3 2.9 127 1.60
139 76 2"1/2 76.1 2.9 1.70
139 89 3 88.9 3.2 1.74
139 114 4 114.3 3.6 1.76
*168 76 6 168.3 4.5 2"1/2 76.1 2.9 140 2.60
168 89 3 88.9 3.2 2.70
168 114 4 114.3 3.6 2.82
168 139 5 139.7 4.0 2.94
219 114 8 219.1 6.3 4 114.3 3.6 152 5.03
219 139 5 139.7 4.0 5.12
219 168 6 168.3 4.5 5.18
*273 114 10 273.0 6.3 4 114.3 3.6 178 7.00
*273 139 5 139.7 4.0 7.20
273 168 6 168.3 4.5 7.40
273 219 8 219.1 6.3 7.55
323 168 12 323.9 7.1 6 168.3 4.5 203 11.00
323 219 8 219.1 6.3 11.10
323 273 10 273 6.3 11.20

Weight Chart Of Flanged Concentric Reducer

NPS LBS KG
3/4-1/2 0.17 0.08
3/4-3/8 0.15 0.07
1-3/4 0.4 0.18
1-1/2 0.4 0.18
1.1/4-1 0.5 0.23
1.1/4-3/4 0.4 0.18
1.1/4-1/2 0.4 0.18
1.1/2-1.1/4 0.7 0.32
1.1/2-1 0.62 0.28
1.1/2-3/4 0.54 0.24
1.1/2-1/2 0.5 0.23
2-1.1/2 0.9 0.41
2-1.1/4 0.84 0.38
2-1 0.76 0.34
2-3/4 0.7 0.32
2.1/2-2 1.5 0.68
2.1/2-1.1/2 1.38 0.63
2.1/2-1.1/4 1.25 0.57
2.1/2-1 1.25 0.57
3-2.1/2 2 0.91
3-2 1.8 0.82
3-1.1/2 1.7 0.77
3-1.1/4 1.6 0.73
3.1/2-3 3.15 1.43
3.1/2-2.1/2 2.88 1.31
3.1/2-2 2.75 1.25
3.1/2-1.1/2 2.5 1.13
3.1/2-1.1/4 2.4 1.09
4-3.1/2 3.5 1.59
4-3 3.38 1.53
4-2.1/2 3.25 1.47
4-2 3 1.36
4-1.1/2 2.88 1.31
5-4 6 2.72
5-3.1/2 5.75 2.61
5-3 5.5 2.49
5-2.1/2 5.25 2.38
5-2 5 2.27
6-5 8.5 3.86
6-4 8.25 3.74
6-3.1/2 8.25 3.74
6-3 8 3.63
6-2.1/2 7.25 3.29
8-6 13.2 5.99
8-5 12 5.44
8-4 11 4.99
8-3.1/2 11 4.99
10-8 22 9.98
10-6 21.5 9.75
10-5 21 9.53
10-4 20 9.07
12-10 34 15.42
12-8 32 14.51
12-6 31 14.06
12-5 30 13.61
14-12 60 27.22
14-10 59.2 26.85
14-8 58.5 26.54
14-6 58 26.31
16-14 71 32.21
16-12 70 31.75
16-10 69.5 31.52
16-8 68.5 31.07
16-6 - -
18-16 85 38.56
18-14 84 38.1
18-12 83 37.65
18-10 82 37.19
18-8 - -
20-18 125 56.7
20-16 124 56.25
20-14 122 55.34
20-12 120 54.43
20-10 - -
20-8 - -
22-20 142 64.41
22-18 138 62.6
22-16 131 59.42
22-14 123 55.79
22-12 - -
22-10 - -
24-22 - -
24-20 150 68.04
24-18 148 67.13
24-16 145 65.77
24-14 - -
24-12 - -
24-10 - -
26-24 207 93.89
26-22 200 90.72
26-20 190 86.18
26-18 182 82.55
26-16 - -
26-14 - -
26-12 - -
28-26 224 101.6
28-24 216 97.98
28-22 210 95.25
28-20 199 90.26
30-28 241 109.32
30-26 232 105.23
30-24 224 101.6
30-22 220 99.79
30-20 220 99.79
NPS LBS KG

ASTM Specification of Concentric Reducer

  •  Carbon Steel Concentric Reducer Fitting
    •  ASTM A234 WPB BW Concentric Reducer
    •  ASTM A420 WPL6 Concentric Reducer Type B
  •  Alloy Steel High-Temp Reducer
    •  ASTM A234 WP5 BW Concentric Reducer
    •  ASTM A234 WP11 Flanged Concentric Reducer
    •  ASTM A234 WP9 Concentric Reducer Type B
    •  ASTM A234 WP22 Buttweld Concentric Reducer
    •  ASTM A234 WP91 Concentric Reducer
  •  Austenitic Stainless Steel Concentric Reducer
    •  ASTM A403 Gr F304 Concentric Reducer Fitting
    •  ASTM A403 Gr F316 Concentric Reducer Type B
    •  ASTM A403 Gr F321 Concentric Reducer
    •  ASTM A403 Gr F347 Flanged Concentric Reducer
    •  ASTM A403 Gr F304L Buttweld Concentric Reducer
    •  ASTM A403 Gr F316L Flanged Concentric Reducer
    •  ASTM A403 Gr F317 Concentric Reducer Type B
    •  ASTM A403 Gr F317L Reducer
    •  ASTM A403 Gr F321 Concentric Reducer Fitting
    •  ASTM A403 Gr F310 Flanged Concentric Reducer
    •  ASTM A403 Gr 347 BW Concentric Reducer
  •  Nickel Alloy Concentric Reducer Fitting
    •  ASTM B564 Buttweld Concentric Reducer
    •  astm b564 uns n06600 BW Concentric Reducer
    •  astm b564 uns n06625 Concentric Reducer
    •  astm b564 uns no4400 Reducer
    •  astm b564 uns n08810 Concentric Reducer Type B
    •  astm b564 uns n08811 Concentric Reducer Fitting
    •  astm b564 uns n08825 BW Concentric Reducer
    •  astm b564 uns n04400 Buttweld Concentric Reducer
    •  astm b564 uns n10276 Concentric Reducer
    •  astm b564 uns n10665 Reducer

Concentric Reducers Manufacturers in India, Concentric Reducers Exporters in India, Concentric Reducers Suppliers in India, Concentric Reducers Stockists in India.
