Omaa Metal Sources, should acknowledge the open way to present as a primary Stainless Steel 3D Elbow maker in India. Carbon Steel 3D Elbow are stacked or available in the going with extent of materials and sizes for the oil, gas, petrochemical and related organizations. Lines with 3D Elbow can be accumulated and destroyed with no issue. SS 3D Elbow can be produced or plate.

3D Elbow,3D Elbow Manufacturers, 3D Elbow Exporters, 3D Elbow Suppliers, 3D Elbow Stockists,3D Elbow Buttweld Fittings Manufacturers, 3D Elbow Buttweld Fittings Exporters, 3D Elbow Buttweld Fitting Suppliers, 3D Elbow Buttweld Fitting Stockists.

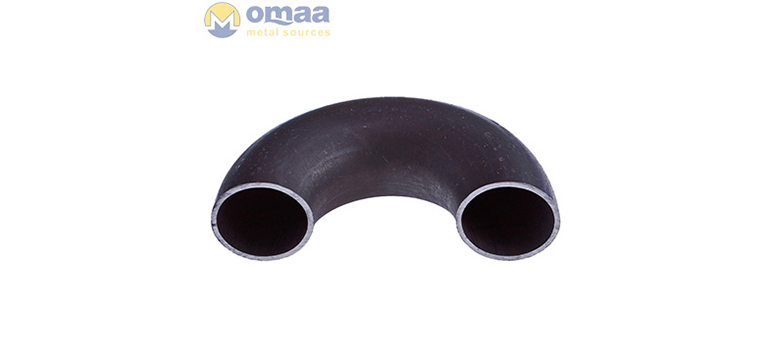

Awesome Image

Many Alloy Steel 3D Elbow maker in India produce these Carbon Steel 3D Elbow from molded materials and have machined surfaces. Dissect our expense from 3D Elbow makers in India or China you will find best rate from our association.

3D Elbow Buttweld Fitting Manufacturers in Mumbai, 3D Elbow Buttweld Fitting Exporters in Mumbai, 3D Elbow Buttweld Fitting Suppliers in Mumbai, 3D Elbow Buttweld Fitting Stockists in Mumbai.

Specification of 3D Elbow

Specifications 3D Elbow
3D Elbow Pipe Fittings size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
3D Elbow Types Seamless / ERW / Welded / Fabricated Pipe Fittings
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
3D ElbowType DN15-DN1200
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
3D Elbow Fittings Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
3D Elbow Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
3D Elbow Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing process Push, Press, Forge, Cast, etc.
3D Elbow Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for 3D Elbow
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Application
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • ASME B16.9 Schedule 10 3D Elbow are an economical alternative for lower-pressure applications.
  • ANSI B16.9 Schedule 40 3D Elbow have a thicker wall for higher-pressure applications.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Material of 3D Elbow

Prestige quality 3D Elbow manufacturers in India offer these Carbon Steel 3D Elbow in DIN, EN, BS, ISO, JIS or ANSI standard.

Carbon Steel 3D Elbow
  • ASTM A234 WPB 3D Elbow
  • ASTM A420 WPL6 3D Elbow
  • DIN 1.0402 3D Elbow
  • DIN 1.0460 3D Elbow
  • DIN 1.0619 3D Elbow
  • ASTM A234 WPB 3D Elbow
  • ASTM A420 WPL6 3D Elbow
  • WPHY 42 3D Elbow
  • WPHY 52 3D Elbow
  • WPHY 60 3D Elbow
Stainless Steel 3D Elbow
  • ASTM A403 WP304 3D Elbow
  • ASTM A403 WP304L 3D Elbow
  • ASTM A403 WP316 3D Elbow
  • ASTM A403 WP316L 3D Elbow
  • ASTM A403 WP317 3D Elbow
  • ASTM A403 WP317L 3D Elbow
  • ASTM A403 WP321 3D Elbow
  • ASTM A403 WP321H 3D Elbow
  • ASTM A403 WP347 3D Elbow
  • ASTM A403 WP347H 3D Elbow
Alloy Steel 3D Elbow
  • ASTM A234 WP5
  • ASTM A234 WP9
  • ASTM A234 WP11
  • ASTM A234 WP22
  • ASTM A234 WP91
Inconel 3D Elbow
  • Inconel 600
  • Inconel 601
  • Inconel 625
  • Inconel 718
  • Inconel x750
Copper 3D Elbow T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel 3D Elbow Copper Nickel 90/10 (C70600 ) 3D Elbow, Cupro Nickel 70/30 (C71500) 3D Elbow, UNS C71640 3D Elbow
Brass 3D Elbow 3602 / 2604 / H59 / H62 / etc.
Hastelloy 3D Elbow Hastelloy C276 (UNS N10276) 3D Elbow, C22 (UNS N06022) 3D Elbow, C4 3D Elbow, C2000 3D Elbow, B2 3D Elbow, B3 3D Elbow, X 3D Elbow
Monel 3D Elbow Monel 400 (UNS No. N04400) 3D Elbow, Monel 500 (UNS No. N05500) 3D Elbow
Alloy 20 3D Elbow Carpenter® 20 Alloy 3D Elbow, Alloy 20Cb-3 3D Elbow
Aluminium 3D Elbow 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel 3D Elbow Nickel 200 3D Elbow, Nickel 201 3D Elbow
Duplex 3D Elbow S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex 3D Elbow S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy 3D Elbow Incoloy 800, Incoloy 800H, Incoloy 800HT (UNS N08800), Incoloy 825 (UNS N08825)
254 Smo 3D Elbow SMO 254/6Mo, UNS S31254, DIN 1.4547
Nimonic 3D Elbow Nimonic 75, Nimonic 80A, Nimonic 90
Other 3D Elbow material Tin bronze, Alumunum bronze, Lead bronze
Titanium 3D Elbow
  • ASTM B381 Titanium Gr. 1
  • ASTM B381 Titanium Gr. 2
  • ASTM B381 Titanium Gr. 4
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7

ASME B16.9 3D Elbow Dimensions & Weight Chart

NPS O.D.
D
45 degrees
3D
Center-to-End
B
1/2 21.3 -
3/4 26.7 24
1 33.4 31
42.2 39
48.3 47
2 60.3 63
73 79
3 88.9 95
101.6 111
4 114.3 127
5 141.3 157
6 168.3 189
8 219.1 252
10 273 316
12 323.8 378
14 355.6 441
16 406.4 505
18 457 568
20 508 632
22 559 694
24 610 757
26 660 821
28 711 883
30 762 964
32 813 1010
34 864 1073
36 914 1135
38 965 1200
40 1016 1264
42 1067 1326
44 1118 1389
46 1168 1453
48 1219 1516
