Long Stub End Buttweld Fitting

Omaa Metal Sources areFittings or ANSI B 16.9 Stub End, Stub End Buttweld Fittings near you with most restricted time transport or free case of Stub End Din 2642. Call us or mail to sales@ omaaflange.com for Latest and Updated respect List of Stub End Buttweld Fittings and EN 1092-1 Stub End.

Long Stub End,Long Stub End Manufacturers, Long Stub End Exporters, Long Stub End Suppliers, Long Stub End Stockists,Long Stub End Buttweld Fittings Manufacturers, Long Stub End Buttweld Fittings Exporters, Long Stub End Buttweld Fitting Suppliers, Long Stub End Buttweld Fitting Stockists.

Awesome Image

Omaa Metal Sources is most unquestionable Stub End Manufacturers in India. We keep up most perceptible store of Stainless Steel Stub End Pipe Fittings. We stock vastest level of Carbon Steel Stub End Fittings, Stub End Buttweld Fittings in various sizes. We are standard specialist and supplier of ANSI B 16.9 Stub End, most ideal situation, cost as we are one of the most amazing supplier and merchant of Stub End EN 1092-1 Type 36 in India. We are most significant creator of Stub End Din 2642 requested by Saudi Aramco. We pass on Stub End Jis 10k, EN 1092-1 Stub End, Stub End 304 and Mss Type B Stub End at humble rate due to reasonable genius hours in India and dazzling store of first rate Stub End Carbon Steel, most ideal situation, cost open in Mumbai, India.

Omaa Metal Sources are manufacturer of ASME B16.9 Stub End and deftly first rate Stainless Steel Stub End Pipe Fittings offer you the best expenses on the lookout. The Stub End Stainless Steel are made in all Stub End Dimensions. Our noteworthy Stub End Type A, Stub End Buttweld Fittings are attempted and checked for strength, exactness and accuracy. ANSI B 16.9 Stub End are amazingly used in pipe works and are used in joint different sorts of lines.

Stub End Fittings are mechanical joints that fuses two regions: The Stub End, which fundamentally a short length of line, which has one end that is emanated outwards and the far edge made to be welded to line of close to Nominal Pipe Estimate (NPS), material and of a basically unclear divider thickness. Established Steel Stub End slide direct over the line and are most typically utilized with stub end fittings. A line is usually welded to the Carbon Steel Stub End and the Lap Joint line rib is permitted to turn the stub end. The advantage of lap joint stubend fittings is that there will not be any issues with stun opening arrangement.

Long Stub End Manufacturers in Mumbai, Long Stub End Exporters in Mumbai, Long Stub End Suppliers in Mumbai, Long Stub End Stockists in Mumbai.

Specification of Buttweld Long Stub End

Specifications Stub End
Stub End Type A Pipe Fittings size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
Type B Stub End Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Stub End Sch 10 Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Stub End Jis 10k Types Seamless / ERW / Welded / Fabricated Pipe Fittings
Long Stub End Type DN15-DN1200
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Type B Stub End Fittings Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
Stub End Jis 10k Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for Stub End
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Application
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • ASME B16.9 Schedule 10 Stub End are an economical alternative for lower-pressure applications.
  • ANSI B16.9 Schedule 40 Stub End have a thicker wall for higher-pressure applications.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Material of Long Stub End

Prestige quality Stub End Fittings manufacturers in India offer these Carbon Steel Stub End Sch 10 in DIN, EN, BS, ISO, JIS or ANSI standard.

Carbon Steel
  • ASTM A234 WPB
  • ASTM A420 WPL6
  • DIN 1.0402
  • DIN 1.0460
  • DIN 1.0619
  • ASTM A234 WPB
  • ASTM A420 WPL6
  • WPHY 42
  • WPHY 52
  • WPHY 60
Stainless Steel
  • ASTM A403 WP304
  • ASTM A403 WP304L
  • ASTM A403 WP316
  • ASTM A403 WP316L
  • ASTM A403 WP317
  • ASTM A403 WP317L
  • ASTM A403 WP321
  • ASTM A403 WP321H
  • ASTM A403 WP347
  • ASTM A403 WP347H
Alloy Steel
  • ASTM A234 WP5
  • ASTM A234 WP9
  • ASTM A234 WP11
  • ASTM A234 WP22
  • ASTM A234 WP9
Inconel
  • Inconel 600/li>
  • Inconel 601
  • Inconel 625
  • Inconel 718
  • Inconel x750
Copper T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Brass 3602 / 2604 / H59 / H62 / etc.
Hastelloy Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X
Monel Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel Nickel 200, Nickel 201
Duplex S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Incoloy 800, Incoloy 800H, Incoloy 800HT (UNS N08800), Incoloy 825 (UNS N08825)
254 Smo SMO 254/6Mo, UNS S31254, DIN 1.4547
Nimonic Nimonic 75, Nimonic 80A, Nimonic 90
Other Long Stub End material Tin bronze, Alumunum bronze, Lead bronze
Titanium
  • ASTM B381 Titanium Gr. 1
  • ASTM B381 Titanium Gr. 2
  • ASTM B381 Titanium Gr. 4
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7

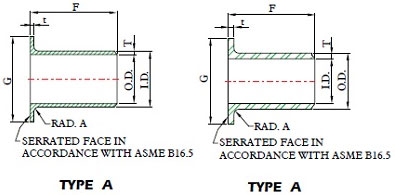

Dimensions of Type B Stub End

ASME B16.9 Long Stub End Manufacturer In India
Product Nom. Pipe Size Dia (G) Length (F), Short Outside Dia (O.D.) Sch 160, Inside Dia (I.D.) Sch 160, Lap Thickness (t) Schedule 160, Wall Thickness (T) XX Strong Wall Approx. Weight XX Strong Wall, Inside Dia (I.D.)
1 1/2" 1.5 2.875 2 1.9 1.338 0.281 0.281 2.98 1.1
1 1/2" " 1.5 2.875 4 1.9 0.15 0.15 1.49 1.5 0.2
1 1/4" 1.25 2.5 2 1.66 1.16 0.25 0.25 2.52 0.896
1 1/4" " 1.25 2.5 4 1.66 0.14 0.14 1.26 1.278 0.191
1" 1 2 2 1.315 0.815 0.25 0.25 1.76 0.599
1" " 1 2 4 1.315 0.133 0.133 0.88 0.957 0.179
1/2" 0.5 1.375 2 0.84 0.464 0.187 0.188 0.68 0.252
1/2" " 0.5 1.375 3 0.84 0.109 0.109 0.34 0.546 0.147
10" 10 12.75 5 10.75 8.5 1.125 1.125 – –
10" " 10 12.75 10 10.75 0.365 0.365 54 9.75 0.5
12" 12 15 6 12.75 10.126 1.312 1.312 – –
12" " 12 15 10 12.75 0.375 0.375 64.5 11.75 0.5
14" " 14 16.25 12 14 0.375 0.375 84 13 0.5
16" " 16 18.5 12 16 0.375 0.375 98 15 0.5
18" " 18 21 12 18 0.375 0.375 136 17 0.5
2 1/2" 2.5 4.125 2.5 2.875 2.125 0.375 0.375 8.8 1.771
2 1/2" " 2.5 4.125 6 2.875 0.203 0.203 4.4 2.323 0.276
2" 2 3.625 2.5 2.375 1.689 0.343 0.343 6.1 1.503
2" " 2 3.625 6 2.375 0.154 0.154 3.05 1.939 0.218
20" " 20 23 12 20 0.375 0.375 157 19 0.5
3 1/2" 3.5 5.5 3 4 – – – 15.5 2.728
3 1/2" " 3.5 5.5 6 4 0.226 0.226 7.75 3.364 0.318
3" 3 5 2.5 3.5 2.624 0.438 0.438 9.8 2.3
3" " 3 5 6 3.5 0.216 0.216 6.5 2.9 0.3
3/4" 0.75 1.688 2 1.05 0.612 0.218 0.219 0.94 0.434
3/4" " 0.75 1.688 3 1.05 0.113 0.113 0.47 0.742 0.154
4" 4 6.188 3 4.5 3.438 0.531 0.531 19.3 3.152
4" " 4 6.188 6 4.5 0.237 0.237 9.65 3.826 0.337
5" 5 7.313 3 5.563 4.313 0.625 0.625 32.66 4.063
5" " 5 7.313 8 5.563 0.258 0.258 16.33 4.813 0.375
6" 6 8.5 3.5 6.625 5.187 0.718 0.719 45.26 4.897
6" " 6 8.5 8 6.625 0.28 0.28 22.63 5.761 0.432
8" 8 10.625 4 8.625 6.813 0.906 0.906 59.71 6.875
8" 8 10.625 8 8.625 0.322 0.322 34.12 7.625 0.5

STUB ENDS – ANSI AND MSS SP-43 DIMENSIONS

STUB ENDS – ANSI B 16.9 and MSS SP-43 dimension
inches ND mm Diameter of lap

Radius of fillet

 Length F

D

 G R R1 MSS SP43 ANSI B16.9
1/2 15 21,34 34,92 3,17 0,80 50,80 76,20
3/4 20 26,67 42,86 3,17 0,80 50,80 76,20
1 25 33,40 50,80 3,17 0,80 50,80 101,60
1 1/4 32 42,16 63,50 4,76 0,80 50,80 101,60
1 1/2 40 48,26 73,00 6,35 0,80 50,80 101,60
2 50 60,32 92,10 7,93 0,80 63,50 152,40
2 1/2 65 73,02 104,80 7,93 0,80 63,50 152,40
3 80 88,90 127,00 9,52 0,80 63,50 152,40
3 1/2 90 101,60 139,70 9,52 0,80 76,20 152,40
4 100 114,30 157,20 11,11 0,80 76,20 152,40
5 125 141,30 185,70 11,11 1,58 76,20 203,20
6 150 168,27 215,90 12,70 1,58 88,90 203,20
8 200 219,07 269,80 12,70 1,58 101,60 203,20
10 250 273,05 323,80 12,70 1,58 127,00 254,00
12 300 323,85 381,00 12,70 1,58 152,40 254,00
14 350 355,60 412,70 12,70 1,58 152,40 304,80
16 400 406,40 469,90 12,70 1,58 152,40 304,80
18 450 457,20 533,40 12,70 1,58 152,40 304,80
20 500 508,00 584,20 12,70 1,58 152,40 304,80
22 550 558,80 641,30 12,70 1,58 152,40 304,80
24 600 609,60 692,10 12,70 1,58 152,40 304,80
The lap thickness T shall not be less than nominal pipe wall thickness t

STUB ENDS – ANSI AND MSS SP-43 DIMENSIONS

STUB ENDS – ANSI B 16.9 and MSS SP-43 dimension
inches ND mm Diameter of lap

Radius of fillet

 Length F

D

 G R R1 MSS SP43 ANSI B16.9
1/2 15 21,34 34,92 3,17 0,80 50,80 76,20
3/4 20 26,67 42,86 3,17 0,80 50,80 76,20
1 25 33,40 50,80 3,17 0,80 50,80 101,60
1 1/4 32 42,16 63,50 4,76 0,80 50,80 101,60
1 1/2 40 48,26 73,00 6,35 0,80 50,80 101,60
2 50 60,32 92,10 7,93 0,80 63,50 152,40
2 1/2 65 73,02 104,80 7,93 0,80 63,50 152,40
3 80 88,90 127,00 9,52 0,80 63,50 152,40
3 1/2 90 101,60 139,70 9,52 0,80 76,20 152,40
4 100 114,30 157,20 11,11 0,80 76,20 152,40
5 125 141,30 185,70 11,11 1,58 76,20 203,20
6 150 168,27 215,90 12,70 1,58 88,90 203,20
8 200 219,07 269,80 12,70 1,58 101,60 203,20
10 250 273,05 323,80 12,70 1,58 127,00 254,00
12 300 323,85 381,00 12,70 1,58 152,40 254,00
14 350 355,60 412,70 12,70 1,58 152,40 304,80
16 400 406,40 469,90 12,70 1,58 152,40 304,80
18 450 457,20 533,40 12,70 1,58 152,40 304,80
20 500 508,00 584,20 12,70 1,58 152,40 304,80
22 550 558,80 641,30 12,70 1,58 152,40 304,80
24 600 609,60 692,10 12,70 1,58 152,40 304,80
The lap thickness T shall not be less than nominal pipe wall thickness t

Weight Chart Of Stub End Sch 10

NPS
inches		 STUB ENDS
Sch.
5S		 Sch.
10S		 Sch.
40S		 Sch.
80S
1/2 0.06 0.08 0.12 0.13
3/4 0.07 0.09 0.15 0.17
1 0.09 0.15 0.20 0.25
1 1/4 0.13 0.20 0.30 0.35
1 1/2 0.16 0.25 0.38 0.46
2 0.25 0.40 0.55 0.75
2 1/2 0.35 0.50 0.80 1.00
3 0.50 0.60 1.10 1.50
4 0.70 1.00 1.80 2.50
5 1.00 1.25 2.50 3.50
6 1.60 1.95 3.70 5.50
8 2.50 3.10 5.90 10.0
10 4.00 4.90 10.5 14.0
12 6.60 7.10 15.0 20.0
14 6.40 7.80 15.5 20.5
16 7.90 9.00 18.0 24.0
18 9.30 10.5 21.0 28.0
20 12.0 13.5 23.5 31.0
24 16.5 19.0 28.5 38.0
Approximate weights in kg, density 8 kg/dm3

Available types of ASME B 16.9 Stub End

Stub End Dimensions Mss Type B Stub End
Carbon Steel Stub End Fittings ASME B 16.9 Stub End
Stub End Weight ANSI B 16.9 Stub End
Stub End Type A Stub End Carbon Steel
Stub End Mss Sp 43 Stub End Din 2642
Stub End Manufacturers Stub End EN 1092-1 Type 35
Stainless Steel Stub End Pipe Fittings Stub End EN 1092-1 Type 36
Long Stub End Stub End Jis 10k
Short Stub End Stub End Specification
Lap Joint Stub End Stub End Sch 10
Stub End Weight Chart Stub End Stainless Steel
Stub End Type A Ss Stub End Dimensions
Stub End B16.9 EN 1092-1 Stub End
Stub End Buttweld Fittings Stub End 304
Type B Stub End Dimensions

ASTM Specification of Long Stub End

  •  Carbon Steel Stub End Type A
    •  ASTM A234 WPB Type B Stub End
    •  ASTM A420 WPL6 Long Stub End
  •  Alloy Steel High-Temp Stub End Jis 10k
    •  ASTM A234 WP5 Type B Stub End
    •  ASTM A234 WP11 Stub End Sch 10
    •  ASTM A234 WP9 Long Stub End
    •  ASTM A234 WP22 Stub End Fittings
    •  ASTM A234 WP91 Stub End
  •  Austenitic Stainless Steel Stub End
    •  ASTM A403 Gr F304 Stub End Type A
    •  ASTM A403 Gr F316 Long Stub End
    •  ASTM A403 Gr F321 Stub End
    •  ASTM A403 Gr F347 Stub End Sch 10
    •  ASTM A403 Gr F304L Stub End Fittings
    •  ASTM A403 Gr F316L Stub End Sch 10
    •  ASTM A403 Gr F317 Long Stub End
    •  ASTM A403 Gr F317L Stub End Jis 10k
    •  ASTM A403 Gr F321 Stub End Type A
    •  ASTM A403 Gr F310 Stub End Sch 10
    •  ASTM A403 Gr 347 Type B Stub End
  •  Nickel Alloy Stub End Type A
    •  ASTM B564 Stub End Fittings
    •  astm b564 uns n06600 Type B Stub End
    •  astm b564 uns n06625 Stub End
    •  astm b564 uns no4400 Stub End Jis 10k
    •  astm b564 uns n08810 Long Stub End
    •  astm b564 uns n08811 Stub End Type A
    •  astm b564 uns n08825 Type B Stub End
    •  astm b564 uns n04400 Stub End Fittings
    •  astm b564 uns n10276 Stub End
    •  astm b564 uns n10665 Stub End Jis 10k
