Omaa Metal Sources, ought to recognize the open method to present as an essential Carbon Steel 1.5D Elbow producer in India. Cemented Steel 1.5D Elbow are furnished or open in the going with degree of materials and sizes for the oil, gas, petrochemical and bound together associations. Lines with 1.5D Elbow can be amassed and obliterated with no issue. ASME B16.9 1.5D Elbow can be formed or plate.

1.5D Elbow,1.5D Elbow Manufacturers, 1.5D Elbow Exporters, 1.5D Elbow Suppliers, 1.5D Elbow Stockists,1.5D Elbow Buttweld Fittings Manufacturers, 1.5D Elbow Buttweld Fittings Exporters, 1.5D Elbow Buttweld Fitting Suppliers, 1.5D Elbow Buttweld Fitting Stockists.

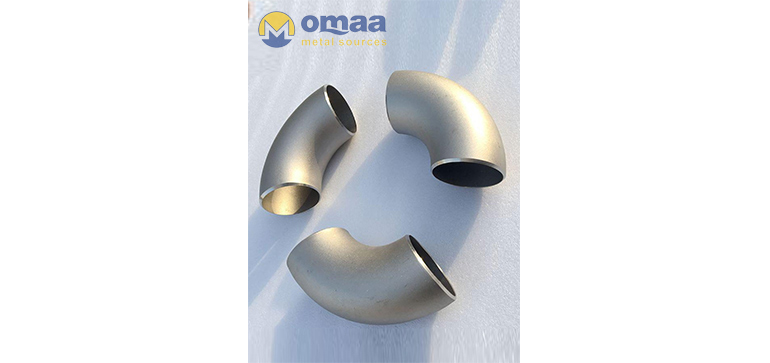

Awesome Image

Many Alloy Steel 1.5D Elbow producer in India produce these Carbon Steel 1.5D Elbow from formed materials and have machined surfaces. Consider our cost from 1.5D Elbow makers in India or China you will discover best rate from our affiliation.

1.5D Elbow Buttweld Fitting Manufacturers in Mumbai, 1.5D Elbow Buttweld Fitting Exporters in Mumbai, 1.5D Elbow Buttweld Fitting Suppliers in Mumbai, 1.5D Elbow Buttweld Fitting Stockists in Mumbai.

Specification of 1.5D Elbow

Specifications 1.5D Elbow
1.5D Elbow Pipe Fittings size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
1.5D Elbow Types Seamless / ERW / Welded / Fabricated Pipe Fittings
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
1.5D ElbowType DN15-DN1200
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
1.5D Elbow Fittings Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
1.5D Elbow Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
1.5D Elbow Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing process Push, Press, Forge, Cast, etc.
1.5D Elbow Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for 1.5D Elbow
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Application
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • ASME B16.9 Schedule 10 1.5D Elbow are an economical alternative for lower-pressure applications.
  • ANSI B16.9 Schedule 40 1.5D Elbow have a thicker wall for higher-pressure applications.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Material of 1.5D Elbow

Prestige quality 1.5D Elbow manufacturers in India offer these Carbon Steel 1.5D Elbow in DIN, EN, BS, ISO, JIS or ANSI standard.

Carbon Steel 1.5D Elbow
  • ASTM A234 WPB 1.5D Elbow
  • ASTM A420 WPL6 1.5D Elbow
  • DIN 1.0402 1.5D Elbow
  • DIN 1.0460 1.5D Elbow
  • DIN 1.0619 1.5D Elbow
  • ASTM A234 WPB 1.5D Elbow
  • ASTM A420 WPL6 1.5D Elbow
  • WPHY 42 1.5D Elbow
  • WPHY 52 1.5D Elbow
  • WPHY 60 1.5D Elbow
Stainless Steel 1.5D Elbow
  • ASTM A403 WP304 1.5D Elbow
  • ASTM A403 WP304L 1.5D Elbow
  • ASTM A403 WP316 1.5D Elbow
  • ASTM A403 WP316L 1.5D Elbow
  • ASTM A403 WP317 1.5D Elbow
  • ASTM A403 WP317L 1.5D Elbow
  • ASTM A403 WP321 1.5D Elbow
  • ASTM A403 WP321H 1.5D Elbow
  • ASTM A403 WP347 1.5D Elbow
  • ASTM A403 WP347H 1.5D Elbow
Alloy Steel 1.5D Elbow
  • ASTM A234 WP5
  • ASTM A234 WP9
  • ASTM A234 WP11
  • ASTM A234 WP22
  • ASTM A234 WP91
Inconel 1.5D Elbow
  • Inconel 600
  • Inconel 601
  • Inconel 625
  • Inconel 718
  • Inconel x750
Copper 1.5D Elbow T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel 1.5D Elbow Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Brass 1.5D Elbow 3602 / 2604 / H59 / H62 / etc.
Hastelloy 1.5D Elbow Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X
Monel 1.5D Elbow Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 1.5D Elbow Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium 1.5D Elbow 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel 1.5D Elbow Nickel 200, Nickel 201
Duplex 1.5D Elbow S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy 1.5D Elbow Incoloy 800, Incoloy 800H, Incoloy 800HT (UNS N08800), Incoloy 825 (UNS N08825)
254 SMO 1.5D Elbow SMO 254/6Mo, UNS S31254, DIN 1.4547
Nimonic 1.5D Elbow Nimonic 75, Nimonic 80A, Nimonic 90
Other material Tin bronze, Alumunum bronze, Lead bronze
Titanium 1.5D Elbow
  • ASTM B381 Titanium Gr. 1
  • ASTM B381 Titanium Gr. 2
  • ASTM B381 Titanium Gr. 4
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7

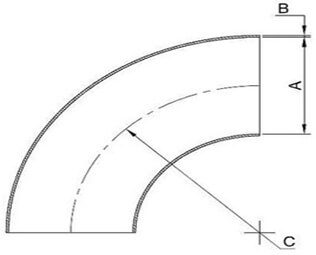

ASME B16.9 1.5D Elbow Dimensions & Weight Chart

Metric 90 Elbows Radius = 1.5D – in Type 316L and Type 304L

1.5D

Inside

Wall

Centreline

Weight

Diameter

Thickness

Radius

Per Piece

‘A’ mm

‘B’ mm

‘C’ mm

kilos

15 1.50 30 0.03
20 1.50 35 0.04
25 1.50 32.5 0.06
32 1.50 45 0.11
40 1.50 60 0.20
50 2.00 73 0.31
65 2.00 95 0.52
80 2.00 123 0.77
100 2.00 150 1.20
100 3.00 150 1.79
125 2.00 188 1.88
150 2.00 225 2.69
150 3.00 225 4.09
