Spectacle Blind Flanges

Show Blind Flanges is used to unquestionably guarantee that a thing of stuff is fittingly and securely blanked off with no shot at any stream or spillage through a valve during upkeep. Created scored circumstance deaden spine is used to stream can be diverted to various things of contraption yet not just sidestepped around the reasonable as this would deal the succeeding farthest reaches of the show flounder. Show puzzle rib PN16 of the clearly hindered will have an opening to permit stream through the line during progress and the farthest edge is solid to baffle stream during help. Set steel show floor spine are everything thought of as prominent as a ceaseless contraption with take out measure redirecting systems. We are Spectacle Blind Flange Manufacturers in India.

Spectacle Blind Flanges, Spectacle Blind Flanges Manufacturers, Spectacle Blind Flanges Exporters, Spectacle Blind Flanges Suppliers, Spectacle Blind Flanges Stockists. MSS SP-44 Spectacle Blind Flange Manufacturer, Check Dimension of ASME B16.48 Spectacle Blind Flange.

Awesome Image

Set Steel Spectacle Blind Flange to Singapore, Philippines, Thailand, UK, Bahrain, India, Malaysia, Indonesia, Kuwait, Vietnam, Oman, Qatar, South Africa, Saudi Arabia (KSA), United Arab Emirates (UAE). We are driving Spectacle Blind Flange Manufacturers in India. Call us for stockist of Class 150 superstar deaden spine in india. A105 Carbon Steel Spectacle Blind Flange, most ideal condition, cost as we are extraordinary diverged from other supplier and transporter of Carbon Steel Spectacle Blind Flange in India. Supplier of DIN 86029 PN10 Blind Spectacle Flange in india. Aiming to purchase Class 150 show debilitate rib, most ideal situation, cost in India, request respect list from Forged scored show surprise rib including Carbon steel show incapacitate rib, Flat Face Spectacle Blind Flange and Alloy 20 Spectacle Blind Flange. We pass on Stainless Steel 316l Spectacle Blind Flange, Spectacle Blind Flange Flat Face and show debilitate spine 300 at restricted rate in view of reasonable master hours in India. Partner with Us for Latest and Updated respect List of Stainless Steel Spectacle Blind Flange and Inconel 625 Spectacle Blind Flange. Our strong and submitted staff has attracted us to become Spectacle Blind Flange Manufacturers in India. View Spectacle cripple rib weight chart and show stifle spine evaluations, We are driving supplier of Spectacle deaden rib ASME B16.48.

Spectacle Blind Flanges Manufacturers in Mumbai, Spectacle Blind Flanges Exporters in Mumbai, Spectacle Blind Flanges Suppliers in Mumbai, Check EN 1092-2 PN16 Spectacle Blind Flange Dimensions & Price List of ASME B16.48 Spectacle Blind Flange Raised Face, Spectacle Blind Flange manufacturer in India.

Omaa Metal Sources is ensuring valuable progress of the ANSI B16.48 Spectacle Flange as shown by need of clients. Augmentation to it, to ensure safer transportation thing is full in Carton boxes and Shrink-wrapped. We offer gathered degree of AWWA C207 Spectacle Flanges things at reasonable rates.

We are ANSI B16.48 Class 150 Spectacle Blind Flange exporters in india. Show Blind Flanges manufacturers in India that is ensuring in fulfilling all of the game plans of various industry. Looking for Spectacle Blind Flange creators in India call us now. We have the generally speaking furnished gathering plant with the high sort of disagreeable materials use close to the utilization of latest unexpected new development and present day equipment, the shot at ASME B16.48 Spectacle Blind Flange Raised Face has a lot of improved.

Looking for strong distributer of ASME B16.48 Spectacle Flange and Stainless Steel Spectacle Blind Flange in india. We are keeping up wide deftly of Stainless Steel Spectacle Blind Flange.Omaa Metal Sources is distributer and stockist of ASME B16.47 Series a Flat Face Spectacle Blind Flange in various sizes. We are EN 1092-1 Type 02 Spectacle Flange suppliers in india. Interface with us accepting you are looking for ANSI B16.5 show surprise spine level face stockist in india.

Specification of Ring Spacers Flanges

ASME B16.5 Spectacle Blind Flange Size Chart 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
grooved spectacle blind flange Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Spectacle Flange Pressure Rating ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Spectacle Flange
Spectacle Flange Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Spectacle Flange
JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Spectacle Flange
UNI 6Bar 10Bar 16Bar 25Bar 40Bar grooved spectacle blind flange
EN 6Bar 10Bar 16Bar 25Bar 40Bar Forged grooved spectacle blind flange
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized ASME B16.5 Spectacle Blind Flange
Most common types of Spectacle Blind Flange Forged / Threaded / Screwed / Plate
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique
  • Forged, Heat treated and machined
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations
Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin Indian / West Europe / Japan / USA / Korean
Manufacturer of

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
Spectacle Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

  • B.S: BS4504 , BS3293, BS1560, BS10
  • AS 2129: Table D; Table E; Table H
  • ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
  • ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • American standard (ANSI)
  • German (DIN)
  • British standard (BS)
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Forged grooved spectacle blind flange
  • The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
grooved spectacle blind flange Uses & application
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Export to Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Material of Spectacle Flange

  •  Carbon Steel Spectacle Flanges
    •  A105 Spectacle Blind Flanges
  •  Alloy Steel High-Temp Spectacle Flanges
    •  A182 Gr F1 grooved spectacle blind flanges
    •  A182 Gr F11 Spectacle Flanges
    •  A182 Gr F12 Spectacle Flanges
    •  A182 Gr F22 Spectacle Blind Flanges
    •  A182 Gr F5 Spectacle Blind Flanges
    •  A182 Gr F9 Spectacle Flanges
  •  Alloy Steel Low-Temp Forged grooved spectacle blind flanges
    •  A350 Gr LF2 Spectacle Flanges
    •  A350 Gr LF3 Spectacle Blind Flanges
  •  Austenitic Stainless Steel Spectacle Blind Flanges
    •  A182 Gr F304 Forged grooved spectacle blind flanges
    •  A182 Gr F316 Spectacle Flanges
    •  A182 Gr F321 Spectacle Flanges
    •  A182 Gr F347 Spectacle Blind Flanges
    •  A182 Gr F304L grooved spectacle blind flanges
    •  A182 Gr F316L Spectacle Flanges
    •  A182 Gr F317 Spectacle Flanges
    •  A182 Gr F317L Spectacle Flanges
    •  A182 Gr F321 grooved spectacle blind flanges
    •  A182 Gr F310 Spectacle Blind Flanges
    •  A182 Gr 347 Spectacle Blind Flanges
  •  Nickel Alloy Spectacle Flange
    •  ASTM B564 Spectacle Blind Flange
    •  astm b564 uns n06600 Spectacle Flange
    •  astm b564 uns n06625 Forged grooved spectacle blind flange
    •  astm b564 uns no4400 Spectacle Flange
    •  astm b564 uns n08810 Spectacle Flange
    •  astm b564 uns n08811 grooved spectacle blind flange
    •  astm b564 uns n08825 Spectacle Blind Flange
    •  astm b564 uns n04400 Spectacle Flange
    •  astm b564 uns n10276 Spectacle Flange
    •  astm b564 uns n10665 Spectacle Blind Flange
  •  Titanium Forged grooved spectacle blind flange
    •  astm b381 grade f2 Spectacle Blind Flange
    •  astm b381 f5 Spectacle Flange
    •  astm b381 f3 Spectacle Blind Flange
    •  astm b381 f12 Spectacle Flange
    •  astm b381 f7 Spectacle Flange
    •  Other grades: ASTM B381 F1, F2, F2H, F3, F4, F5, F6, F7, F7H, F9, F10, F11, F12, F13, F14, F15, F16, F16H, F17, F18, F19, F20, F21, F23, F24, F25, F26 , F26H, F27, F28, F29, F30, F31, F32, F33, F34, F35, F36, F37, F38 grooved spectacle blind flange



Dimensions of Spectacle Flange

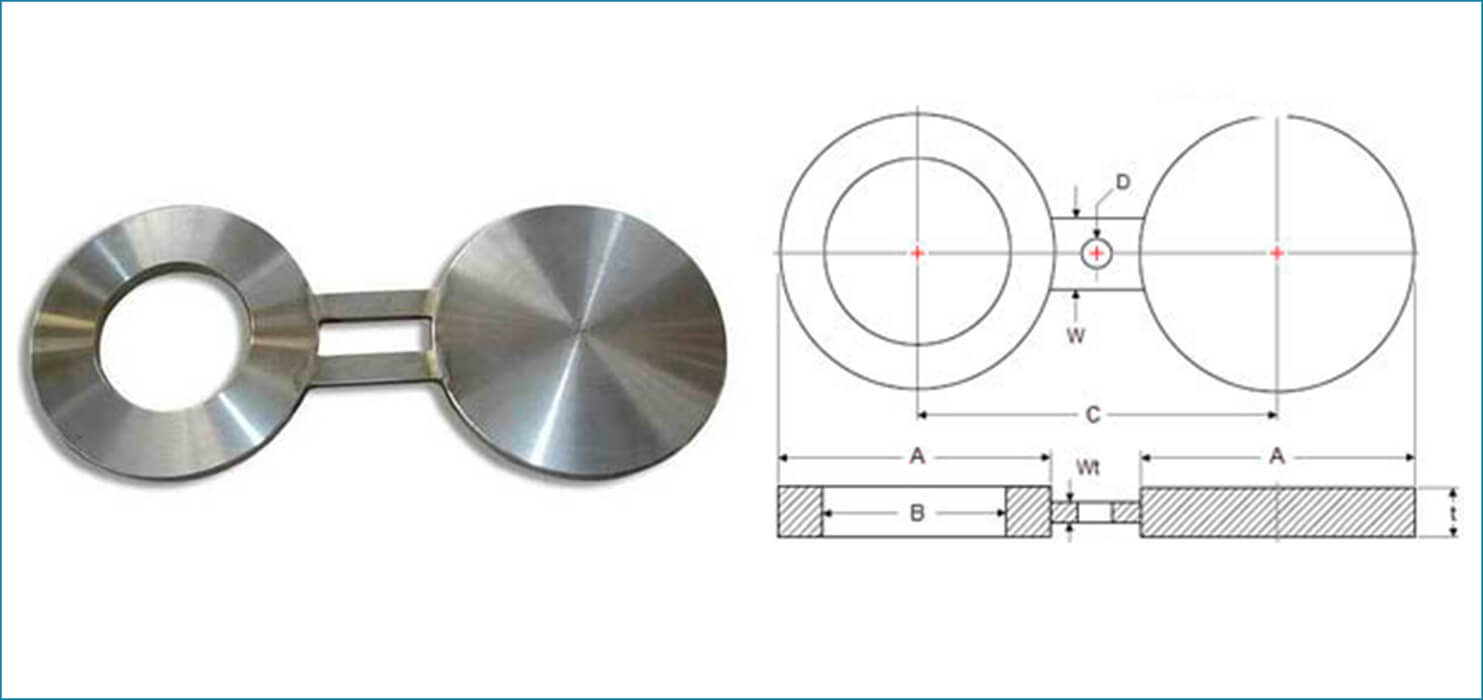

ASME B16.5 Spectacle Blind Flange Dimension

Pressure Class 150

NPS Outside Ø
A		 Inside Ø
B		 Center Line
C		 THK
t		 Web Width
W
1/2 45 16 60 3 38
3/4 54 21 70 3 38
1 64 27 80 3 38
1¼ 73 42 90 6.4 38
1½ 83 48 100 6.4 38
2 102 61 120 6.4 51
2½ 107 73 140 6.4 51
3 133 89 150 6.4 64
3½ 159 102 175 9.7 64
4 172 114 190 9.7 64
5 194 141 215 9.7 76
6 219 168 240 12.7 76
8 276 219 300 12.7 76
10 337 273 360 15.7 102
12 406 324 430 19.1 102
14 448 356 475 19.1 108
16 511 406 460 22.4 108
18 546 457 580 25.4 114
20 603 508 635 28.4 121
24 714 610 750 31.8 140
NPS Outside Ø
A		 Inside Ø
B		 Center Line
C		 THK
t		 Web Width
W

Pressure Class 300

NPS Outside Ø
A		 Inside Ø
B		 Center Line
C		 THK
t		 Web Width
W
1/2 51 16 65 6.4 38
3/4 64 21 80 6.4 38
1 70 27 90 6.4 38
1¼ 79 42 100 6.4 38
1½ 92 48 115 6.4 38
2 108 61 125 9.7 51
2½ 127 73 150 9.7 51
3 146 89 170 9.7 64
3½ 162 102 185 12.7 64
4 178 114 200 12.7 64
5 213 141 235 15.7 76
6 248 168 270 15.7 76
8 305 219 330 22.4 76
10 359 273 385 25.4 102
12 419 324 450 28.4 102
14 483 356 515 31.8 108
16 536 406 570 38.1 108
18 594 457 630 41.1 114
20 651 508 685 44.5 121
24 772 610 810 50.8 140
NPS Outside Ø
A		 Inside Ø
B		 Center Line
C		 THK
t		 Web Width
W

Pressure Class 600

NPS Outside Ø
A		 Inside Ø
B		 Center Line
C		 THK
t		 Web Width
W
1/2 51 16 65 6.4 38
3/4 64 21 80 6.4 38
1 70 27 90 6.4 57
1¼ 79 37 100 9.7 57
1½ 92 43 115 9.7 67
2 108 55 125 9.7 57
2½ 127 67 150 12.7 67
3 146 83 170 12.7 67
3½ 159 96 185 15.7 76
4 191 108 215 15.7 76
5 238 135 265 19.1 86
6 264 162 290 22.4 86
8 318 212 350 28.4 95
10 397 265 430 35.1 105
12 454 315 490 41.1 105
14 489 346 525 44.5 114
16 562 397 605 50.8 124
18 610 448 655 53.8 133
20 679 497 725 63.5 133
24 787 597 840 73.2 152
NPS Outside Ø
A		 Inside Ø
B		 Center Line
C		 THK
t		 Web Width
W

Pressure Class 900

NPS Outside Ø
A		 Inside Ø
B		 Center Line
C		 THK
t		 Web Width
W
1/2 60 16 80 6.4 38
3/4 67 21 90 6.4 41
1 76 27 100 6.4 57
1¼ 86 37 110 9.7 57
1½ 95 43 125 9.7 67
2 140 55 165 12.7 57
2½ 162 67 190 12.7 67
3 165 83 190 15.7 67
4 203 108 235 19.1 76
5 244 135 280 22.4 86
6 286 162 320 25.4 86
8 356 212 395 35.1 95
10 432 265 470 41.1 105
12 495 315 535 47.8 105
14 518 346 560 53.8 114
16 572 397 615 60.5 124
18 635 448 685 66.5 133
20 696 497 750 73.2 133
24 835 597 900 88.9 152
NPS Outside Ø
A		 Inside Ø
B		 Center Line
C		 THK
t		 Web Width
W

Pressure Class 1500

NPS Outside Ø
A		 Inside Ø
B		 Center Line
C		 THK
t		 Web Width
W
1/2 61 16 80 6.4 38
3/4 67 21 90 9.7 41
1 76 27 100 9.7 64
1¼ 86 35 110 9.7 64
1½ 95 41 125 12.7 70
2 140 53 165 12.7 70
2½ 162 63 190 15.7 76
3 172 78 205 19.1 76
4 206 102 240 22.4 89
5 251 128 290 28.4 89
6 279 154 320 35.1 89
8 349 203 395 41.1 102
10 432 255 480 50.8 114
12 518 303 570 60.5 114
14 575 333 635 66.5 127
16 638 381 705 76.2 133
18 702 429 775 85.9 146
20 752 478 830 95.3 152
24 899 575 990 111.3 178
NPS Outside Ø
A		 Inside Ø
B		 Center Line
C		 THK
t		 Web Width
W

Pressure Class 2500

NPS Outside Ø
A		 Inside Ø
B		 Center Line
C		 THK
t		 Web Width
W
1/2 67 16 90 9.7 38
3/4 73 21 95 9.7 41
1 83 27 110 9.7 64
1¼ 102 35 130 12.7 64
1½ 114 41 145 15.7 70
2 143 53 170 15.7 70
2½ 165 63 195 19.1 76
3 194 78 230 22.4 76
4 232 102 275 28.4 89
5 276 128 325 35.1 89
6 314 154 370 41.1 89
8 384 198 440 53.8 102
10 473 248 540 66.5 114
12 546 289 620 79.2 114
NPS Outside Ø
A		 Inside Ø
B		 Center Line
C		 THK
t		 Web Width
W

Weight Chart Of grooved spectacle blind Flange

NPS
(Inches)		 DN
(mm)		 FLANGE OD
A MM		 FLANGE THICKNESS D
MM		 SLIP ON FLANGE WEIGHT (KGS) WELD NECK FLANGE WEIGHT (KGS) BLIND FLANGE WEIGHT (KGS)
1/ 2 15 88.9 11.2 0.4 0.5 0.4
3/ 4 20 98.6 12.7 0.6 0.7 0.6
1 25 108 14.2 0.8 1 0.9
1 1/ 4 32 117.3 15.7 1 1.3 1.2
1 1/ 2 40 127 17.5 1.3 1.7 1.5
2 50 152.4 19.1 2.1 2.6 2.4
2 1/ 2 65 177.8 22.4 3.3 4.1 3.9
3 80 190.5 23.9 3.9 4.9 4.9
3 1/ 2 90 215.9 23.9 4.8 6.1 6.2
4 100 228.6 23.9 5.3 6.8 7.0
5 125 254 23.9 6.1 8.6 8.6
6 150 279.4 25.4 7.5 10.6 11.3
8 200 342.9 28.4 12.1 17.6 19.6
10 250 406.4 30.2 16.5 24 28.6
12 300 482.6 31.8 26.2 36.5 43.2
14 350 533.4 35.1 34.6 48.4 58.1
16 400 596.9 36.6 44.8 60.6 76.1
18 450 635 39.6 48.9 68.3 93.7
20 500 698.5 42.9 61.9 84.5 122.0
24 600 812.8 47.8 86.9 115 185.0
