Groove & Tongue Flanges

Tongue and Groove Flange resembles a slip-on spine in plot, yet the drag is Groove and Tongue, likewise engaging social gathering without welding. This strings are fixed to make a seal between the Groove and Tongue rib and the line as the shapes approach a close to separation over. The Tongue and Groove are implied as one or the other Groove and Tongue or Tongue.

Groove & Tongue Flanges, Groove & Tongue Flanges Manufacturers, Groove & Tongue Flanges Exporters, Groove & Tongue Flanges Suppliers, Groove & Tongue Flanges Stockists. Large Tongue Groove Flange Manufacturer, View Carbon Steel Small Tongue Groove Flange dimensions.

Awesome Image

Tempered Steel Groove and Tongue Flange manufacturers in India. We are Supplierand distributer of ANSI B16.5 Class 150 Tongue and Groove Flanges, ASME B16.5 Tongue and Groove Flanges, Groove and Tongue Flanges and Stainless Steel Tongue and Groove Flanges at Factory Price by ethicalness of reasonable specialist hours in India and cerebrum blowing wellspring of first rate ANSI B16.5 Tongue and Groove Flanges, most ideal situation, cost open in Mumbai, India.

Groove & Tongue Flanges Manufacturers in Mumbai, Groove & Tongue Flanges Exporters in Mumbai, Groove & Tongue Flanges Suppliers in Mumbai, Contact Us for Latest Price List of MSS SP-44 ASTM A182 SS Large Groove Flange, ANSI B16.5 Stainless Steel Tongue Flange manufacturer in India, Check ASME B16.47 Series a Stainless Steel Small Tongue Flanges Dimensions.

Omaa Metal Sources is strong creator of ASME B16.47 Series An and B Tongue and Groove Flanges got a handle on by Saudi Aramco. We are scholar of Nickel Alloy 200 little tongue and indent Flanges.Omaa Metal Sources is most conspicuous trader of ASTM A182 SS Tongue and Groove Flange, Alloy Steel Tongue and Groove Flanges in various sizes. We are supplier of Tongue and kink type spine, rib tongue and dispiriting and Tongue and indent joint rib in India, You can check different appraisals like Tongue rib evaluations, monster Tongue rib appraisals and Tongue and score rib evaluations.

We have a pre-arranged stock to buy Carbon Steel monstrous tongue and wretchedness Flanges, most ideal situation, cost in India, check our stock expense of MSS SP-44 Tongue and Groove Flanges including Tongue and Groove Flange Dimensions, Duplex Steel tongue and kink pipe Flanges and Inconel Tongue and Groove Flanges. Hastelloy C22 Tongue and Groove Flange to UK, France, Egypt, Australia, Italy, Bahrain, Kuwait, Thailand, Russia, Turkey,Canada, Indonesia, Malaysia, Singapore, UAE, Iran, Qatar, Sweden, USA, Israel, Germany, Oman, Sri Lanka and Saudi Arabia.

We are most unquestionable supplier of Class 300 Tongue and Groove Flanges, most ideal situation, cost as we are one of the most outstanding supplier and vender of DIN86029 PN10 Tongue and Groove Flanges in India. We have our stocking wholesalers in Delhi, Bangalore, Surat, (Gujarat), Hyderabad, Pune (Maharashtra) and Chennai in Tamil Nadu. Check once our Copper Nickel Tongue and Groove Flanges cost preceding buying Alloy 20 Tongue and Groove Flanges from India or China. basically mail for our live pile of Tongue and Groove Flanges to check types and sizes with our pre-arranged stock we can give you best expense of AWWA C207 Class d Small Tongue and Groove Flange.

We can equivalently give free occasion of Class 150 Tongue and Groove Blind Flange,Omaa Metal Sources is having our Dealer and Distributor in Raipur, Bhosari, Nagpur, Delhi, Ghaziabad, Vadodara, Tamil Nadu, Jaipur, Ahmedabad, Indore, Chennai (Madras), Maharashtra, Ludhiana, Karnataka, Khopoli, Punjab, Uttar Pradesh, Aurangabad, Faridabad, Haryana,Bangalore, Pune, Karnataka, Rajkot, Madhya Pradesh, Chhattisgarh, Kolhapur, West-Bengal, Gurgaon, Rajasthan, Kolkata, Gujarat. So if you are looking for best expense of Tongue and Groove Flanges or ANSI B16.5 Tongue and Groove Flanges, Carbon Steel Large Groove Flange near you with most restricted time improvement or free example of Tongue And Groove Pipe Flanges.

Specification of Small Tongue And Groove Flanges

ASME B16.5 Tongue And Groove Flanges Size Chart 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Tongue Flanges Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Small Tongue And Groove Flanges Pressure Rating ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Tongue And Groove Face Flange
Tongue And Groove Face Flange Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Small Tongue And Groove Flanges
JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Tongue And Groove Face Flange
UNI 6Bar 10Bar 16Bar 25Bar 40Bar Tongue Flanges
EN 6Bar 10Bar 16Bar 25Bar 40Bar Tongue And Groove Blind Flange
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most common types of Tongue And Groove Pipe Flanges Forged / Threaded / Screwed / Plate
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique
  • Forged, Heat treated and machined
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations
Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin Indian / West Europe / Japan / USA / Korean
Manufacturer of

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
Small Tongue And Groove Flanges: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

  • B.S: BS4504 , BS3293, BS1560, BS10
  • AS 2129: Table D; Table E; Table H
  • ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
  • ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • American standard (ANSI)
  • German (DIN)
  • British standard (BS)
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Tongue And Groove Blind Flange
  • The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Tongue Flanges Uses & application
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Export to Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Material of Tongue And Groove Face Flange

  •  Carbon Steel Tongue And Groove Face Flange
    •  A105 Tongue And Groove Flanges
  •  Alloy Steel High-Temp Tongue And Groove Face Flange
    •  A182 Gr F1 Tongue Flanges
    •  A182 Gr F11 Small Tongue And Groove Flanges
    •  A182 Gr F12 Tongue And Groove Face Flange
    •  A182 Gr F22 Tongue And Groove Flanges
    •  A182 Gr F5 Tongue And Groove Pipe Flanges
    •  A182 Gr F9 Tongue And Groove Face Flange
  •  Alloy Steel Low-Temp Tongue And Groove Blind Flange
    •  A350 Gr LF2 Small Tongue And Groove Flanges
    •  A350 Gr LF3 Tongue And Groove Flanges
  •  Austenitic Stainless Steel Groove and Tongue Flange
    •  A182 Gr F304 Tongue And Groove Blind Flange
    •  A182 Gr F316 Tongue And Groove Face Flange
    •  A182 Gr F321 Small Tongue And Groove Flanges
    •  A182 Gr F347 Tongue And Groove Flanges
    •  A182 Gr F304L Tongue Flanges
    •  A182 Gr F316L Tongue And Groove Face Flange
    •  A182 Gr F317 Tongue And Groove Face Flange
    •  A182 Gr F317L Small Tongue And Groove Flanges
    •  A182 Gr F321 Tongue Flanges
    •  A182 Gr F310 Tongue And Groove Pipe Flanges
    •  A182 Gr 347 Tongue And Groove Flanges
  •  Nickel Alloy Small Tongue And Groove Flanges
    •  ASTM B564 Tongue And Groove Pipe Flanges
    •  astm b564 uns n06600 Small Tongue And Groove Flanges
    •  astm b564 uns n06625 Tongue And Groove Blind Flange
    •  astm b564 uns no4400 Tongue And Groove Face Flange
    •  astm b564 uns n08810 Small Tongue And Groove Flanges
    •  astm b564 uns n08811 Tongue Flanges
    •  astm b564 uns n08825 Tongue And Groove Flanges
    •  astm b564 uns n04400 Tongue And Groove Face Flange
    •  astm b564 uns n10276 Tongue And Groove Face Flange
    •  astm b564 uns n10665 Tongue And Groove Pipe Flanges
  •  Titanium Tongue And Groove Blind Flange
    •  astm b381 grade f2 Tongue And Groove Pipe Flanges
    •  astm b381 f5 Tongue And Groove Face Flange
    •  astm b381 f3 Tongue And Groove Flanges
    •  astm b381 f12 Tongue And Groove Face Flange
    •  astm b381 f7 Small Tongue And Groove Flanges
    •  Other grades: ASTM B381 F1, F2, F2H, F3, F4, F5, F6, F7, F7H, F9, F10, F11, F12, F13, F14, F15, F16, F16H, F17, F18, F19, F20, F21, F23, F24, F25, F26 , F26H, F27, F28, F29, F30, F31, F32, F33, F34, F35, F36, F37, F38 Tongue Flanges



Dimensions of Tongue And Groove Face Flange

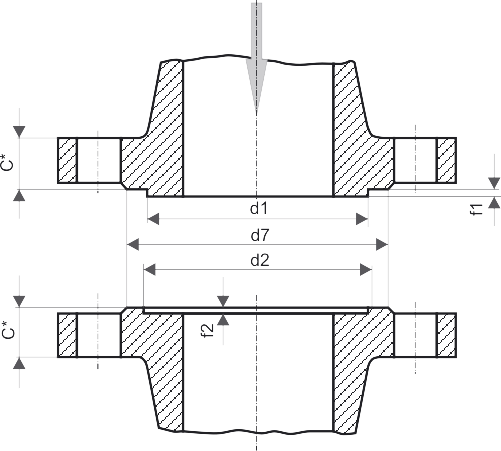

ASME B16.5 Groove & Tongue Flanges Dimension

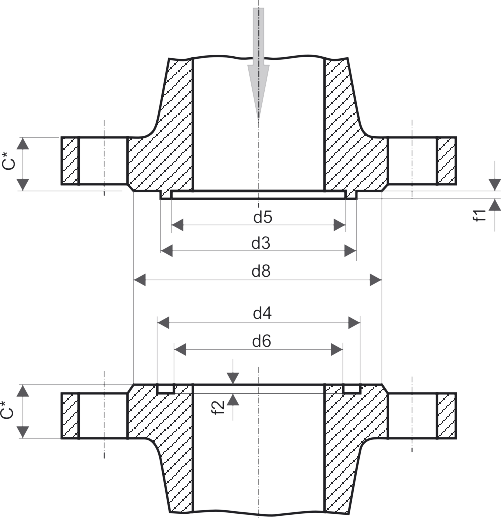

ASME B16.5 Groove & Tongue Flanges Dimension

DN d1 d2 d3 d4 d5 d6 d7 d8 f1 f2
½" 1,38
(35,1)		 1,44
(36,6)		 1,38
(35,1)		 1,44
(36,6)		 1,00
(25,4)		 0,94
(23,9)		 1,81
(46,0)		 1,75
(44,5)		 0,25
(6,4)		 0,19
(4,8)
¾" 1,69
(42,9)		 1,75
(44,5)		 1,69
(42,9)		 1,75
(44,5)		 1,31
(33,3)		 1,25
(31,8)		 2,12
(53,8)		 2,06
(52,3)		 0,25
(6,4)		 0,19
(4,8)
1" 2,00
(50,8)		 2,06
(52,3)		 1,88
(47,7)		 1,94
(49,3)		 1,50
(38,1)		 1,44
(36,6)		 2,44
(62,0)		 2,25
(57,2)		 0,25
(6,4)		 0,19
(4,8)
1¼" 2,50
(63,5)		 2,56
(65,0)		 2,25
(57,2)		 2,31
(58,7)		 1,88
(47,8)		 1,81
(46,0)		 2,94
(74,7)		 2,62
(66,6)		 0,25
(6,4)		 0,19
(4,8)
1½" 2,88
(73,2)		 2,94
(74,7)		 2,50
(63,5)		 2,56
(65,0)		 2,12
(53,8)		 2,06
(52,3)		 3,31
(84,1)		 2,88
(73,2)		 0,25
(6,4)		 0,19
(4,8)
2" 3,62
(92,0)		 3,69
(93,7)		 3,25
(82,6)		 3,31
(84,1)		 2,88
(73,0)		 2,81
(71,4)		 4,06
(103,1)		 3,62
(92,0)		 0,25
(6,4)		 0,19
(4,8)
2½" 4,12
(104,6)		 4,19
(106,4)		 3,75
(95,2)		 3,81
(96,8)		 3,38
(85,8)		 3,31
(84,1)		 4,56
(115,8)		 4,12
(104,6)		 0,25
(6,4)		 0,19
(4,8)
3" 5,00
(127,0)		 5,06
(128,5)		 4,62
(117,5)		 4,69
(119,1)		 4,25
(108,0)		 4,19
(106,4)		 5,44
(138,2)		 5,00
(127,0)		 0,25
(6,4)		 0,19
(4,8)
4" 6,19
(157,2)		 6,25
(158,8)		 5,69
(144,5)		 5,75
(146,1)		 5,19
(131,8)		 5,12
(130,0)		 6,62
(168,1)		 6,19
(157,2)		 0,25
(6,4)		 0,19
(4,8)
5" 7,31
(185,7)		 7,38
(187,5)		 6,81
(173,0)		 6,88
(174,8)		 6,31
(160,3)		 6,25
(158,8)		 7,75
(196,9)		 7,31
(185,7)		 0,25
(6,4)		 0,19
(4,8)
6" 8,50
(215,9)		 8,56
(217,5)		 8,00
(203,2)		 8,06
(204,7)		 7,50
(190,5)		 7,44
(189,0)		 8,94
(227,0)		 8,50
(215,9)		 0,25
(6,4)		 0,19
(4,8)
8" 10,62
(269,8)		 10,69
(271,5)		 10,00
(254,0)		 10,06
(255,5)		 9,38
(238,3)		 9,31
(236,5)		 11,06
(281,0)		 10,62
(269,8)		 0,25
(6,4)		 0,19
(4,8)
10" 12,75
(323,5)		 12,81
(325,4)		 12,00
(304,8)		 12,06
(306,3)		 11,25
(285,8)		 11,19
(284,2)		 13,19
(335,0)		 12,75
(323,5)		 0,25
(6,4)		 0,19
(4,8)
12" 15,00
(381,0)		 15,06
(382,5)		 14,25
(362,0)		 14,31
(363,5)		 13,50
(342,9)		 13,44
(341,4)		 15,44
(392,2)		 15,00
(381,0)		 0,25
(6,4)		 0,19
(4,8)
14" 16,25
(412,8)		 16,31
(414,3)		 15,50
(393,7)		 15,56
(395,2)		 14,75
(374,7)		 14,69
(373,1)		 16,69
(423,9)		 16,25
(412,8)		 0,25
(6,4)		 0,19
(4,8)
16" 18,50
(469,9)		 18,56
(471,5)		 17,62
(447,6)		 17,69
(449,3)		 16,75
(425,5)		 16,69
(423,9)		 18,94
(481,0)		 18,50
(469,9)		 0,25
(6,4)		 0,19
(4,8)
18" 21,00
(533,4)		 21,06
(535,0)		 20,12
(511,0)		 20,19
(512,8)		 19,25
(489,0)		 19,19
(487,4)		 21,44
(544,6)		 21,00
(533,4)		 0,25
(6,4)		 0,19
(4,8)
20" 23,00
(584,2)		 23,06
(585,8)		 22,00
(558,8)		 22,06
(560,3)		 21,00
(533,4)		 20,94
(531,9)		 23,44
(595,4)		 23,00
(584,2)		 0,25
(6,4)		 0,19
(4,8)
24" 27,25
(692,2)		 27,31
(693,7)		 26,25
(666,8)		 26,31
(668,3)		 25,25
(641,4)		 25,19
(639,8)		 27,69
(703,3)		 27,25
(692,2)		 0,25
(6,4)		 0,19
(4,8)

Weight Chart Of Tongue Flange

NPS
(Inches)		 DN
(mm)		 FLANGE OD
A MM		 FLANGE THICKNESS D
MM		 SLIP ON FLANGE WEIGHT (KGS) WELD NECK FLANGE WEIGHT (KGS) BLIND FLANGE WEIGHT (KGS)
1/ 2 15 88.9 11.2 0.4 0.5 0.4
3/ 4 20 98.6 12.7 0.6 0.7 0.6
1 25 108 14.2 0.8 1 0.9
1 1/ 4 32 117.3 15.7 1 1.3 1.2
1 1/ 2 40 127 17.5 1.3 1.7 1.5
2 50 152.4 19.1 2.1 2.6 2.4
2 1/ 2 65 177.8 22.4 3.3 4.1 3.9
3 80 190.5 23.9 3.9 4.9 4.9
3 1/ 2 90 215.9 23.9 4.8 6.1 6.2
4 100 228.6 23.9 5.3 6.8 7.0
5 125 254 23.9 6.1 8.6 8.6
6 150 279.4 25.4 7.5 10.6 11.3
8 200 342.9 28.4 12.1 17.6 19.6
10 250 406.4 30.2 16.5 24 28.6
12 300 482.6 31.8 26.2 36.5 43.2
14 350 533.4 35.1 34.6 48.4 58.1
16 400 596.9 36.6 44.8 60.6 76.1
18 450 635 39.6 48.9 68.3 93.7
20 500 698.5 42.9 61.9 84.5 122.0
24 600 812.8 47.8 86.9 115 185.0
