Disturbing impact proposes Duestuche Normang.It is a German Standard.All materials that are made in Germany are as shown by the DIN Standard. Agitation 2527 PN40 Flange are reliably welded or screwed. Object Standard Flanges are open in PN6 to PN40 Standards. The loyalty of the DIN 2527 PN40 Flange joint depends basically on consistent control of the joint creation measure.

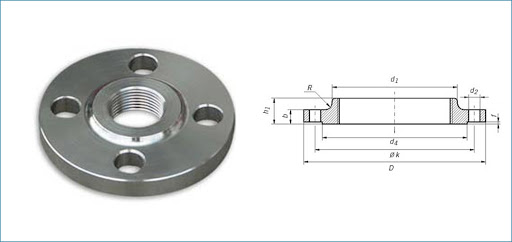

DIN 2527 Flanges, DIN 2527 Flanges Manufacturers, DIN 2527 Flanges Exporters, DIN 2527 Flanges Suppliers, DIN 2527 Flanges Stockists. DIN 2527 PN10 Flanges Manufacturer, View Dimension of DIN 2527 PN16 Flange. Stockist of DIN 2527 PN10 Blind Flange and DIN Pipe Flanges in UAE, Check price list of DIN Standard Flanges in Indonesia.

Object Pipe Flanges creators in India. If you are hoping to buy quality DIN 2527 PN40 Flange, most ideal condition, cost in India Contact us, Check respect once-over of DIN PN6 Slip On Flanges including DIN 2527 PN10 Flange Dimensions, DIN PN40 Weld Neck Flanges and DIN 2527 Flange.W We are controlling in DIN 2527 obviously incapacitated spine which is open in DIN 2527 pn40 rib assessments.

DIN 2527 Flanges Manufacturers in Mumbai, DIN 2527 Flanges Exporters in Mumbai, DIN 2527 Flanges Suppliers in Mumbai, DIN 2527 Flanges Stockists in Mumbai, Contact us for DIN 2527 PN40 Flange. We have DIN 2527 PN40 Flange manufacturers factory in India, ask for DIN 2527 PN40 Flange free sample.

Omaa Metal Sources Our things will be staggering DIN 2527 PN40 Flange with plastic cover to ensure the constancy of fixing surface. Air pocket pack, by then put in to give wooden impeccably in to things during transportation to discourage effects, scratches and various conditions experienced or as shown by customer need.

All DIN 2527 PN16 Flange are discrete with compound name, outside division over, divider thickness and warmth number. Additional information like standard and blend numbers can be added on request on DIN Standard Flanges. We are one of the key transporter, money related master, suppliers and exporters of DIN 2527 PN10 Blind Flange. While getting unrefined components to make DIN 2527 PN40 Flange, our key commitment is to ensure that in each down to earth sense, vague quality and consistency exists in our deftly base.

Omaa Metal Sources is most clear supplier of DIN Pipe Flanges to Egypt, Turkey, France, Sweden, UAE, Canada, USA, UK, Russia, Malaysia, Oman, Indonesia, Iran, Germany, Thailand, Kuwait, Singapore, Israel, Bahrain, Italy, Qatar, Australia, Sri Lanka and Saudi Arabia. We are supplier of Flange DIN 2527 Pn10, DIN Blind Flanges, DIN 2527 Flange and DIN 2527 PN10 Blind Flange at any rate unimaginably cost considering reasonable master hours in India and heavenly DIN 2527 PN16 Flange, most ideal condition, cost open in Mumbai, India. View DIN 2527 PN16 Flange Dimensions.

Specification of DIN 2527 Blind Flanges

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
DIN 2527 Flange Size Chart	1/2" (15 NB) to 48" (1200NB) DN10~DN5000
DIN Flanges Standards	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
DIN Flanges Pressure Rating ANSI	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
DIN 2527 Blind Flanges Pressure Calculation in DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
JIS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
UNI	6Bar 10Bar 16Bar 25Bar 40Bar
EN	6Bar 10Bar 16Bar 25Bar 40Bar
Coating	Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most common types of DIN	Forged / Threaded / Screwed / Plate
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Production technique	Forged, Heat treated and machined
Connect Type/ Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment	Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin	Indian / West Europe / Japan / USA / Korean
Manufacturer of	ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. DIN: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
DIN Flanges Uses & application	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Export to	Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc

Material of DIN 2527 PN10 Blind Flange

Carbon Steel DIN Flanges	ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80)
Stainless Steel DIN Flanges	ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409
Alloy Steel DIN Flanges	ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91
Titanium DIN Flanges	ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 ASTM R50250/GR.1 \| R50400/GR.2 \| R50550/GR.3 \| R50700/GR.4 \| GR.6 \|R52400/GR.7 \| R53400/GR.12 \| R56320/GR.9 \|R56400/GR.5
Copper DIN Flanges	T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel DIN Flanges	ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Brass DIN Flanges	3602 / 2604 / H59 / H62 / etc.
Inconel DIN Flanges	ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 DIN
Hastelloy DIN Flanges	ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges
Monel DIN Flanges	ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 DIN Flanges	ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium DIN Flanges	5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel DIN Flanges	ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC
Duplex DIN Flanges	S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex DIN Flanges	S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy DIN Flanges	ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges
254 Smo DIN Flanges	ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547
Nimonic DIN Flanges	Nimonic 75, Nimonic 80A, Nimonic 90
Other DIN Flanges material	Tin bronze, Alumunum bronze, Lead bronze

Dimensions of DIN 2527 PN16 Flange

DIN 2527 PN6 (in mm)
Nominal Pipe Size	Flange Dia	Thk of Flange	Dia of Bolt Circle	No. of	Dia of Bolt Holes
DIN	D	B	K	holes	D2	KG
10	75	12	50	4	11	0.38
15	80	12	55	4	11	0.44
20	90	14	65	4	11	0.66
25	100	14	75	4	11	0.82
32	120	14	90	4	14	1.18
40	130	14	100	4	14	1.39
50	140	14	110	4	14	1.62
65	160	14	130	4	14	2.14
80	190	16	150	4	48	3.43
100	210	16	170	4	18	4.22
125	240	18	200	8	18	6.10
150	265	18	225	8	18	7.51
175	295	20	255	8	18	10.41
200	320	20	280	8	18	12.31
250	375	22	335	12	18	18.55
300	440	22	395	12	22	25.47
350	490	22	445	12	22	31.78
400	540	22	495	16	22	38.50
500	645	24	600	20	22	60.13
600	755	28	705	20	26	96.07
700	860	30	810	24	26	133.80
800	975	32	920	24	30	183.29
900	1075	36	1020	24	30	251.70
1000	1175	42	1120	28	30	350.98

DIN 2527 PN10 (in mm)
Nominal Pipe Size	Flange Dia	Thk of Flange	Dia of Bolt Circle	No. of	Dia of Bolt Holes
DIN	D	B	K	holes	D2	KG
10	90	14	60	4	14	0.63
15	95	14	65	4	14	0.71
20	105	16	75	4	14	1.01
25	115	16	85	4	14	1.23
32	140	16	100	4	18	1.81
40	150	16	110	4	18	2.09
50	165	18	125	4	18	2.88
65	185	18	145	4	18	3.65
80	200	20	160	4	18	4.61
100	220	20	180	4	18	5.65
125	250	22	210	8	18	8.13
150	285	22	240	8	22	10.49
175	315	24	270	8	22	14.11
200	340	24	295	8	22	16.53
250	395	26	350	12	22	24.08
300	445	26	400	12	22	30.81
350	505	26	460	12	22	39.64
400	565	26	515	16	26	49.44
500	670	28	620	20	26	75.16
600	780	30	725	20	30	109.20
700	895	32	840	24	30	153.77
800	1015	36	950	24	33	222.86
900	1115	40	1050	24	33	299.08
1000	1230	46	1160	28	36	418.78

DIN 2527 PN16 (in mm)
Nominal Pipe Size	Flange Dia	Thk of Flange	Dia of Bolt Circle	No. of	Dia of Bolt Holes
DIN	D	B	K	holes	D2	KG
10	90	14	60	4	14	0.63
15	95	14	65	4	14	0.71
20	105	16	75	4	14	1.01
25	115	16	85	4	14	1.23
32	140	16	100	4	18	1.81
40	150	16	110	4	18	2.09
50	165	18	125	4	18	2.88
65	185	18	145	4	18	3.65
80	200	20	160	8	18	4.61
100	220	20	180	8	18	5.65
125	250	22	210	8	18	8.13
150	285	22	240	8	22	10.49
175	315	24	270	8	22	14.11
200	340	24	295	12	22	16.26
250	405	26	355	12	26	24.99
300	460	28	410	12	26	35.13
350	520	30	470	16	26	48.01
400	580	32	525	16	30	83.53
500	715	36	650	20	33	108.63
600	780	38	770	20	36	136.47
700	895	40	840	24	36	189.87
800	1015	44	950	24	39	269.57
900	1115	48	1050	28	39	355.31
1000	1230	52	1170	28	42	469.20

DIN 2527 PN25 (in mm)
Nominal Pipe Size	Flange Dia	Thk of Flange	Dia of Bolt Circle	No. of	Dia of Bolt Holes
DIN	D	B	K	holes	D2	KG
90	90	16	60	4	14	0.72
95	95	16	65	4	14	0.81
105	105	18	75	4	14	1.14
115	115	18	85	4	14	1.38
140	140	18	100	4	18	2.03
150	150	18	110	4	18	2.35
165	165	20	125	4	18	3.20
185	185	22	145	4	18	4.29
200	200	24	160	8	18	5.54
235	220	24	190	8	22	7.60
270	250	26	220	8	26	10.82
300	285	28	250	8	26	14.60
330	315	28	280	8	26	17.40
360	340	30	310	12	26	22.47
425	405	32	370	12	30	33.51
485	460	34	430	12	30	46.29
555	520	38	490	16	33	68.08
620	580	40	550	16	36	89.59
730	715	45	660	20	36	140.66
845	780	48	770	20	39	202.30
960	895	50	875	24	42	271.05
1085	1015	54	990	24	48	373.52
1185	1115	58	1090	28	48	479.07
1320	1230	62	1210	28	56	632.47

DIN 2527 PN40 (in mm)
Nominal Pipe Size	Flanges Dia	Thk of Flange	Dia of Bolt Circle	No. of	Dia of Bolt Holes
DIN	D	B	K	holes	D2	KG
10	90	16	60	4	14	0.72
15	95	16	65	4	14	0.81
20	105	18	75	4	14	1.14
25	115	18	85	4	14	1.38
32	140	18	100	4	18	2.03
40	150	18	110	4	18	2.35
50	165	20	125	4	18	3.20
65	185	22	145	8	18	4.29
80	200	24	160	8	18	5.54
100	235	24	190	8	22	7.60
125	270	26	220	8	26	10.82
150	300	28	250	8	26	14.60
175	350	32	295	12	30	22.04
200	375	34	320	12	30	27.21
250	450	38	385	12	33	44.38
300	515	42	450	16	33	64.17
350	580	46	510	16	36	89.52
400	660	50	585	16	39	126.76
500	755	56	670	20	42	184.63
600	890	62	795	20	48	285.17
700	995	64	900	24	48	368.83
800	1140	70	1030	24	56	528.39
900	1250	76	1140	28	56	690.99
1000	1360	84	1250	28	56	912.42

DIN 2527 PN64 (in mm)
Nominal Pipe Size	Flanges Dia	Thk of Flange	Dia of Bolt Circle	No. of	Dia of Bolt Holes
DIN	D	B	K	holes	D2	KG
10	90	20	70	4	14	1.04
15	95	20	75	4	14	1.16
20	105	24	100	4	18	2.54
25	115	24	110	4	22	3.07
32	140	26	125	4	22	3.97
40	150	26	135	4	22	4.51
50	165	26	160	4	22	5.69
65	185	28	170	8	22	6.88
80	200	30	200	8	26	9.99
100	235	34	240	8	30	15.91
125	270	36	280	8	33	23.32
150	300	40	310	8	33	30.35
175	350	42	345	12	36	39.17
200	375	46	400	12	38	56.64
250	450	52	460	12	36	81.14
300	515	56	525	16	39	112.95
350	580	60	585	16	42	152.30
400	660	-	-	16	-	-
500	755	-	-	20	-	-
600	890	-	-	20	-	-
700	995	-	-	24	-	-
800	1140	-	-	24	-	-
900	1250	-	-	28	-	-
1000	1360	-	-	28	-	-

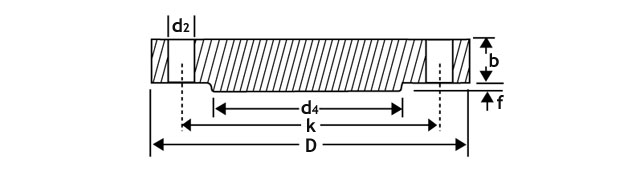

DIN 2527 PN100 (in mm)
Nominal Pipe Size	Flange Dia	Thk of Flange	Dia of Bolt Circle	Dia of R/F	Thk of R/F	No. of	Dia of Bolt Holes
DN	D	B	K	D4	F	Holes	D2	KG
10	100	20	70	40	2	4	14	1.04
15	105	20	75	45	2	4	14	1.16
25	140	24	100	68	2	4	18	2.54
32	155	24	110	78	2	4	22	3.07
40	170	26	125	88	3	4	22	3.97
50	195	28	145	102	3	4	26	5.64
65	220	30	170	122	3	8	26	7.43
80	230	32	180	138	3	8	26	8.84
100	265	36	210	162	3	8	30	13.31
125	315	40	250	188	3	8	33	21.30
150	355	44	290	218	3	12	33	29.43
175	385	48	320	260	3	12	33	38.75
200	430	52	360	285	3	12	36	52.66
250	505	60	430	345	3	12	39	85.41
300	585	68	500	410	4	16	42	128.05
350	655	74	560	465	4	16	48	174.53

Weight Chart Of DIN 2527 PN40 Flange

NPS (Inches)	DN (mm)	FLANGE OD A MM	FLANGE THICKNESS D MM	SLIP ON FLANGE WEIGHT (KGS)	WELD NECK FLANGE WEIGHT (KGS)	BLIND FLANGE WEIGHT (KGS)
1/ 2	15	88.9	11.2	0.4	0.5	0.4
3/ 4	20	98.6	12.7	0.6	0.7	0.6
1	25	108	14.2	0.8	1	0.9
1 1/ 4	32	117.3	15.7	1	1.3	1.2
1 1/ 2	40	127	17.5	1.3	1.7	1.5
2	50	152.4	19.1	2.1	2.6	2.4
2 1/ 2	65	177.8	22.4	3.3	4.1	3.9
3	80	190.5	23.9	3.9	4.9	4.9
3 1/ 2	90	215.9	23.9	4.8	6.1	6.2
4	100	228.6	23.9	5.3	6.8	7.0
5	125	254	23.9	6.1	8.6	8.6
6	150	279.4	25.4	7.5	10.6	11.3
8	200	342.9	28.4	12.1	17.6	19.6
10	250	406.4	30.2	16.5	24	28.6
12	300	482.6	31.8	26.2	36.5	43.2
14	350	533.4	35.1	34.6	48.4	58.1
16	400	596.9	36.6	44.8	60.6	76.1
18	450	635	39.6	48.9	68.3	93.7
20	500	698.5	42.9	61.9	84.5	122.0
24	600	812.8	47.8	86.9	115	185.0
