Long Neck Weld Flanges

ASME B16.5 Long Weld Neck Flange are continually used for high-pressure applications. To facilitate a Long Weld Neck Raised Face Flange, it is fundamental to finish up the line is being used for, considering the way that inside width of the spine will assemble inside broadness of your line or Fitting. The buttweld joint this rib has with the line close by the respectable focus point makes this rib impenetrable to dishing and a solid association. Treated Steel Long Weld Neck Flange are extraordinary for over the top differences of temperature and in conditions where there may be a huge pile of bowing and treatment of the spines.

Long Neck Weld Flanges, Long Neck Weld Flanges Manufacturers, Long Neck Weld Flanges Exporters, Long Neck Weld Flanges Suppliers, Long Neck Weld Flanges Stockists. ASME B16.5 Long Weld Neck Raised Face Flange Dimensions, Manufacturer of Carbon Steel Long Weld Neck Flange in Mumbai, India.

Awesome Image

ASME B16.5 Long Weld Neck Raised Face Flange producers in India. We are stacking dealer of Long weld neck spine, carbon steel long weld neck rib, ANSI B16 5 long weld neck rib and rtj long weld neck rib at very straightforwardness due to reasonable laborer hours in India and entire wellspring of incomprehensible long weld neck rib 1500#, most ideal situation, cost open in Mumbai, India.

Long Neck Weld Flanges Manufacturers in Mumbai, Long Neck Weld Flanges Exporters in Mumbai, Long Neck Weld Flanges Suppliers in Mumbai, Long Neck Weld Flanges Stockists in Mumbai. Contact Us for Latest Price List of ANSI B16.5 Long Weld Neck Flange, Carbon Steel Long Weld Neck Flange manufacturer in India, Check DIN 86029 PN10 ASTM A182 SS Long Welding Neck Flange Dimensions

Omaa Metal Sources is strong manufacuter of treated steel long weld neck spine embraced by Saudi Aramco. We have coordinated deftly of ASME B 16.5 long weld neck spine.Omaa Metal Sources is stockist of complete level of EN 1092-2 PN16 Long Weld Neck Flange, class 600 long weld neck rib in various sizes.

ASME B16.5 long weld neck spine material, most ideal situation, cost in India, demand latest worth layout of long weld neck rib 600# including Hastelloy long weld neck rib, ASTM A182 SS Long Welding Neck Flange and Raised Face Long Weld Neck Flange. ASME B16.5 LWN Flange and MSS SP-44 Long Weld Neck Flange to Kuwait,Canada, UK, Egypt, Sweden, France, Oman, Turkey, Thailand, Indonesia, Australia, Bahrain, Qatar, Germany, USA, UAE, Italy, Russia, Malaysia, Iran, Israel, Singapore, Sri Lanka and Saudi Arabia.

We are most important supplier and exporter of 300# Long Weld Neck Flange, most ideal situation, cost as we are one of the most incredible supplier and vender of ASME B16.47 Series b 300# LWN Flange in India. We have our stocking sellers in Delhi, Bangalore, Surat, (Gujarat), Hyderabad, Pune (Maharashtra) and Chennai in Tamil Nadu. Check once our Duplex Steel Long Weld Neck Flanges cost going prior to buying BS 4504 PN10 Long Weld Neck Flange from India or China. in like manner mail for our live heap of ASME B16.5 Class 300 Long Weld Neck Flange to check types and sizes with our pre-arranged stock we can give you best expense of Class 600 Long Weld Neck Flange.

We can likewise give free occurrence of Stainless steel long weld neck rib,Omaa Metal Sources is having our Dealer and Distributor in Ghaziabad, Kolkata, Aurangabad, Khopoli, Pune, Tamil Nadu, Jaipur, Madhya Pradesh, Delhi, Punjab, Haryana, Ahmedabad, Bhosari, Karnataka, Nagpur, Faridabad, Karnataka, Rajasthan, Raipur, Ludhiana, Maharashtra, Uttar Pradesh, Chhattisgarh, Vadodara, West-Bengal, Bangalore, Chennai (Madras), Rajkot, Gujarat, Indore, Gurgaon, Kolhapur. So accepting you are looking for best expense of Inconel LWN Flange or ASME B16.5 long weld neck spine, rtj long weld neck rib near you with most restricted time transport or free occurrence of AWWA C207 LWN Flange.

Specification of long weld neck Flanges

ASME B16.5 Long Weld Neck Flange Size Chart 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Long Weld Neck Raised Face Flange Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Rtj Long Weld Neck Flange Pressure Rating ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Slip On Integral Flange
Long WNRF Flange Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Rtj Long Weld Neck Flange
JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Long WNRF Flange
UNI 6Bar 10Bar 16Bar 25Bar 40Bar Long Weld Neck Raised Face Flange
EN 6Bar 10Bar 16Bar 25Bar 40Bar Grooved Long Weld Neck Flange
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most common types of Reducing Long Weld Neck Flange Forged / Threaded / Screwed / Plate
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique
  • Forged, Heat treated and machined
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations
Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin Indian / West Europe / Japan / USA / Korean
Manufacturer of

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
Rtj Long Weld Neck Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

  • B.S: BS4504 , BS3293, BS1560, BS10
  • AS 2129: Table D; Table E; Table H
  • ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
  • ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • American standard (ANSI)
  • German (DIN)
  • British standard (BS)
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Grooved Long Weld Neck Flange
  • The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Long Weld Neck Raised Face Flange Uses & application
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Export to Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Material of Long WNRF Flange

  •  Carbon Steel Slip On Integral Flange
    •  A105 Long Weld Neck Flange
  •  Alloy Steel High-Temp Long WNRF Flange
    •  A182 Gr F1 Long Weld Neck Raised Face Flange
    •  A182 Gr F11 Rtj Long Weld Neck Flange
    •  A182 Gr F12 Slip On Integral Flange
    •  A182 Gr F22 Long Weld Neck Flange
    •  A182 Gr F5 Reducing Long Weld Neck Flange
    •  A182 Gr F9 Long WNRF Flange
  •  Alloy Steel Low-Temp Grooved Long Weld Neck Flange
    •  A350 Gr LF2 Rtj Long Weld Neck Flange
    •  A350 Gr LF3 Long Weld Neck Flange
  •  Austenitic Stainless Steel Long Weld Neck Flange
    •  A182 Gr F304 Grooved Long Weld Neck Flange
    •  A182 Gr F316 Long WNRF Flange
    •  A182 Gr F321 Rtj Long Weld Neck Flange
    •  A182 Gr F347 Long Weld Neck Flange
    •  A182 Gr F304L Long Weld Neck Raised Face Flange
    •  A182 Gr F316L Slip On Integral Flange
    •  A182 Gr F317 Long WNRF Flange
    •  A182 Gr F317L Rtj Long Weld Neck Flange
    •  A182 Gr F321 Long Weld Neck Raised Face Flange
    •  A182 Gr F310 Reducing Long Weld Neck Flange
    •  A182 Gr 347 Long Weld Neck Flange
  •  Nickel Alloy Rtj Long Weld Neck Flange
    •  ASTM B564 Reducing Long Weld Neck Flange
    •  astm b564 uns n06600 Rtj Long Weld Neck Flange
    •  astm b564 uns n06625 Grooved Long Weld Neck Flange
    •  astm b564 uns no4400 Long WNRF Flange
    •  astm b564 uns n08810 Rtj Long Weld Neck Flange
    •  astm b564 uns n08811 Long Weld Neck Raised Face Flange
    •  astm b564 uns n08825 Long Weld Neck Flange
    •  astm b564 uns n04400 Long WNRF Flange
    •  astm b564 uns n10276 Slip On Integral Flange
    •  astm b564 uns n10665 Reducing Long Weld Neck Flange
  •  Titanium Grooved Long Weld Neck Flange
    •  astm b381 grade f2 Reducing Long Weld Neck Flange
    •  astm b381 f5 Slip On Integral Flange
    •  astm b381 f3 Long Weld Neck Flange
    •  astm b381 f12 Long WNRF Flange
    •  astm b381 f7 Rtj Long Weld Neck Flange
    •  Other grades: ASTM B381 F1, F2, F2H, F3, F4, F5, F6, F7, F7H, F9, F10, F11, F12, F13, F14, F15, F16, F16H, F17, F18, F19, F20, F21, F23, F24, F25, F26 , F26H, F27, F28, F29, F30, F31, F32, F33, F34, F35, F36, F37, F38 Long Weld Neck Raised Face Flange



Dimensions of Slip On Integral Flange

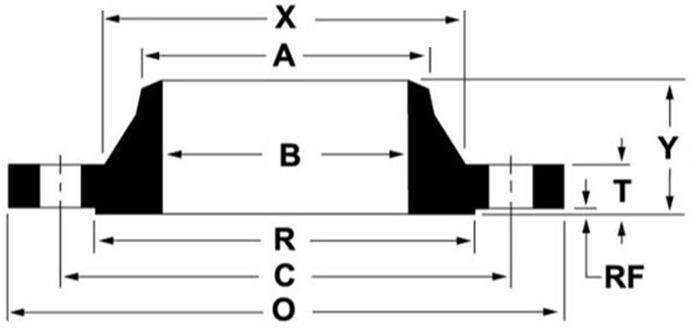

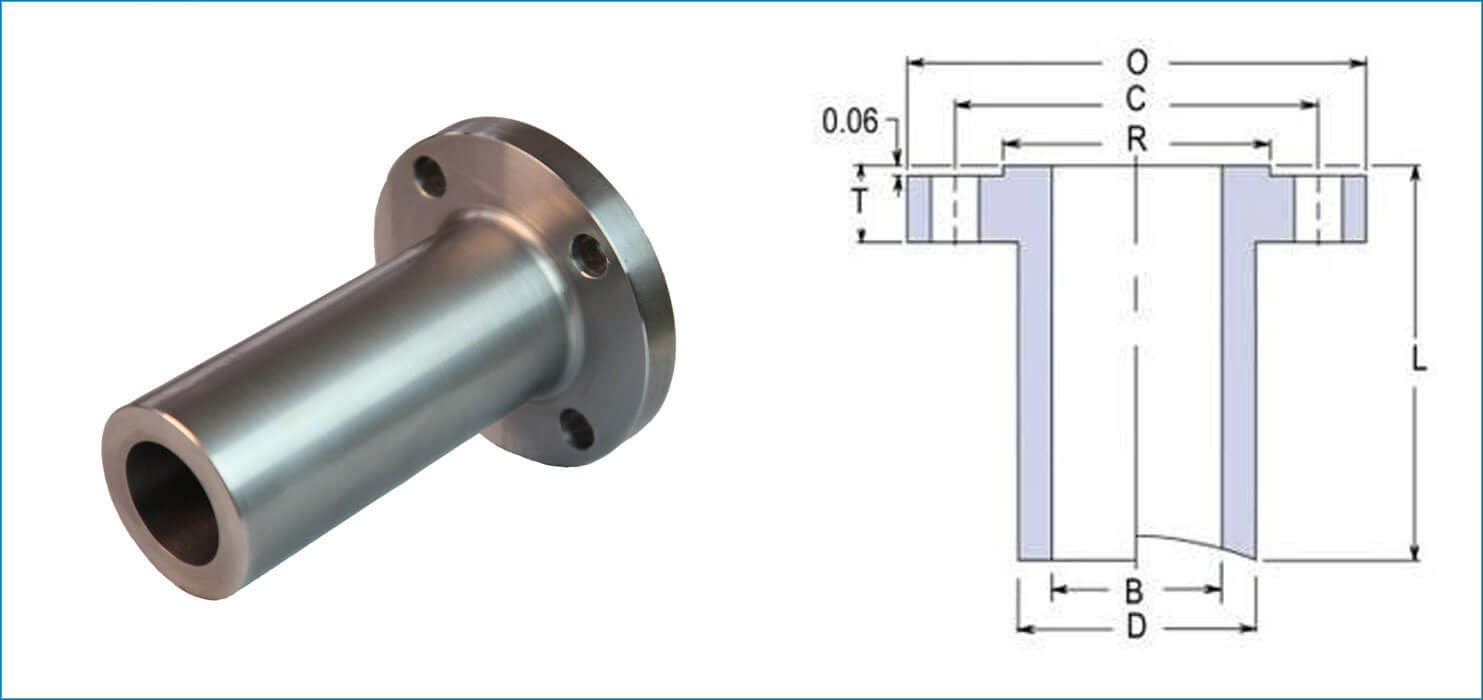

ASME B16.5 Long Neck Weld Flange Dimension

Class 150 Long Weld Neck Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD RF Dia. RF Height PCD No of Bolts Bolt Size UNC RF Stud Length Hole Size
A B C D E F G
1/2 15 90 9.6 30 21.3 34.9 2 60.3 4 1/2 55 5/8
3/4 20 100 11.2 38 26.7 42.9 2 69.9 4 1/2 65 5/8
1 25 110 12.7 49 33.4 50.8 2 79.4 4 1/2 65 5/8
1 1/4 32 115 14.3 59 42.2 63.5 2 88.9 4 1/2 70 5/8
1 1/2 40 125 15.9 65 48.3 73 2 98.4 4 1/2 70 5/8
2 50 150 17.5 78 60.3 92.1 2 120.7 4 5/8 85 3/4
2 1/2 65 180 20.7 90 73 104.8 2 139.7 4 5/8 90 3/4
3 80 190 22.3 108 88.9 127 2 152.4 4 5/8 90 3/4
3 1/2 90 215 22.3 122 101.6 139.7 2 177.8 8 5/8 90 3/4
4 100 230 22.3 135 114.3 157.2 2 190.5 8 5/8 90 3/4
5 125 255 22.3 164 141.3 185.7 2 215.9 8 3/4 95 7/8
6 150 280 23.9 192 168.3 215.9 2 241.3 8 3/4 100 7/8
8 200 345 27 246 219.1 269.9 2 298.5 8 3/4 110 7/8
10 250 405 28.6 305 273 323.8 2 362 12 7/8 115 1
12 300 485 30.2 365 323.8 381 2 431.8 12 7/8 120 1
14 350 535 33.4 400 355.6 412.8 2 476.3 12 1 135 1 1/8
16 400 595 35 457 406.4 469.9 2 539.8 16 1 135 1 1/8
18 450 635 38.1 505 457.2 533.4 2 577.9 16 1 1/8 145 1 1/4
20 500 700 41.3 559 508 584.2 2 635 20 1 1/8 160 1 1/4
24 600 815 46.1 663 610 692.2 2 749.3 20 1 1/4 170 1 3/8

Class 300 Long Weld Neck Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD RF Dia. RF Height PCD No of Bolts Bolt Size UNC RF Stud Length Hole Size
A B C D E F G
1/2 15 95 12.7 38 21.3 34.9 2 66.7 4 1/2 65 5/8
3/4 20 115 14.3 48 26.7 42.9 2 82.6 4 5/8 75 3/4
1 25 125 15.9 54 33.4 50.8 2 88.9 4 5/8 75 3/4
1 1/4 32 135 17.5 64 42.2 63.5 2 98.4 4 5/8 85 3/4
1 1/2 40 155 19.1 70 48.3 73 2 114.3 4 3/4 90 7/8
2 50 165 20.7 84 60.3 92.1 2 127 8 5/8 90 3/4
2 1/2 65 190 23.9 100 73 104.8 2 149.2 8 3/4 100 7/8
3 80 210 27 117 88.9 127 2 168.3 8 3/4 110 7/8
3 1/2 90 230 28.6 133 101.6 139.7 2 184.2 8 3/4 110 7/8
4 100 255 30.2 146 114.3 157.2 2 200 8 3/4 115 7/8
5 125 280 33.4 178 141.3 185.7 2 235 8 3/4 120 7/8
6 150 320 35 206 168.3 215.9 2 269.9 12 3/4 120 7/8
8 200 380 39.7 260 219.1 269.9 2 330.2 12 7/8 140 1
10 250 445 46.1 321 273 323.8 2 387.4 16 1 160 1 1/8
12 300 520 49.3 375 323.8 381 2 450.8 16 1 1/8 170 1 1/4
14 350 585 52.4 425 355.6 412.8 2 514.4 20 1 1/8 180 1 1/4
16 400 650 55.6 483 406.4 469.9 2 571.5 20 1 1/4 190 1 3/8
18 450 710 58.8 533 457 533.4 2 628.6 24 1 1/4 195 1 3/8
20 500 775 62 587 508 584.2 2 685.8 24 1 1/4 205 1 3/8
24 600 915 68.3 702 610 692.2 2 812.8 24 1 1/2 230 1 5/8

Class 400 Long Weld Neck Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD RF Dia. RF Height PCD No of Bolts Bolt Size UNC RF Stud Length Hole Size
A B C D E F G
1/2 15 95 14.3 38 21.3 34.9 7 66.7 4 1/2 75 5/8
3/4 20 115 15.9 48 26.7 42.9 7 82.6 4 5/8 90 3/4
1 25 125 17.5 54 33.4 50.8 7 88.9 4 5/8 90 3/4
1 1/4 32 135 20.7 64 42.2 63.5 7 98.4 4 5/8 95 3/4
1 1/2 40 155 22.3 70 48.3 73 7 114.3 4 3/4 110 7/8
2 50 165 25.4 84 60.3 92.1 7 127 8 5/8 110 3/4
2 1/2 65 190 28.6 100 73 104.8 7 149.2 8 3/4 120 7/8
3 80 210 31.8 117 88.9 127 7 168.3 8 3/4 125 7/8
3 1/2 90 230 35 133 101.6 N/A 7 184.2 8 7/8 140 1
4 100 255 35 146 114.3 157.2 7 200 8 7/8 140 1
5 125 280 38.1 178 141.3 185.7 7 235 8 7/8 145 1
6 150 320 41.3 206 168.3 215.9 7 269.9 12 7/8 150 1
8 200 380 47.7 260 219.1 269.9 7 330 12 1 170 1 1/8
10 250 445 54 321 273 323.8 7 387.4 16 1 1/8 190 1 1/4
12 300 520 57.2 375 323.8 381 7 450.8 16 1 1/4 205 1 3/8
14 350 585 60.4 425 355.6 412.8 7 514.4 20 1 1/4 210 1 3/8
16 400 650 63.5 483 406.4 469.9 7 571.5 20 1 3/8 220 1 1/2
18 450 710 66.7 533 457 533.4 7 628.6 24 1 3/8 230 1 1/2
20 500 775 69.9 587 508 584.2 7 685.8 24 1 1/2 240 1 3/4
24 600 915 76.2 702 610 692.2 7 812.8 24 1 3/4 265 1 7/8

Class 600 Long Weld Neck Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD RF Dia. RF Height PCD No of Bolts Bolt Size UNC RF Stud Length Hole Size
A B C D E F G
1/2 15 95 14.3 38 21.3 34.9 7 66.7 4 1/2 75 5/8
3/4 20 115 15.9 48 26.7 42.9 7 82.6 4 5/8 90 3/4
1 25 125 17.5 54 33.4 50.8 7 88.9 4 5/8 90 3/4
1 1/4 32 135 20.7 64 42.2 63.5 7 98.4 4 5/8 95 3/4
1 1/2 40 155 22.3 70 48.3 73 7 114.3 4 3/4 110 7/8
2 50 165 25.4 84 60.3 92.1 7 127 8 5/8 110 3/4
2 1/2 65 190 28.6 100 73 104.8 7 149.2 8 3/4 120 7/8
3 80 210 31.8 117 88.9 127 7 168.3 8 3/4 125 7/8
3 1/2 90 230 35 133 101.6 N/A 7 184.2 8 7/8 140 1
4 100 275 38.1 152 114.3 157.2 7 215.9 8 7/8 145 1
5 125 330 44.5 189 141.3 185.7 7 266.7 8 1 165 1 1/8
6 150 355 47.7 222 168.3 215.9 7 292.1 12 1 170 1 1/8
8 200 420 55.6 273 219.1 269.9 7 349.2 12 1 1/8 190 1 1/4
10 250 510 63.5 343 273 323.8 7 431.8 16 1 1/4 215 1 3/8
12 300 560 66.7 400 323.8 381 7 489 20 1 1/4 220 1 3/8
14 350 605 69.9 432 355.6 412.8 7 527 20 1 3/8 235 1 1/2
16 400 685 76.2 495 406.4 469.9 7 603.2 20 1 1/2 255 1 5/8
18 450 745 82.6 546 457 533.4 7 654 20 1 5/8 275 1 3/4
20 500 815 88.9 610 508 584.2 7 723.9 24 1 5/8 285 1 3/4

Class 900 Long Weld Neck Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD RF Dia. RF Height PCD No of Bolts Bolt Size UNC RF Stud Length Hole Size
A B C D E F G
1/2 15 120 22.3 38 21.3 34.9 7 82.6 4 3/4 110 7/8
3/4 20 130 25.4 44 26.7 42.9 7 88.9 4 3/4 115 7/8
1 25 150 28.6 52 33.4 50.8 7 101.6 4 7/8 125 1
1 1/4 32 160 28.6 64 42.2 63.5 7 111.1 4 7/8 125 1
1 1/2 40 180 31.8 70 48.3 73 7 123.8 4 1 140 1 1/8
2 50 215 38.1 105 60.3 92.1 7 165.1 8 7/8 145 1
2 1/2 65 245 41.3 124 73 104.8 7 190.5 8 1 160 1 1/8
3 80 240 38.1 127 88.9 127 7 190.5 8 7/8 145 1
4 100 290 44.5 159 114.3 157.2 7 235 8 1 1/8 170 1 1/4
5 125 350 50.8 190 141.3 185.7 7 279.4 8 1 1/4 190 1 3/8
6 150 380 55.6 235 168.3 215.9 7 317.5 12 1 1/8 190 1 1/4
8 200 470 63.5 298 219.1 269.9 7 393.7 12 1 3/8 220 1 1/2
10 250 545 69.9 368 273 323.8 7 469.9 16 1 3/8 235 1 1/2
12 300 610 79.4 419 323.8 381 7 533.4 20 1 3/8 255 1 1/2
14 350 640 85.8 451 355.6 412.8 7 558.8 20 1 1/2 275 1 5/8
16 400 705 88.9 508 406.4 469.9 7 616 20 1 5/8 285 1 3/4
18 450 785 101.6 565 457 533.4 7 685.8 20 1 7/8 325 2
20 500 855 108 622 508 584.2 7 749.3 20 2 350 2 1/8
24 600 1040 139.7 749 610 692.2 7 901.7 20 2 1/2 440 2 5/8

Class 1500 Long Weld Neck Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD RF Dia. RF Height PCD No of Bolts Bolt Size UNC RF Stud Length Hole Size
A B C D E F G
1/2 15 120 22.3 38 21.3 34.9 7 82.6 4 3/4 110 7/8
3/4 20 130 25.4 44 26.7 42.9 7 88.9 4 3/4 115 7/8
1 25 150 28.6 52 33.4 50.8 7 101.6 4 7/8 125 1
1 1/4 32 160 28.6 64 42.2 63.5 7 111.1 4 7/8 125 1
1 1/2 40 180 31.8 70 48.3 73 7 123.8 4 1 140 1 1/8
2 50 215 38.1 105 60.3 92.1 7 165.1 8 7/8 145 1
2 1/2 65 245 41.3 124 73 104.8 7 190.5 8 1 160 1 1/8
3 80 265 47.7 133 88.9 127 7 203.2 8 1 1/8 180 1 1/4
4 100 310 54 162 114.3 157.2 7 241.3 8 1 1/4 195 1 3/8
5 125 375 73.1 197 141.3 185.7 7 292.1 8 1 1/2 250 1 5/8
6 150 395 82.6 229 168.3 215.9 7 317.5 12 1 3/8 260 1 1/2
8 200 485 92.1 292 219.1 269.9 7 393.7 12 1 5/8 290 1 3/4
10 250 585 108 368 273 323.8 7 482.6 12 1 7/8 335 2
12 300 675 123.9 451 323.8 381 7 571.5 16 2 375 2 1/8
14 350 750 133.4 495 355.6 412.8 7 635 16 2 1/4 405 2 3/8
16 400 825 146.1 552 406.4 469.9 7 704.8 16 2 1/2 445 2 5/8
18 450 915 162 597 457 533.4 7 774.7 16 2 3/4 495 2 7/8
20 500 985 177.8 641 508 584.2 7 831.8 16 3 540 3 1/8
24 600 1170 203.2 762 610 692.2 7 990.6 16 3 1/2 615 3 5/8

Class 2500 Long Weld Neck Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD RF Dia. RF Height PCD No of Bolts Bolt Size UNC RF Stud Length Hole Size
A B C D E F G
1/2 15 135 30.2 43 21.3 34.9 7 88.9 4 3/4 120 7/8
3/4 20 140 31.8 51 26.7 42.9 7 95.2 4 3/4 125 7/8
1 25 160 35 57 33.4 50.8 7 108 4 7/8 140 1
1 1/4 32 185 38.1 73 42.2 63.5 7 130.2 4 1 150 1 1/8
1 1/2 40 205 44.5 79 48.3 73 7 146 4 1 1/8 170 1 1/4
2 50 235 50.9 95 60.3 92.1 7 171.4 8 1 180 1 1/8
2 1/2 65 265 57.2 114 73 104.8 7 196.8 8 1 1/8 195 1 1/4
3 80 305 66.7 133 88.9 127 7 228.6 8 1 1/4 220 1 3/8
4 100 355 76.2 165 114.3 157.2 7 273 8 1 1/2 255 1 5/8
5 125 420 92.1 203 141.3 185.7 7 323.8 8 1 3/4 300 1 7/8
6 150 485 108 235 168.3 215.9 7 368.3 8 2 345 2 1/8
8 200 550 127 305 219.1 269.9 7 438.2 12 2 380 2 1/8
10 250 675 165.1 375 273 323.8 7 539.8 12 2 1/2 490 2 5/8
12 300 760 184.2 441 323.8 381 7 619.1 12 2 3/4 540 2 7/8

Weight Chart Of Long Weld Neck Raised Face Flange

NPS
(Inches)		 DN
(mm)		 FLANGE OD
A MM		 FLANGE THICKNESS D
MM		 SLIP ON FLANGE WEIGHT (KGS) WELD NECK FLANGE WEIGHT (KGS) BLIND FLANGE WEIGHT (KGS)
1/ 2 15 88.9 11.2 0.4 0.5 0.4
3/ 4 20 98.6 12.7 0.6 0.7 0.6
1 25 108 14.2 0.8 1 0.9
1 1/ 4 32 117.3 15.7 1 1.3 1.2
1 1/ 2 40 127 17.5 1.3 1.7 1.5
2 50 152.4 19.1 2.1 2.6 2.4
2 1/ 2 65 177.8 22.4 3.3 4.1 3.9
3 80 190.5 23.9 3.9 4.9 4.9
3 1/ 2 90 215.9 23.9 4.8 6.1 6.2
4 100 228.6 23.9 5.3 6.8 7.0
5 125 254 23.9 6.1 8.6 8.6
6 150 279.4 25.4 7.5 10.6 11.3
8 200 342.9 28.4 12.1 17.6 19.6
10 250 406.4 30.2 16.5 24 28.6
12 300 482.6 31.8 26.2 36.5 43.2
14 350 533.4 35.1 34.6 48.4 58.1
16 400 596.9 36.6 44.8 60.6 76.1
18 450 635 39.6 48.9 68.3 93.7
20 500 698.5 42.9 61.9 84.5 122.0
24 600 812.8 47.8 86.9 115 185.0

Long Neck Weld Flanges Manufacturers in India, Long Neck Weld Flanges Exporters in India, Long Neck Weld Flanges Suppliers in India, Long Neck Weld Flanges Stockists in India. Raised Face Long Weld Neck Flange Supplier in Mumbai, ASME B16.5 Long Weld Neck Flange, MSS SP-44 2 Inch Long Weld Neck Flange stockholder, View Heavy Barrel Long Weld Neck Flange Price List in Mumbai, 300# Long Weld Neck Flange stockist in UAE. Get free quote for ASME B16.47 Series b 300# LWN Flange in Mumbai, ANSI B16.5 Class 150 Self Reinforced Long Weld Neck Flange, EN 1092-1 Type 02 Flat Face Long Weld Neck Flange Exporter in India, We are one of the oldes Stainless Steel Long Weld Neck Flange Supplier in Mumbai. ASME B16.5 Class 150 Long Weld Neck Flange exporter in India.

Flanges

Our Services

Quick Enquiry

Copyright © 2024 All Rights Reserved. Omaa Metal Sources. Developed By LHBM Infotech
