Loose Flanges

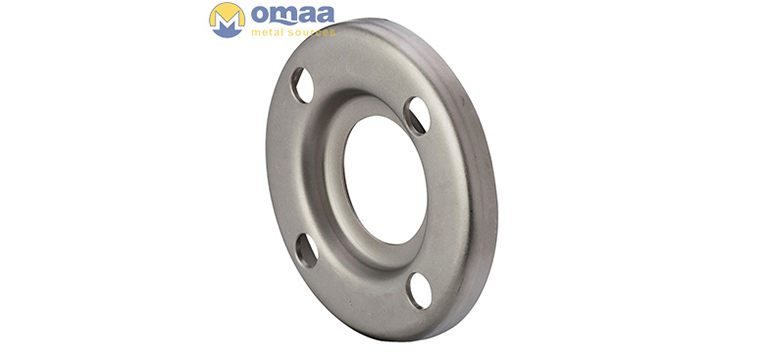

ASME B16.5 Loose spine types to fit elbows, valves and fundamentally such a pipeline part being used. Carbon Steel Loose rib is a contraption that is welded onto the finishing of a touch of line to make half of a flanged coupling. Containing level steel passing on with amaze openings around the edge and an opening in the middle the size of the line that is ought to have been welded onto cemented steel free rib, the part can be made of carbon steel or treated steel to meet the proposed application.

Loose Flanges, Loose Flanges Manufacturers, Loose Flanges Exporters, Loose Flanges Suppliers, Loose Flanges Stockists. DIN 2642 Carbon Steel Loose Flanges Manufactuer, Check Loose flange in available standards as follows PN10, EN1092-1, ASME B16.5, jis 10k Stockholder of EN 1092-2 PN16 Loose plate flanges in Mumbai, India.

Awesome Image

ASME B16.5 Loose Flange producers in India. We are dispatching SS Loose Flanges, Loose Exhaust Flange, EN 1092-2 PN16 Loose plate spines and Loose Plate Flanges at confined costs contemplating sensible expert hours in India and fundamental wellspring of top of the line ASME B16.47 Series a Loose Flange, most ideal circumstance, cost open in Mumbai, India.

Loose Flanges Manufacturers in Mumbai, Loose Flanges Exporters in Mumbai, Loose Flanges Suppliers in Mumbai, ANSI B16.5 Loose Flange Supplier in Mumbai, ASME B16.5 Loose Flange, ANSI B16.5 Class 150 Loose plate flanges stockholder, View MSS SP-44 SS Loose Pipe Flange Price List in Mumbai, DIN 86029 PN10 Duplex Steel Loose hubbed flange stockist in UAE.Contact Us for Latest Price List of ASME B16.47 Series a Loose Flange, Loose Exhaust Flange manufacturer in India, Check ASME B16.5 Class 300 Loose Flange Dimensions.

Omaa Metal Sources We have facilitated store of DIN 2642 Loose spine, PN10 Loose Flange, EN1092-1 Loose Flange and jis 10k Loose Flange At best worth once-over in India. Tempered Steel Loose Flange confirmed by Saudi Aramco. We keep up monster dexterously of MSS SP-44 SS Loose Pipe Flange.Omaa Metal Sources is researcher and shipper of Duplex Steel Loose hubbed spine, DIN 86029 PN10 Loose hubbed rib in different sizes.

Stacking gigantic degree of ASTM A350 Gr LF2 Loose Flanges to purchase, most ideal circumstance, cost in India, enquire our cost of Carbon Steel Loose Flange including Flat Face Loose Flanges, AWWA C207 Loose steel Flanges and ASME B16.5 Class 300 Loose Flange. Free Pipe Flange to Thailand, Russia, Kuwait, France, Australia, Malaysia, USA, Iran, Italy, Sweden, Egypt, Bahrain, Turkey, UAE, Germany, Qatar, Singapore, Indonesia, UK, Israel, Oman,Canada, Sri Lanka and Saudi Arabia.

We are most prominent giving relationship of ASTM A105 Loose Flanges, most ideal circumstance, cost as we are one of the most astonishing provider and transporter of Alloy steel Loose Flange in India. We have our stocking wholesalers in Delhi, Bangalore, Surat, (Gujarat), Hyderabad, Pune (Maharashtra) and Chennai in Tamil Nadu. Check once our ASTM B381 F5 Loose Flanges cost going before purchasing Forged Loose Hydraulic Flange from India or China. besides mail for our live deftly of Hastelloy Loose Sae Flange to check types and sizes with our set up stock we can give you best cost of EN 1092-1 Type 02 Carbon Steel Loose Flange.

We can similarly give free event of ASME B16.5 Loose Flange,Omaa Metal Sources is having our Dealer and Distributor in Aurangabad, Kolkata, Faridabad, Ludhiana, Chennai (Madras), Chhattisgarh, Vadodara, Tamil Nadu, Pune, Ahmedabad, Maharashtra, Nagpur,Bangalore, Punjab, Rajkot, Delhi, West-Bengal, Khopoli, Raipur, Indore, Haryana, Gujarat, Uttar Pradesh, Jaipur, Rajasthan, Karnataka, Ghaziabad, Gurgaon, Kolhapur, Bhosari, Madhya Pradesh, Karnataka. So on the off chance that you are searching for best cost of BS 4504 PN10 Split free or ASME B16.47 Series b Loose Flange, Stainless Steel Loose Flange close to you with briefest time improvement or free event of ANSI b16 5 Loose Flange.

Specification of Loose Flanges

ASME B16.5 Loose Flanges Size Chart 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Loose Plate Flanges Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Loose Flanges Pressure Rating ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Loose Steel Flanges
Loose Plate Flanges Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Loose Flanges
JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Loose Plate Flanges
UNI 6Bar 10Bar 16Bar 25Bar 40Bar Loose Plate Flanges
EN 6Bar 10Bar 16Bar 25Bar 40Bar Split Loose Flanges
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most common types of Loose Hubbed Flange Forged / Threaded / Screwed / Plate
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique
  • Forged, Heat treated and machined
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations
Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin Indian / West Europe / Japan / USA / Korean
Manufacturer of

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
Loose Flanges: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

  • B.S: BS4504 , BS3293, BS1560, BS10
  • AS 2129: Table D; Table E; Table H
  • ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
  • ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • American standard (ANSI)
  • German (DIN)
  • British standard (BS)
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Split Loose Flanges
  • The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Loose Plate Flanges Uses & application
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Export to Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Material of Loose Plate Flange

  •  Carbon Steel Loose Steel Flanges
    •  A105 Loose Flanges
  •  Alloy Steel High-Temp Loose Plate Flanges
    •  A182 Gr F1 Loose Plate Flanges
    •  A182 Gr F11 Loose Flanges
    •  A182 Gr F12 Loose Steel Flanges
    •  A182 Gr F22 Loose Flanges
    •  A182 Gr F5 Loose Hubbed Flange
    •  A182 Gr F9 Loose Plate Flanges
  •  Alloy Steel Low-Temp Split Loose Flanges
    •  A350 Gr LF2 Loose Flanges
    •  A350 Gr LF3 Loose Flanges
  •  Austenitic Stainless Steel Loose Flange
    •  A182 Gr F304 Split Loose Flanges
    •  A182 Gr F316 Loose Plate Flanges
    •  A182 Gr F321 Loose Flanges
    •  A182 Gr F347 Loose Flanges
    •  A182 Gr F304L Loose Plate Flanges
    •  A182 Gr F316L Loose Steel Flanges
    •  A182 Gr F317 Loose Plate Flanges
    •  A182 Gr F317L Loose Flanges
    •  A182 Gr F321 Loose Plate Flanges
    •  A182 Gr F310 Loose Hubbed Flange
    •  A182 Gr 347 Loose Flanges
  •  Nickel Alloy Loose Flanges
    •  ASTM B564 Loose Hubbed Flange
    •  astm b564 uns n06600 Loose Flanges
    •  astm b564 uns n06625 Split Loose Flanges
    •  astm b564 uns no4400 Loose Plate Flanges
    •  astm b564 uns n08810 Loose Flanges
    •  astm b564 uns n08811 Loose Plate Flanges
    •  astm b564 uns n08825 Loose Flanges
    •  astm b564 uns n04400 Loose Plate Flanges
    •  astm b564 uns n10276 Loose Steel Flanges
    •  astm b564 uns n10665 Loose Hubbed Flange
  •  Titanium Split Loose Flanges
    •  astm b381 grade f2 Loose Hubbed Flange
    •  astm b381 f5 Loose Steel Flanges
    •  astm b381 f3 Loose Flanges
    •  astm b381 f12 Loose Plate Flanges
    •  astm b381 f7 Loose Flanges
    •  Other grades: ASTM B381 F1, F2, F2H, F3, F4, F5, F6, F7, F7H, F9, F10, F11, F12, F13, F14, F15, F16, F16H, F17, F18, F19, F20, F21, F23, F24, F25, F26 , F26H, F27, F28, F29, F30, F31, F32, F33, F34, F35, F36, F37, F38 Loose Plate Flanges

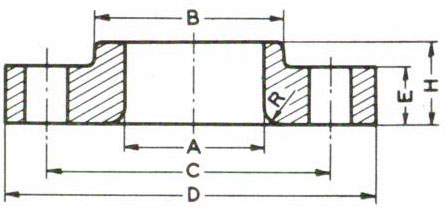

Dimensions of Loose Steel Flange

ASME B16.5 Loose Flange Dimension
Drilling
Nominal Bore Dia.
(D)		 Thick.
(E)		 Dia.
(B)		 Dia.
(A)		 Height
(H)		 Nbr Holes Dia.
(C)
1/2" 90 11.2 30 22.9 16 4 15.87 60.3
3/4" 100 12.7 38 28.2 16 4 15.87 69.9
1" 110 14.3 49 34.9 17 4 15.87 79.4
1 1/4" 115 15.9 59 43.7 21 4 15.87 88.9
1 1/2" 125 17.5 65 50.0 22 4 15.87 98.4
2" 150 20.7 78 62.5 25 4 19.05 120.7
2 1/2" 180 22.3 90 75.4 29 4 19.05 139.7
3" 190 23.9 108 91.4 30 4 19.05 152.4
3 1/2" 215 23.9 122 104.1 32 8 19.05 177.8
4" 230 23.9 135 116.8 33 8 19.05 190.5
5" 255 23.9 164 144.4 36 8 22.22 215.9
6" 280 25.4 192 171.4 40 8 22.22 241.3
8" 345 28.6 246 222.2 44 8 22.22 298.5
10" 405 30.2 305 277.4 49 12 25.40 362.0
12" 485 31.8 365 328.2 56 12 25.40 431.8
14" 535 35.0 400 360.2 79 12 28.57 476.3
16" 595 36.6 457 411.2 87 16 28.57 539.8
18" 635 39.7 505 462.3 97 16 31.75 577.9
20" 700 42.9 559 514.4 103 20 31.75 635.0
24" 815 47.7 663 616.0 111 20 34.92 749.3

The dimensions are in millimeters
Source : ASME B16.5 – 2018

Drilling
Nominal Bore Dia.
(D)		 Thick.
(E)		 Dia.
(B)		 Dia.
(A)		 Height
(H)		 Nbr Holes Dia.
(C)
1/2" 95 14.3 38 22.9 22 4 15.87 66.7
3/4" 115 15.9 48 28.2 25 4 19.05 82.6
1" 125 17.5 54 34.9 27 4 19.05 88.9
1 1/4" 135 19.1 64 43.7 27 4 19.05 98.4
1 1/2" 155 20.7 70 50.0 30 4 22.22 114.3
2" 165 22.3 84 62.5 33 8 19.05 127.0
2 1/2" 190 25.4 100 75.4 38 8 22.22 149.2
3" 210 28.6 117 91.4 43 8 22.22 168.3
3 1/2" 230 30.2 133 104.1 44 8 22.22 184.2
4" 255 31.8 146 116.8 48 8 22.22 200.0
5" 280 35.0 178 144.4 51 8 22.22 235.0
6" 320 36.6 206 171.4 52 12 22.22 269.9
8" 380 41.3 260 222.2 62 12 25.40 330.2
10" 445 47.7 321 277.4 95 16 28.57 387.4
12" 520 50.8 375 328.2 102 16 31.75 450.8
14" 585 54.0 425 360.2 111 20 31.75 514.4
16" 650 57.2 483 411.2 121 20 34.29 571.5
18" 710 60.4 533 462.3 130 24 34.29 628.6
20" 775 63.5 587 514.4 140 24 34.29 685.8
24" 915 69.9 702 616.0 152 24 41.27 812.8

The dimensions are in millimeters
Source : ASME B16.5 – 2018

Drilling
Nominal Bore Dia.
(D)		 Thick.
(E)		 Dia.
(B)		 Dia.
(A)		 Height
(H)		 Nbr Holes Dia.
(C)
1/2" 95 14.3 38 23.6 22 4 15.87 66.7
3/4" 115 15.9 48 29.0 25 4 19.05 82.6
1" 125 17.5 54 35.8 27 4 19.05 88.9
1 1/4" 135 20.7 64 44.4 29 4 19.05 98.4
1 1/2" 155 22.3 70 50.6 32 4 22.22 114.3
2" 165 25.4 84 63.5 37 8 19.05 127.0
2 1/2" 190 28.6 100 76.2 41 8 22.22 149.2
3" 210 31.8 117 92.2 46 8 22.22 168.3
3 1/2" 230 35.0 133 104.9 49 8 25.40 184.2
4" 275 38.1 152 117.6 54 8 25.40 215.9
5" 330 44.5 189 144.4 60 8 28.57 266.7
6" 355 47.7 222 171.4 67 12 28.57 292.1
8" 420 55.6 273 222.2 76 12 31.75 349.2
10" 510 63.5 343 276.2 111 16 34.92 431.8
12" 560 66.7 400 328.6 117 20 34.92 489.0
14" 605 69.9 432 360.4 127 20 38.10 527.0
16" 685 76.2 495 411.2 140 20 41.27 603.2
18" 745 82.6 546 462.0 152 20 44.45 6654.0
20" 815 88.9 610 512.8 165 24 44.45 723.9
24" 940 101.6 718 614.4 184 24 50.80 838.2

The dimensions are in millimeters
Source : ASME B16.5 – 2018

Weight Chart Of Loose Plate Flange

NPS
(Inches)		 DN
(mm)		 FLANGE OD
A MM		 FLANGE THICKNESS D
MM		 SLIP ON FLANGE WEIGHT (KGS) WELD NECK FLANGE WEIGHT (KGS) BLIND FLANGE WEIGHT (KGS)
1/ 2 15 88.9 11.2 0.4 0.5 0.4
3/ 4 20 98.6 12.7 0.6 0.7 0.6
1 25 108 14.2 0.8 1 0.9
1 1/ 4 32 117.3 15.7 1 1.3 1.2
1 1/ 2 40 127 17.5 1.3 1.7 1.5
2 50 152.4 19.1 2.1 2.6 2.4
2 1/ 2 65 177.8 22.4 3.3 4.1 3.9
3 80 190.5 23.9 3.9 4.9 4.9
3 1/ 2 90 215.9 23.9 4.8 6.1 6.2
4 100 228.6 23.9 5.3 6.8 7.0
5 125 254 23.9 6.1 8.6 8.6
6 150 279.4 25.4 7.5 10.6 11.3
8 200 342.9 28.4 12.1 17.6 19.6
10 250 406.4 30.2 16.5 24 28.6
12 300 482.6 31.8 26.2 36.5 43.2
14 350 533.4 35.1 34.6 48.4 58.1
16 400 596.9 36.6 44.8 60.6 76.1
18 450 635 39.6 48.9 68.3 93.7
20 500 698.5 42.9 61.9 84.5 122.0
24 600 812.8 47.8 86.9 115 185.0
