ASME B16.5 Lap joint rib can be refined by two strategies. Right when the line material is exceptional the "lap" is illustrated by frivolity the line material after the free spine has been fitted. In the event that the coordinating material is rapidly weldable a "lap" end can be butt welded to the line. A105 Lap joint Flange are critical for non-metallic coordinating and sections. Most materials are tremendously improved in pressure than in strain. The Stainless Steel Lap joint Flange is held in pressure by the free rib which is in strain because of the stun load.

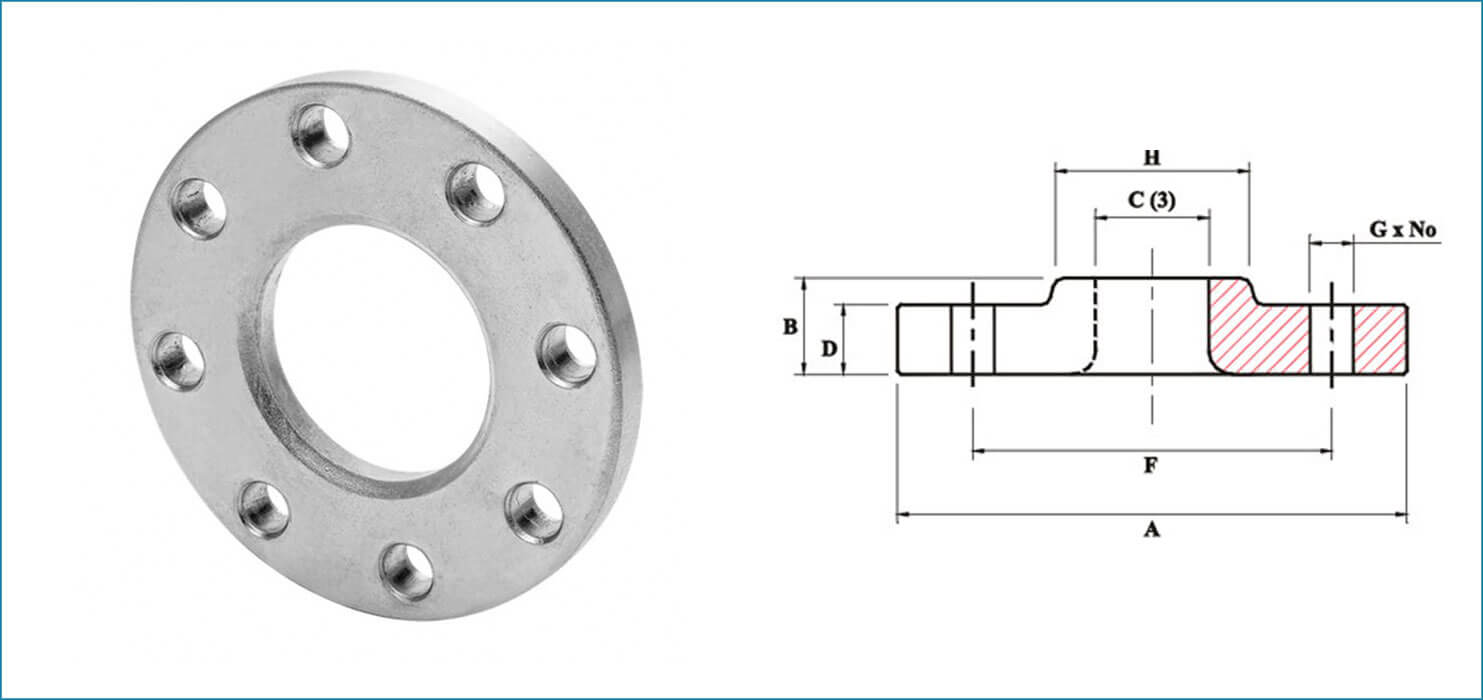

Lap Joint Flanges, Lap Joint Flanges Manufacturers, Lap Joint Flanges Exporters, Lap Joint Flanges Suppliers, Lap Joint Flanges Stockists. ASME B16.5 Lap joint flange dimensions, Manufacturer of Carbon Steel Lap Joint Flange in Mumbai, India.

Awesome Image

Stainless Steel Lap joint Flange creators in India. We are giving Lap Joint Pipe Flange, ASME B16.47 Lap Joint Flange, 2 inch lap joint spine and Lap Joint Backing Flange at moderate expense taking into account sensible pro hours in India and colossal wellspring of mind blowing Lap Joint Pipe Flanges, most ideal circumstance, cost accessible in Mumbai, India. Are you searching for Lap Joint Flange With Stub End reach us for same, Check Lap Joint Flange Dimensions and Lap Joint Flange Weight Chart to purchase Lap Joint Flange Welding. We have obvious Lap Joint Flange Types and they are essential for Installation Also. View Lap Joint Flange Stub End Dimensions.

Lap Joint Flanges Manufacturers in Mumbai, Lap Joint Flanges Exporters in Mumbai, Lap Joint Flanges Suppliers in Mumbai, Lap Joint Flanges Stockists in Mumbai. ASME B16.47 Series b Type A Lap Joint Flange Supplier in Mumbai, ASME B16.5 Lap Joint Flange, DIN 86029 PN10 Ductile Iron Lap Joint Flange stockholder, View ASME B16.5 Class 600 Lap Joint Flange Price List in Mumbai, Stainless Steel Lap Joint Flange stockist in UAE.

Omaa Metal Sourcesis conspicuous maker of Copper Nickel Lap Joint Flange upheld by Saudi Aramco. We are most noteworthy stockist of MSS SP-44 Lap Joint Flange.Omaa Metal Sources is a distributer of complete degree of ANSI 150# Lap Joint Flange, ANSI B16.5 Class 150 Lap Joint Flange in different sizes.

On the off chance that you are intending to purchase ANSI B16.5 Socket Weld Flanges, most ideal circumstance, cost in India, check our cost of Stainless Steel Socket Weld Flange including Class 300 Socket Weld Flange, Socket Weld Ring Joint Flange and 3 Inch Socket Weld Flange. Socket Weld Forged Flanges to UK, USA, Sweden, Israel, France, Italy, Canada, UAE, Australia, Germany, Russia, Oman, Kuwait, Qatar, Iran, Turkey, Egypt, Bahrain, Indonesia, Malaysia, Singapore, Thailand, Sri Lanka and Saudi Arabia.

We are most prominent stockist of MSS SP-44 Lap Joint Flange, most ideal circumstance, cost as we are one of the best provider and transporter of Carbon Steel Lap Joint Flange in India. We have our stocking transporters in Delhi, Bangalore, Surat, (Gujarat), Hyderabad, Pune (Maharashtra) and Chennai in Tamil Nadu. Check once our ANSI B16.5 Lap Joint Flange cost prior to purchasing RTJ Lap Joint Flange from India or China. additionally mail for our live pile of Carbon Steel Lap Joint Flange to check types and sizes with our prepared stock we can give you best cost of Copper nickel lap joint rib.

We can in like way give free instance of Raised Face Lap Joint Flange,Omaa Metal Sources is having our Dealer and Distributor in Delhi, Aurangabad, Ghaziabad, West-Bengal, Bhosari, Rajasthan, Gurgaon, Kolkata, Tamil Nadu, Khopoli, Punjab, Faridabad, Pune, Madhya Pradesh, Raipur, Maharashtra, Kolhapur, Jaipur, Ludhiana, Chennai (Madras), Gujarat, Indore, Ahmedabad, Rajkot, Nagpur, Vadodara, Karnataka,Bangalore, Uttar-Pradesh, Karnataka, Chhattisgarh, Haryana. So in the event that you are searching for best cost of AWWA C207 A105 Lap Joint Flange or ASME B16.47 Series b Lap Joint Flange, ASME B16.5 Class 600 Lap Joint Flange close to you with most brief timeframe transport or free instance of ASME B16.5 Lap Joint Flange.

Specification of Lap Joint Flanges

ASME B16.5 Lap Joint Flange Size Chart 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Lap Joint Pipe Flanges Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
RTJ Lap Joint Flange Pressure Rating ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Lap Joint Stub End Flanges
RF Lap Joint Flange Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 RTJ Lap Joint Flange
JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K RF Lap Joint Flange
UNI 6Bar 10Bar 16Bar 25Bar 40Bar Lap Joint Pipe Flanges
EN 6Bar 10Bar 16Bar 25Bar 40Bar Lap Joint Ring Flange
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized Stainless Steel Lap Joint Flange
Most common types of Lap Joint Weld Flange Forged / Threaded / Screwed / Plate
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique
  • Forged, Heat treated and machined
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations

Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin Indian / West Europe / Japan / USA / Korean
Manufacturer of

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
RTJ Lap Joint Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

  • B.S: BS4504 , BS3293, BS1560, BS10
  • AS 2129: Table D; Table E; Table H
  • ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
  • ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • American standard (ANSI)
  • German (DIN)
  • British standard (BS)
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Lap Joint Ring Flange
  • The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Lap Joint Pipe Flanges Uses & application
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Export to Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Material of Lap Joint Flange

  • Carbon Steel Lap Joint Stub End Flanges
    • A105 Lap Joint Flange
  • Alloy Steel High-Temp RF Lap Joint Flange
    • A182 Gr F1 Lap Joint Pipe Flanges
    • A182 Gr F11 RTJ Lap Joint Flange
    • A182 Gr F12 Lap Joint Stub End Flanges
    • A182 Gr F22 Lap Joint Flange
    • A182 Gr F5 Lap Joint Weld Flange
    • A182 Gr F9 RF Lap Joint Flange
  • Alloy Steel Low-Temp Lap Joint Ring Flange
    • A350 Gr LF2 RTJ Lap Joint Flange
    • A350 Gr LF3 Lap Joint Flange
  • Austenitic Stainless Steel Lap Joint Flange
    • A182 Gr F304 Lap Joint Ring Flange
    • A182 Gr F316 RF Lap Joint Flange
    • A182 Gr F321 RTJ Lap Joint Flange
    • A182 Gr F347 Lap Joint Flange
    • A182 Gr F304L Lap Joint Pipe Flanges
    • A182 Gr F316L Lap Joint Stub End Flanges
    • A182 Gr F317 RF Lap Joint Flange
    • A182 Gr F317L RTJ Lap Joint Flange
    • A182 Gr F321 Lap Joint Pipe Flanges
    • A182 Gr F310 Lap Joint Weld Flange
    • A182 Gr 347 Lap Joint Flange
  • Nickel Alloy RTJ Lap Joint Flange
    • ASTM B564 Lap Joint Weld Flange
    • astm b564 uns n06600 RTJ Lap Joint Flange
    • astm b564 uns n06625 Lap Joint Ring Flange
    • astm b564 uns no4400 RF Lap Joint Flange
    • astm b564 uns n08810 RTJ Lap Joint Flange
    • astm b564 uns n08811 Lap Joint Pipe Flanges
    • astm b564 uns n08825 Lap Joint Flange
    • astm b564 uns n04400 RF Lap Joint Flange
    • astm b564 uns n10276 Lap Joint Stub End Flanges
    • astm b564 uns n10665 Lap Joint Weld Flange
  • Titanium Lap Joint Ring Flange
    • astm b381 grade f2 Lap Joint Weld Flange
    • astm b381 f5 Lap Joint Stub End Flanges
    • astm b381 f3 Lap Joint Flange
    • astm b381 f12 RF Lap Joint Flange
    • astm b381 f7 RTJ Lap Joint Flange
    • Other grades: ASTM B381 F1, F2, F2H, F3, F4, F5, F6, F7, F7H, F9, F10, F11, F12, F13, F14, F15, F16, F16H, F17, F18, F19, F20, F21, F23, F24, F25, F26 , F26H, F27, F28, F29, F30, F31, F32, F33, F34, F35, F36, F37, F38 Lap Joint Pipe Flanges



Dimensions of Lap Joint Flange

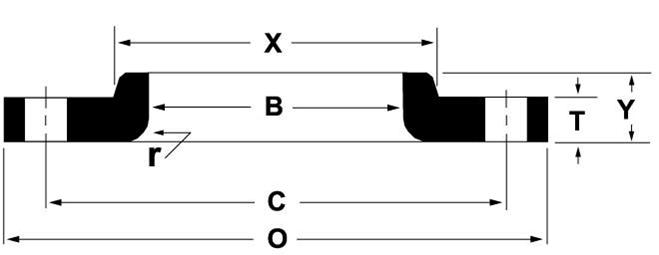

ASME b16.5 Lap Joint Flanges Dimension
Nominal Pipe Size Outside Diameter (O) Thickness (T) Length Thru Hub (Y) Hub Diameter (X) Radius (r) Bore (B) Bolt Circle (C) Number of Holes Diameter of Holes
1/2 3.50 0.44 0.63 1.19 0.13 0.90 2.38 4 0.63
3/4 3.88 0.50 0.63 1.50 0.13 1.11 2.75 4 0.63
1 4.25 0.56 0.69 1.94 0.13 1.38 3.13 4 0.63
1 1/4 4.63 0.63 0.81 2.31 0.19 1.72 3.50 4 0.63
1 1/2 5.00 0.69 0.88 2.56 0.25 1.97 3.88 4 0.63
2 6.00 0.75 1.00 3.06 0.31 2.46 4.75 4 0.75
2 1/2 7.00 0.88 1.13 3.56 0.31 2.97 5.50 4 0.75
3 7.50 0.94 1.19 4.25 0.38 3.60 6.00 4 0.75
3 1/2 8.50 0.94 1.25 4.81 0.38 4.10 7.00 8 0.75
4 9.00 0.94 1.31 5.31 0.44 4.60 7.50 8 0.75
5 10.00 0.94 1.44 6.44 0.44 5.69 8.50 8 0.88
6 11.00 1.00 1.56 7.56 0.50 6.75 9.50 8 0.88
8 13.50 1.13 1.75 9.69 0.50 8.75 11.75 8 0.88
10 16.00 1.19 1.94 12.00 0.50 10.92 14.25 12 1.00
12 19.00 1.25 2.19 14.38 0.50 12.92 17.00 12 1.00
14 21.00 1.38 3.13 15.75 0.50 14.18 18.75 12 1.13
16 23.50 1.44 3.44 18.00 0.50 16.19 21.25 16 1.13
18 25.00 1.56 2.88 19.88 0.50 18.2 22.75 16 1.25
20 27.50 1.69 4.06 22.00 0.50 20.25 25.00 20 1.25
22 29.50 1.81 4.25 24.25 0.50 22.25 27.25 20 1.38
24 32.00 1.88 4.38 26.13 0.50 24.25 29.50 20 1.38

Weight Chart Of Lap Joint Flange

NPS
(Inches)
DN
(mm)
FLANGE OD
A MM
FLANGE THICKNESS D
MM
SLIP ON FLANGE WEIGHT (KGS) WELD NECK FLANGE WEIGHT (KGS) BLIND FLANGE WEIGHT (KGS)
1/ 2 15 88.9 11.2 0.4 0.5 0.4
3/ 4 20 98.6 12.7 0.6 0.7 0.6
1 25 108 14.2 0.8 1 0.9
1 1/ 4 32 117.3 15.7 1 1.3 1.2
1 1/ 2 40 127 17.5 1.3 1.7 1.5
2 50 152.4 19.1 2.1 2.6 2.4
2 1/ 2 65 177.8 22.4 3.3 4.1 3.9
3 80 190.5 23.9 3.9 4.9 4.9
3 1/ 2 90 215.9 23.9 4.8 6.1 6.2
4 100 228.6 23.9 5.3 6.8 7.0
5 125 254 23.9 6.1 8.6 8.6
6 150 279.4 25.4 7.5 10.6 11.3
8 200 342.9 28.4 12.1 17.6 19.6
10 250 406.4 30.2 16.5 24 28.6
12 300 482.6 31.8 26.2 36.5 43.2
14 350 533.4 35.1 34.6 48.4 58.1
16 400 596.9 36.6 44.8 60.6 76.1
18 450 635 39.6 48.9 68.3 93.7
20 500 698.5 42.9 61.9 84.5 122.0
24 600 812.8 47.8 86.9 115 185.0
