Omaa Metal Sources is a novel party, which was set up longer than 10 years back to consider making deals of ASTM A105 Socket Weld Outlets rules in Weld Outlets, Nipple Outlets, Sweep Outlets, 45 Deg Outlets/Lateral Outlets , Socket Weld Outlets, etc in all materials like Stainless Steel , Carbon Steel and High Nickel Alloys. We Manufacture, Export and Supply Pipe Fittings which meets with public and by and large quality guidelines and passing on base which has sorts of stuff adjusting to as a rule explicit level and is all over furnished with a whole plan of bleeding edge plasma refining supplies.
Socket Weld Outlets, Socket Weld Outlets Manufacturers, Socket Weld Outlets Exporters, Socket Weld Outlets Suppliers, Socket Weld Outlets Stockists. ASTM A105 Socket Weld Outlets, ASTM A105 Socket Weld Outlets Dimensions, Outlets Fittings, Outlets
Socket Weld Outlets Manufacturers in Mumbai, Socket Weld Outlets Exporters in Mumbai, Socket Weld Outlets Suppliers in Mumbai, Socket Weld Outlets Stockists in Mumbai.Manufacturer , Exporter & Supplier of ASTM A105 Socket Weld Outlets , ASTM A105 Socket Weld Outlets Dimensions ,Socket Weld Outlets , Outlets Fittings, Outlets
We produce every one of the 3 social gatherings of Fittings, for instance, Buttweld (BW) fittings, Socket Weld (SW) fittings and Threaded (THD) Fittings as indicated by ASTM standards and other International norms. We exchange our incredible ASTM A105 Socket Weld Outlets to Kuwait, Egypt and Qatar.
Specifications of ASTM A105 Weld Outlets
Size : 1/2'' - 24
Type : Weld Outlets, Socket Weld Outlets, Nipple Outlets, Threading Outlets, 45 Deg Outlets / Lateral Outlets, Flexolet butt-weld, Flexolet Threaded and Sweep Outlets
MATERIALS :
Stainless Steel Outlets – SS Weld Outlets
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Duplex Stainless Steel Outlets - Duplex SS Weld Outlets
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
Carbon Steel Outlets – CS Weld Outlets
Standard : ASTM / ASME A/SA 105 / 350 LF 2 / A 516 GR.70 / IS 2062
Nickel Alloy Weld Outlets :
Standard : ASTM / ASME SB 564 / 160 / 472
Grade : UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)

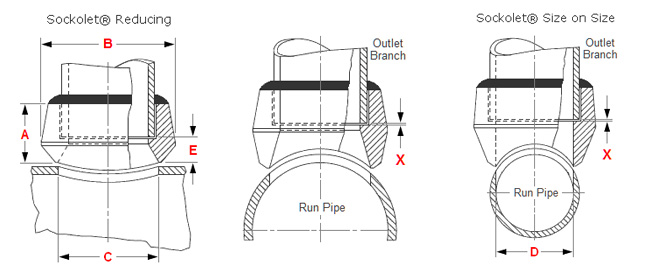

Dimensions of ASTM A105 Socket Weld Outlets :
| REDUCING SIZES | |||||||
| CL 3000 | Outlet Size Inches |
Dimensions | Appx. Wt Pounds |
||||
| A | B | C | D | E | |||
| 1/8 | 3/4 |
1 |
5/8 |
0.269 |
9/32 |
0.10 |
|
| 1/4 | 3/4 |
1 |
5/8 |
0.364 |
9/32 |
0.10 |
|
| 3/8 | 13/16 |
1 1/4 |
3/4 |
0.493 |
7/16 |
0.20 |
|
| 1/2 | 1 |
1 13/32 |
29/32 |
0.622 |
9/16 |
0.30 |
|
| 3/4 | 1 1/16 |
1 23/32 |
1 5/32 |
0.824 |
9/16 |
0.35 |
|
| 1 | 1 5/16 |
2 |
1 7/16 |
1.049 |
25/32 |
0.60 |
|
| 1 1/4 | 1 5/16 |
2 9/16 |
1 3/4 |
1.380 |
3/4 |
0.85 |
|
| 1 1/2 | 1 3/8 |
2 27/32 |
2 |
1.610 |
3/4 |
1.00 |
|
| 2 | 1 1/2 |
3 15/32 |
2 9/16 |
2.067 |
13/16 |
1.60 |
|
| 2 1/2 | 1 9/16 |
4 1/16 |
3 |
2.469 |
3/4 |
2.75 |
|
| 3 | 1 3/4 |
4 13/16 |
3 11/16 |
3.068 |
15/16 |
3.80 |
|
| 3 1/2 | 2 1/8 |
5 7/32 |
4 |
3.548 |
1 |
4.30 |
|
| 4 | 1 7/8 |
5 31/32 |
4 3/4 |
4.026 |
1 1/16 |
7.25 |
|
| 5 | 2 5/8 |
7 5/16 |
5 9/16 |
5.047 |
1 11/32 |
12.00 |
|
| 6 | 2 3/4 |
8 5/8 |
6 11/16 |
6.065 |
1 13/32 |
14.50 |
|
| CL 6000 | 1/2 | 1 1/4 |
1 23/32 |
3/4 |
0.466 |
7/8 |
0.50 |
| 3/4 | 1 7/16 |
1 61/64 |
1 |
0.614 |
7/8 |
0.80 |
|
| 1 | 1 9/16 |
2 7/16 |
1 5/16 |
0.815 |
15/16 |
1.30 |
|
| 1 1/4 | 1 5/8 |
2 23/32 |
1 1/2 |
1.160 |
13/16 |
1.60 |
|
| 1 1/2 | 1 11/16 |
3 1/4 |
1 15/16 |
1.338 |
7/8 |
2.00 |
|
| 2 | 2 1/16 |
4 1/32 |
2 3/4 |
1.689 |
1 3/16 |
5.15 |
|
| |
|||||||
Size on Size |
|||||||
| Outlet Size Inches |
Dimensions | Appx. Wt in Pounds |
|||||
| A | B | C | D | E | |||
| CL3000 | 1/2 | 1 | 1 3/8 | 15/16 | 0.622 | 17/32 | 0.15 |
| 3/4 | 1 1/16 | 1 5/8 | 1 3/16 | 0.824 | 15/32 | 0.25 | |
| 1 | 1 5/16 | 2 | 1 7/16 | 1.049 | 23/32 | 0.45 | |
| 1 1/4 | 1 5/16 | 2 3/8 | 1 3/4 | 1.380 | 9/16 | 0.65 | |
| 1 1/2 | 1 3/8 | 2 7/8 | 2 | 1.610 | 21/32 | 0.85 | |
| 2 | 1 1/2 | 3 1/2 | 2 9/16 | 2.067 | 15/16 | 1.40 | |
| 2 1/2 | 1 9/16 | 4 1/16 | 3 | 2.469 | 3/4 | 2.25 | |
| 3 | 1 3/4 | 4 13/16 | 3 11/16 | 3.068 | 15/16 | 3.75 | |
| 3 1/2 | 1 11/16 | 5 3/8 | 4 7/16 | 3.548 | 11/16 | 4.30 | |
| 4 | 1 7/8 | 6 1/16 | 4 3/4 | 4.026 | 1 1/16 | 6.60 | |
| 5 | 2 7/16 | 7 1/4 | 5 1/4 | 5.047 | 1 | 9.00 | |
| 6 | 2 11/16 | 8 11/16 | 6 1/16 | 6.065 | 1 3/16 | 15.50 | |
Applications Of ASTM A105 Socket Weld Outlets :
- ASTM A105 Socket Weld Outlets used in Chemical and petrochemical processing
- ASTM A105 Socket Weld Outlets used in refineries
- ASTM A105 Socket Weld Outlets used in electronics
- ASTM A105 Socket Weld Outlets used in fertilizer
- ASTM A105 Socket Weld Outlets used in power plant
- ASTM A105 Socket Weld Outlets used in nuclear power
- ASTM A105 Socket Weld Outlets used in oil and gas
- ASTM A105 Socket Weld Outlets used in paper industries
