Omaa Metal Sources is an incredible get-together, which was set up longer than 10 years before consider creating solicitations of ASTM A105 Insert Weld Outlets standards in Weld Outlets, Nipple Outlets, Sweep Outlets, 45 Deg Outlets/Lateral Outlets , Socket Weld Outlets, etc in all materials like Stainless Steel , Carbon Steel and High Nickel Alloys. We Manufacture, Export and Supply Pipe Fittings which meets with public and overall quality standards and conveying base which cases supplies acclimating to worldwide specific level and is all around equipped with a whole course of action of forefront plasma refining kinds of stuff.

Insert weld Outlets, Insert weld Outlets Manufacturers, Insert weld Outlets Exporters, Insert weld Outlets Suppliers, Insert weld Outlets Stockists.ASTM A105 Insert Weld Outlets, ASTM A105 Insert Weld Outlets Dimensions, Outlets Fittings, Outlets.

Awesome Image

Insert weld Outlets Manufacturers in Mumbai, Insert weld Outlets Exporters in Mumbai, Insert weld Outlets Suppliers in Mumbai, Insert weld Outlets Stockists in Mumbai.Manufacturer , Exporter & Supplier of ASTM A105 Insert Weld Outlets , ASTM A105 Insert Weld Outlets Dimensions ,Insert Weld Outlets , Outlets Fittings, Outlets.

We produce every one of the 3 social events of Fittings, for instance, Buttweld (BW) fittings, Socket Weld (SW) fittings and Threaded (THD) Fittings as per ASTM standards and other International standards. We exchange our incredible ASTM A105 Insert Weld Outlets to Kuwait, Egypt and Qatar.


Specifications of ASTM A105 Insert Weld Outlets

Size : 1/2'' - 24

Type : Weld Outlets, Socket Weld Outlets, Nipple Outlets, Threading Outlets, 45 Deg Outlets / Lateral Outlets, Flexolet butt-weld, Flexolet Threaded and Sweep Outlets


MATERIALS :
Stainless Steel Outlets – SS Weld Outlets
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Duplex Stainless Steel Outlets - Duplex SS Weld Outlets
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.

Carbon Steel Outlets – CS Weld Outlets
Standard : ASTM / ASME A/SA 105 / 350 LF 2 / A 516 GR.70 / IS 2062

Nickel Alloy Weld Outlets :
Standard : ASTM / ASME SB 564 / 160 / 472
Grade : UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)

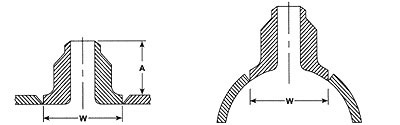

Dimensions of ASTM A105 Insert Weld Outlets:

ASTM A105 Insert Weld Outlets dimensions


Outlet
Size
A' Dimensions (Height above run pipe)
1 1/2 2 2 1/2 3 4 5 6 8 10 12 14 16 18 20 24
Std Wt Run Pipe 1.50 1.50 1.62 1.75 2.00 2.25 2.38 2.75 3.06 3.38 3.50 3.75 3.81 4 4.56
XS Run Pipe 1.50 1.50 1.62 1.75 2.00 2.25 3.06 3.87 3.69 4.06 3.81 4.19 4.38 4.69 5.50
.500" to .750" Thick Run Pipe - - - 2.88 3.31 3.75 4.12 4.18 4.25 4.37 4.50 4.69 5.13 5.62 6.50
.750" to 1.00" Thick Run Pipe - - - 3.22 3.38 3.75 4.34 4.62 4.84 5.10 5.25 5.88 6.50 6.75 7.62
1.00" to 1.25" Thick Run Pipe - - - 3.38 3.50 4.00 4.50 4.88 5.00 5.38 5.50 6.00 6.50 7.00 8.00
1.25" to 1.50" Thick Run Pipe - - - 3.62 3.87 4.25 4.69 5.16 5.31 5.68 5.81 6.44 6.50 7.56 8.72
Outlet
Size
*'W' Dimensions (Max. O.D. of fitting - Max. size of hole)
1 1/2 2 2 1/2 3 4 5 6 8 10 12 14 16 18 20 24
Std Wt Run Pipe 3.50 4.25 4.88 5.69 7.00 8.06 9.71 11.71 14.00 16.32 17.56 19.75 22.00 24.00 29.00
XS Run Pipe 3.56 4.38 5.00 5.75 7.12 8.25 10.44 13.44 14.25 16.56 18.00 20.00 22.44 25.00 30.32

Applications Of ASTM A105 Insert Weld Outlets:

  •  ASTM A105 Insert Weld Outlets used in Chemical and petrochemical processing
  •  ASTM A105 Insert Weld Outlets used in refineries
  •  ASTM A105 Insert Weld Outlets used in electronics
  •  ASTM A105 Insert Weld Outlets used in fertilizer
  •  ASTM A105 Insert Weld Outlets used in power plant
  •  ASTM A105 Insert Weld Outlets used in nuclear power
  •   ASTM A105 Insert Weld Outlets used in oil and gas
  •  ASTM A105 Insert Weld Outlets used in paper industries
