Omaa Metal Sources is a surprising get-together, which was set up longer than 10 years back to consider making mentioning of ASTM A105 Flexolet Buttweld rules in Weld Outlets, Nipple Outlets, Sweep Outlets, 45 Deg Outlets/Lateral Outlets , Socket Weld Outlets, etc in all materials like Stainless Steel , Carbon Steel and High Nickel Alloys. We Manufacture, Export and Supply Pipe Fittings which meets with public and by and large quality standards and giving base which has supplies acclimating to in everyday express level and is particularly outfitted with a whole plan of front line plasma refining kinds of stuff.
Flexoutlet buttweld, Flexoutlet buttweld Manufacturers, Flexoutlet buttweld Exporters, Flexoutlet buttweld Suppliers, Flexoutlet buttweld Stockists.ASTM A105 Flexolet Buttweld, ASTM A105 Flexolet Buttweld Dimensions, Outlets Fittings, Outlets.
Flexoutlet buttweld Manufacturers in Mumbai, Flexoutlet buttweld Exporters in Mumbai, Flexoutlet buttweld Suppliers in Mumbai, Flexoutlet buttweld Stockists in Mumbai.Manufacturer , Exporter & Supplier of ASTM A105 Flexolet Buttweld , ASTM A105 Flexolet Buttweld Dimensions ,Flexolet Buttweld , Outlets Fittings, Outlets.
We make all of the 3 get-togethers of Fittings, for instance, Buttweld (BW) fittings, Socket Weld (SW) fittings and Threaded (THD) Fittings as indicated by ASTM rules and other International standards. We exchange our first class ASTM A105 Flexolet Buttweld to Kuwait, Egypt and Qatar.
Specifications of ASTM A105 Flexolet Buttweld
Size : 1/2'' - 24
Type : Weld Outlets, Socket Weld Outlets, Nipple Outlets, Threading Outlets, 45 Deg Outlets / Lateral Outlets, Flexolet butt-weld, Flexolet Threaded and Sweep Outlets
MATERIALS :
Stainless Steel Outlets – SS Weld Outlets
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Duplex Stainless Steel Outlets - Duplex SS Weld Outlets
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
Carbon Steel Outlets – CS Weld Outlets
Standard : ASTM / ASME A/SA 105 / 350 LF 2 / A 516 GR.70 / IS 2062
Nickel Alloy Weld Outlets :
Standard : ASTM / ASME SB 564 / 160 / 472
Grade : UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)

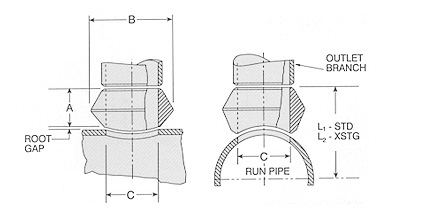

Dimensions of ASTM A105 Flexolet Buttweld :
| ndard | Outlet Size | Dimensions | Appx Weight | ||
| Inches | A | B | C | Pounds | |
| 3/8 | 3/4 | 1 | 0.493 | 0.10 | |
| 1/2 | 3/4 | 1 1/8 | 0.622 | 0.12 | |
| 3/4 | 7/8 | 1 1/2 | 0.824 | 0.22 | |
| 1 | 1 1/16 | 1 13/16 | 1.062 | 0.32 | |
| 1 1/4 | 1 1/4 | 2 1/4 | 1.38 | 0.64 | |
| 1 1/2 | 1 5/16 | 2 9/16 | 1.625 | 0.78 | |
| 2 | 1 1/2 | 3 5/16 | 2.313 | 1.14 | |
| 2 1/2 | 1 5/8 | 3 21/32 | 2.500 | 1.94 | |
| 3 | 1 3/4 | 4 9/32 | 3.125 | 2.60 | |
| 4 | 2 | 5 3/8 | 4.145 | 4.12 | |
| 6 | 2 3/8 | 7 21/32 | 6.112 | 11 | |
| Extra Strong | Outlet Size | Dimensions | Appx Weight | ||
| Inches | A | B | C | Pounds | |
| 3/8 | 3/4 | 1 | 0.423 | 0.10 | |
| 1/2 | 3/4 | 1 1/8 | 0.546 | 0.12 | |
| 3/4 | 7/8 | 1 1/2 | 0.742 | 0.18 | |
| 1 | 1 1/16 | 2 13/16 | 1.062 | 0.36 | |
| 1 1/4 | 1 1/4 | 2 1/4 | 1.278 | 0.55 | |
| 1 1/2 | 1 5/16 | 2 9/16 | 1.625 | 0.68 | |
| 2 | 1 1/2 | 3 5/16 | 2.313 | 1.24 | |
| 2 1/2 | 1 5/8 | 3 21/32 | 2.500 | 2.26 | |
| 3 | 1 3/4 | 4 9/32 | 3.125 | 2.84 | |
| 4 | 2 | 5 3/8 | 4.145 | 4.56 | |
| 6 | 3 1/16 | 7 23/32 | 5.800 | 15.00 | |
Applications Of ASTM A105 Flexolet Buttweld :
- ASTM A105 Flexolet Buttweld used in Chemical and petrochemical processing
- ASTM A105 Flexolet Buttweld used in refineries
- ASTM A105 Flexolet Buttweld used in electronics
- ASTM A105 Flexolet Buttweld used in fertilizer
- ASTM A105 Flexolet Buttweld used in power plant
- ASTM A105 Flexolet Buttweld used in nuclear power
- ASTM A105 Flexolet Buttweld used in oil and gas
- ASTM A105 Flexolet Buttweld used in paper industries
