Omaa Metal Sources is a phenomenal social gathering, which was set up longer than 10 years back to oblige making referencing of ASTM A105 Flexolet Threaded norms in Weld Outlets, Nipple Outlets, Sweep Outlets, 45 Deg Outlets/Lateral Outlets , Socket Weld Outlets, and so on in all materials like Stainless Steel , Carbon Steel and High Nickel Alloys. We Manufacture, Export and Supply Pipe Fittings which meets with public and everything considered quality norms and giving base which has supplies acclimating to all around express level nd is particularly outfitted with an entire outline of cutting edge plasma refining kinds of stuff.
Flexoutlet Threaded, Flexoutlet Threaded Manufacturers, Flexoutlet Threaded Exporters, Flexoutlet Threaded Suppliers, Flexoutlet Threaded Stockists.ASTM A105 Flexolet Threaded , ASTM A105 Flexolet Threaded Dimensions , Outlets Fittings, Outlets.
Flexoutlet Threaded Manufacturers in Mumbai, Flexoutlet Threaded Exporters in Mumbai, Flexoutlet Threaded Suppliers in Mumbai, Flexoutlet Threaded Stockists in Mumbai.Manufacturer , Exporter & Supplier of ASTM A105 Flexolet Threaded , ASTM A105 Flexolet Threaded Dimensions ,Flexolet Threaded , Outlets Fittings, Outlets.
We make every one of the 3 parties of Fittings, for example, Buttweld (BW) fittings, Socket Weld (SW) fittings and Threaded (THD) Fittings as shown by ASTM rules and other International guidelines. We trade our top notch ASTM A105 Flexolet Threaded to Kuwait, Egypt and Qatar.
Specifications of ASTM A105 Flexolet Threaded
Size : 1/2'' - 24
Type : Weld Outlets, Socket Weld Outlets, Nipple Outlets, Threading Outlets, 45 Deg Outlets / Lateral Outlets, Flexolet butt-weld, Flexolet Threaded and Sweep Outlets
MATERIALS :
Stainless Steel Outlets – SS Weld Outlets
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Duplex Stainless Steel Outlets - Duplex SS Weld Outlets
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
Carbon Steel Outlets – CS Weld Outlets
Standard : ASTM / ASME A/SA 105 / 350 LF 2 / A 516 GR.70 / IS 2062
Nickel Alloy Weld Outlets :
Standard : ASTM / ASME SB 564 / 160 / 472
Grade : UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)

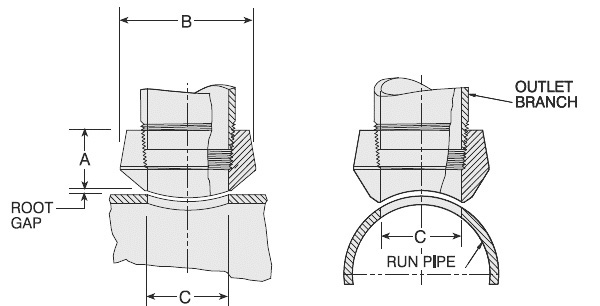

Dimensions of ASTM A105 Flexolet Threaded :
| 3000 | Outlet Size Inches |
Dimensions | Appx Weight Pounds |
|||
| A | B | C | E | |||
| 1/4 | 3/4 | 1 | 0.364 | 3/8 | 0.14 | |
| 3/8 | 13/16 | 1 1/16 | 0.493 | 7/16 | 0.14 | |
| 1/2 | 1 | 1 15/32 | 0.622 | 9/16 | 0.28 | |
| 3/4 | 1 1/16 | 1 45/64 | 0.824 | 9/16 | 0.39 | |
| 1 | 1 5/16 | 2 3/32 | 1.049 | 25/32 | 0.73 | |
| 1 1/4 | 1 5/16 | 2 17/32 | 1.380 | 23/32 | 0.96 | |
| 1 1/2 | 1 3/8 | 2 25/32 | 1.610 | 3/4 | 1.12 | |
| 2 | 1 1/2 | 3 5/16 | 2.067 | 13/16 | 1.66 | |
| 2 1/2 | 1 13/16 | 4 29/32 | 2.469 | 3/4 | 2.73 | |
| 3 | 2 | 4 21/32 | 3.068 | 15/16 | 3.88 | |
| 4 | 1 1/4 | 5 13/16 | 4.026 | 1 1/16 | 6.60 | |
| |
||||||
| CL6000 | Outlet Size Inches |
Dimensions | Appx Weight Pounds |
|||
| A | B | C | E | |||
| 1/2 | 1 1/4 | 1 3/4 | 0.464 | 13/16 | 0.28 | |
| 3/4 | 1 7/16 | 2 1/16 | 0.612 | 15/16 | 0.39 | |
| 1 | 1 9/16 | 2 17/32 | 0.815 | 1 1/32 | 0.73 | |
| 1 1/4 | 1 5/8 | 2 1/2 | 1.160 | 1 1/32 | 0.96 | |
| 1 1/2 | 1 11/16 | 3 5/16 | 1.338 | 1 1/16 | 1.63 | |
| 2 | 2 1/16 | 3 31/32 | 1.687 | 1 3/8 | 1.66 | |
Applications Of ASTM A105 Flexolet Threaded :
- ASTM A105 Flexolet Threaded used in Chemical and petrochemical processing
- ASTM A105 Flexolet Threaded used in refineries
- ASTM A105 Flexolet Threaded used in electronics
- ASTM A105 Flexolet Threaded used in fertilizer
- ASTM A105 Flexolet Threaded used in power plant
- ASTM A105 Flexolet Threaded used in nuclear power
- ASTM A105 Flexolet Threaded used in oil and gas
- ASTM A105 Flexolet Threaded used in paper industries
