Applications
Recommended for suspension of cold pipe lines or hot lines where no insulation is required. It can also be used for supporting pipes along roof.
Two Bolt Pipe EPDM Lining Clamp, Two Bolt Pipe EPDM Lining Clamp Manufacturers, Two Bolt Pipe EPDM Lining Clamp Exporters, Two Bolt Pipe EPDM Lining Clamp Suppliers, Two Bolt Pipe EPDM Lining Clamp Stockists.
Two Bolt Pipe EPDM Lining Clamp Manufacturers in Mumbai, Two Bolt Pipe EPDM Lining Clamp Exporters in Mumbai, Two Bolt Pipe EPDM Lining Clamp Suppliers in Mumbai, Two Bolt Pipe EPDM Lining Clamp Stockists in Mumbai.
CONSTRUCTION :

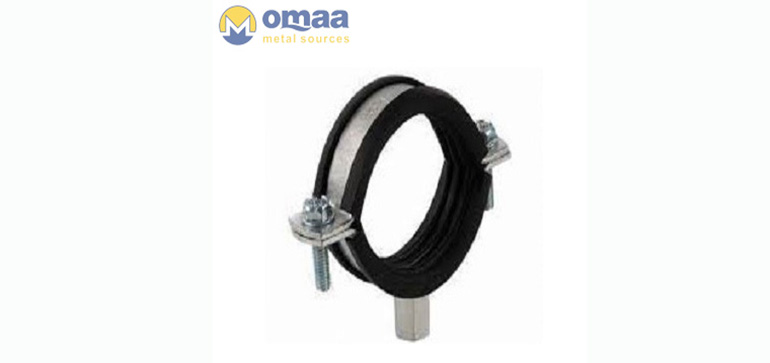

Riser Pipe Clamps consists of two carbon steel flat bars bent to shape and held together by two bolts. Reduces noise upto 18 dB. It also consists of piece carbon steel shaped to wrap around the pipe, made form shaped carbon steel plate.
MATERIAL :
Carbon Steel also other materials can also be provided on request.
APPROVALS :
Manucaturers standarization Society ANSI/MSS SP-69 & SP-58(Type 12)
TEMPERATURE RANGE: -20°C to 110°C
Finish Available : Plain, Hot Dip Galvanized, Electro-Galvanized.

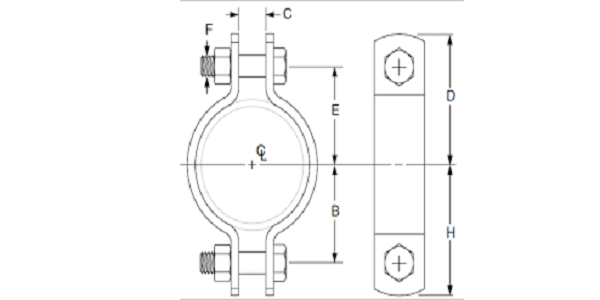

| Product Code | Nominal Pipe Size | Pipe OD (mm) | Dimension | Max Load (KG) |
|||
|---|---|---|---|---|---|---|---|
| Inch | MM | Lenght | Bolt Size | Gap G | |||
| SMI-TBPCL-0.5 | 1⁄2’’ | DN15 | 21.3 | 200 | M10 | 12 | 150 |
| SMI-TBPCL-0.75 | 3⁄4’’ | DN20 | 26.7 | 210 | M10 | 12 | 150 |
| SMI-TBPCL-1 | 1’’ | DN25 | 33.4 | 230 | M10 | 12 | 150 |
| SMI-TBPCL-1.25 | 1 1⁄4’’ | DN32 | 42.1 | 260 | M10 | 12 | 150 |
| SMI-TBPCL-1.5 | 1 1⁄2’’ | DN40 | 48.2 | 260 | M10 | 12 | 150 |
| SMI-TBPCL-2 | 2’’ | DN50 | 60.3 | 260 | M10 | 16 | 150 |
| SMI-TBPCL-2.5 | 2 1⁄2’’ | DN65 | 73.0 | 290 | M12 | 16 | 350 |
| SMI-TBPCL-3 | 3’’ | DN80 | 88.9 | 290 | M12 | 16 | 350 |
| SMI-TBPCL-3.5 | 3 1⁄2’’ | DN90 | 101.6 | 330 | M12 | 16 | 350 |
| SMI-TBPCL-4 | 4’’ | DN100 | 114.3 | 330 | M12 | 19 | 350 |
| SMI-TBPCL-5 | 5’’ | DN125 | 141.3 | 350 | M16 | 19 | 500 |
| SMI-TBPCL-6 | 6’’ | DN150 | 168.3 | 380 | M16 | 22 | 500 |
| SMI-TBPCL-8 | 8’’ | DN200 | 219.1 | 470 | M16 | 25 | 1000 |
| SMI-TBPCL-10 | 10’’ | DN250 | 273.0 | 520 | M16 | 25 | 1000 |
| SMI-TBPCL-12 | 12’’ | DN300 | 323.8 | 580 | M20 | 25 | 1200 |
| SMI-TBPCL-14 | 14’’ | DN350 | 355.6 | 610 | M20 | 28 | 1200 |
| SMI-TBPCL-16 | 16’’ | DN400 | 406.4 | 660 | M20 | 28 | 1800 |
| SMI-TBPCL-18 | 18’’ | DN450 | 457.2 | 710 | M20 | 32 | 1800 |
| SMI-TBPCL-20 | 20’’ | DN500 | 508.0 | 760 | M20 | 35 | 1800 |
| SMI-TBPCL-24 | 24’’ | DN600 | 609.6 | 880 | M20 | 42 | 1800 |
