Applications:

Recommended for help or potentially limit of all the more overwhelming vertical steel pipes.A RISER CLAMP WITH FOUR BOLTS is intended to connect to the channels and to lay on an auxiliary part or floor, it isn't intended to have holder bars joined to it to help the pipe.

Four Bolts Riser Clamp, Four Bolts Riser Clamp Manufacturers, Four Bolts Riser Clamp Exporters, Four Bolts Riser Clamp Suppliers, Four Bolts Riser Clamp Stockists.

Awesome Image

Four Bolts Riser Clamp Manufacturers in Mumbai, Four Bolts Riser Clamp Exporters in Mumbai, Four Bolts Riser Clamp Suppliers in Mumbai, Four Bolts Riser Clamp Stockists in Mumbai.


CONSTRUCTION:

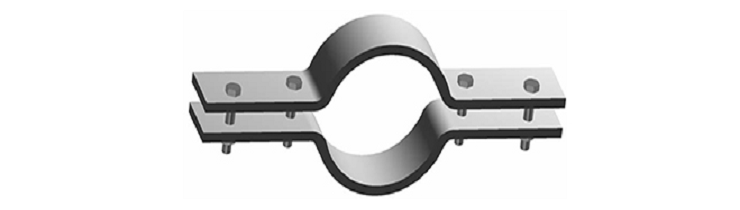

RISER CLAMPS with FOUR BOLTS consist of two carbon steel flat bars bent to shape and held together by four bolts.


MATERIAL :

Steel. Also other materials can also be provided on request


APPROVALS :

  • Manufacturers Standardization Society ANSI/MSS SP-69 & SP-58
  • Federal Specification WW-H-171E & A-A-1192A

Maximum Temperature :343°C (650°F)

Finish Available : Plain, Hot Dip Galvanized, Electro-Galvanized.

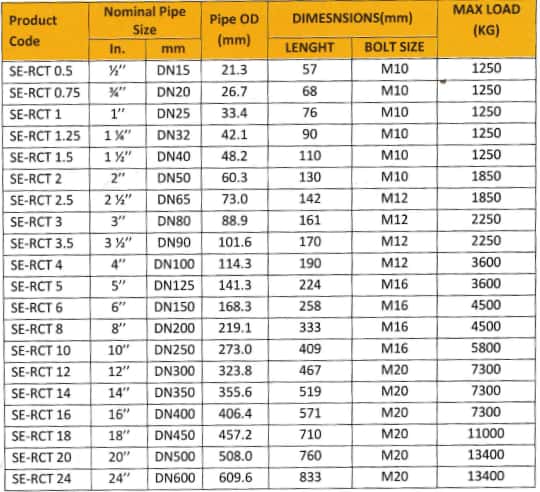

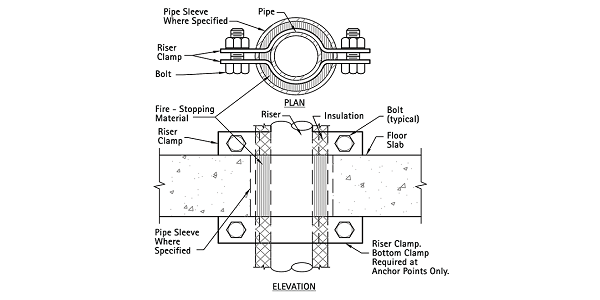

Four-Bolts-Riser-Clamp-dimension

four-bolt-riser-clamp
