We are one of the central Manufacturers and Supplier of High quality ASME B16.11 Stainless Steel Socket Weld Unequal Cross in Mumbai, India. These Socket Weld Cross are open in various size, assessments, detail and thickness as shown by the customer's basics. These ASTM A182 SS Socket weld Reducing Cross completely utilized in different application industry, for example, petrochemicals, power age, transport building, squander water treatment, substance, quiets, and so on Most basic stockist of Socket Weld Unequal Cross in India. Our offered level of SS Forged Socket weld Reducing Cross is composed and made by the overall quality standards at our foundation office to achieve most essential benchmarks of gigantic worth.

Socket Weld Unequal Cross, Socket Weld Unequal Cross Manufacturers, Socket Weld Unequal Cross Exporters, Socket Weld Unequal Cross Suppliers, Socket Weld Unequal Cross Stockists, Socket Weld Unequal Cross Manufacturers, Socket Weld Unequal Cross Exporters, Socket Weld Unequal Cross Suppliers, Socket Weld Unequal Cross Stockists.

Awesome Image

Omaa Metal Sources, Association weld diminishing cross in packs are passed on with metal strips or wires the investigate way. The degree of clashing cross is reasonable for use in high likewise as moderate temperatures. SS 310 Socket weld Reducing Cross tracks down application over a wide degree of attempts Cross show unavoidable utilize obstruction in peculiar conditions in a wide degree of compound decreasing conditions, particularly in acidic chloride conditions. We have utilitarian responsibility with social occasion and part of a wide degree of Stainless Steel Socket Weld Unequal Cross that are open in different norm and changed metals, sizes, examinations and tops to investigate.

We are vender and distributer of ASME B16.11 Forged Socket Weld Unequal Cross, Forged Unequal Cross 3000lb Socket Weld, Socket Weld Forged Unequal Cross and Bs3799 Socketweld Forged Unequal Cross at Factory Price. We are most clear provider of Forged Socket Weld Unequal Cross, most ideal circumstance, cost as we are sensible the best provider and brokers of Ansi B16.11 Forged Socket Weld Cross and ASME B16.11 Forged Socket Weld Unequal Cross in India. We can likewise give free event of Socket Weld Reducing Cross. we are set up to offer an incredible quality mark of communication of Socket Weld Forged Unequal Cross that tracks down wide use in monstrous affiliations

A line having four openings inside a near put at the right astounding lights on one another. The Stainless Steel Socket Weld Unequal Cross can't clearly control the stream taking into account its shape. Thusly, this fitting may have three channels and one outlet or one channel and three outlets. There are two kinds of crosses one is Socket Weld Forged Unequal Cross another is Socket Weld Unequal Cross or notwithstanding called the ANSI B16.11 Manufactured Socket Weld Cross.

Socket Weld Unequal Cross Manufacturers in Mumbai, Socket Weld Unequal Cross Exporters in Mumbai, Socket Weld Unequal Cross Suppliers in Mumbai, Socket Weld Unequal Cross Stockists in Mumbai.

Specification of Socket Weld Unequal Cross

Specifications Forged Unequal cross
Dimension Specification ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Unequal cross Forged Fittings Thread NPT, BSPT, BSPP
Unequal cross FittingsType DN15-DN1200
End Threaded, Welding, JIC
Unequal cross Fittings Pressure Rating Threaded end-2000lb/ 3000lb/ 6000lbs Unequal cross
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Unequal cross
Size Range 1/8" NB TO 4" NB
Manufacturing process Push, Press, Forge, Cast, etc.
Unequal cross Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for Unequal cross Fittings
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Application
  • Unequal cross To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc

Material of Socket Weld Unequal Cross

Carbon Steel Unequal Cross
  • ASTM A105
  • ASME SA105
  • DIN 1.0402
  • DIN 1.0460
  • DIN 1.0619
  • ASTM A105N
  • ASME SA105N
  • ASTM A350 LF2
  • ASME SA350
  • High Yield CS ASTM A694
Stainless Steel Socket weld Unequal Cross
  • ASTM A182 F304
  • ASTM A182 F304L
  • ASTM A182 F316
  • ASTM A182 F316L
  • ASTM A182 F317
  • ASTM A182 F317L
  • ASTM A182 F321
  • ASTM A182 F321H
  • ASTM A182 F347
  • ASTM A182 F347H
Alloy Steel Unequal Cross
  • ASTM A182 F5
  • ASTM A182 F9
  • ASTM A182 F11
  • ASTM A182 F22
  • ASTM A182 F91
Titanium Unequal Cross
  • ASTM B381 Titanium Gr. 1
  • ASTM B381 Titanium Gr. 2
  • ASTM B381 Titanium Gr. 4
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7
Inconel Unequal Cross
  • Inconel 600
  • Inconel 601
  • Inconel 625
  • Inconel 718
  • Inconel x750
Copper Unequal Cross T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Unequal Cross Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Brass Unequal Cross 3602 / 2604 / H59 / H62 / etc.
Hastelloy Unequal Cross Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X
Monel Unequal Cross Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 Unequal Cross Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium Unequal Cross 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel Unequal Cross Nickel 200, Nickel 201
Duplex Unequal Cross S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Unequal Cross S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Unequal Cross Incoloy 800, Incoloy 800H, Incoloy 800HT (UNS N08800), Incoloy 825 (UNS N08825)
254 Smo Unequal Cross SMO 254/6Mo, UNS S31254, DIN 1.4547
Nimonic Unequal Cross Nimonic 75, Nimonic 80A, Nimonic 90
Other Unequal Cross material Tin bronze, Alumunum bronze, Lead bronze

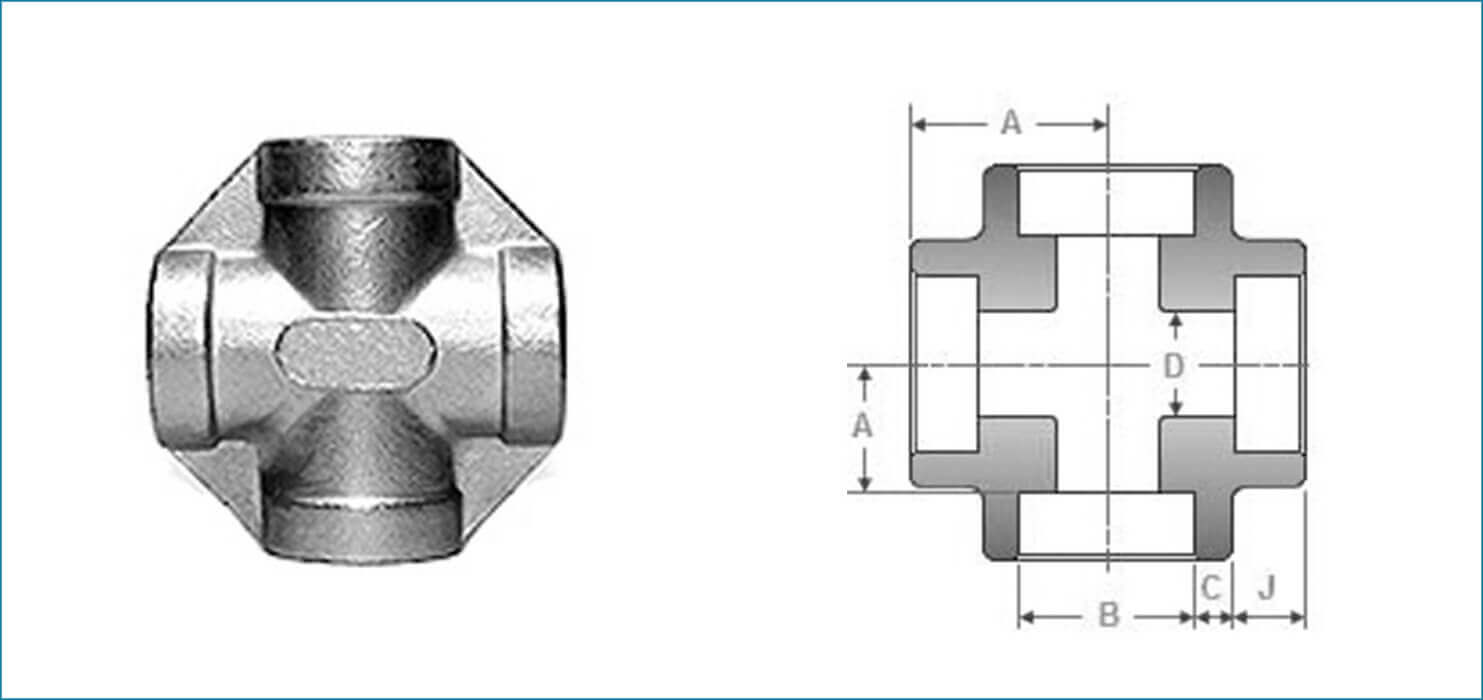

Dimensions of Socket weld Unequal Cross

Dimensions NPS 1/2 to 4 – 90°/45° – Class 3000
NPS Socket
Bore
Depth
Socket
Bore
dia
Socket
WT
Body
WT
Center to
bottom
of socket
B J D C G A
1/2 21.95
21.70
10 16.6
15
4.65
4.10
3.75 15.5
3/4 27.30
27.05
13 21.7
20.2
4.90
4.25
3.90 19.5
1 34.05
33.80
13 27.4
25.9
5.70
5.00
4.55 22
1.1/4 42.80
42.55
13 35.8
34.3
6.05
5.30
4.85 27
1.1/2 48.90
48.65
13 41.7
40.1
6.35
5.55
5.10 32
2 61.35
61.10
16 53.5
51.7
6.95
6.05
5.55 38
2.1/2 74.20
73.80
16 64.2
61.2
8.75
7.65
7.00 41.5
3 90.15
89.80
16 79.5
46.4
9.50
8.30
7.60 57.5
4 115.80
115.45
19 103.8
100.7
10.70
9.35
8.55 66.5
NPS B J D C G A
Socket
Bore
Depth
Socket
Bore
dia
Socket
WT
Body
WT
Center to
bottom
of socket

Dimensions NPS 1/2 to 2 – 90°/45° – Class 6000

NPS Socket
Bore
Depth
Socket
Bore
dia
Socket
WT
Body
WT
Center to
bottom
of socket
B J D C G A
1/2 21.95
21.70
10 12.5
11
5.95
5.20
4.80 19.5
3/4 27.30
27.05
13 16.3
14.8
6.95
6.05
5.55 22.5
1 34.05
33.80
13 21.5
19.9
7.90
6.95
6.35 27
1.1/4 42.80
42.55
13 30.2
28.7
7.90
6.95
6.35 32
1.1/2 48.90
48.65
13 34.7
33.2
8.90
7.80
7.15 38
2 61.35
61.10
16 43.6
42.1
10.90
9.50
8.75 41
NPS B J D C G A
Socket
Bore
Depth
Socket
Bore
dia
Socket
WT
Body
WT
Center to
bottom
of socket

General notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • Socket Bore (B) – Maximum and minimum dimensions.
  • Bore Diameter (D) – Maximum and minimum dimensions.
  • Socket wall thickness – (C) – Average of Socket wall thickness.
  • Dimensional tolerances center to bottom of socket – (A)
    NPS 1/2 and NPS 3/4 = +/- 1.5 mm
    NPS 1 to NPS 2 = +/- 2 mm
    NPS 2.1/2 to NPS 4 = +/- 2.5 mm
