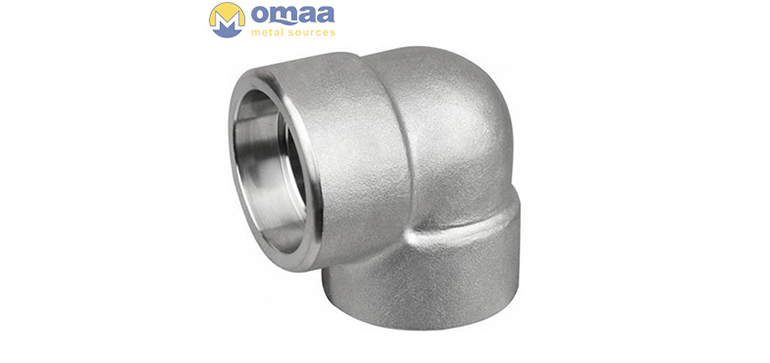

Omaa Metal Sources, We are manufactuer of Stainless Steel Socket weld 90 degree elbow which is utilized in various affiliations applications like substance making due, oil treatment working conditions, petrochemical and different undertakings. ANSI B16.11 Forged Socket Weld 90° Elbows to join line to fittings and valves or to different bits of line, filet-type seal welds be utilized. Alliance Weld Fittings 90 Degree Pipe Elbow add pressure occasions to the arrangement because of effect, crushing yet again restoring. We solid stockist of Socket Weld 90 Deg elbow which can be fixed measures as shown by client basic. We are paid special attention to wide dominate in giving Socket Weld 90 Deg Elbows in three weight assessments: Class 3000, 6000 and 9000 at moderate cost in India in different sizes as shown by require. Most undeniable stockist of SS 90 deg Forged SW Elbow in India.
Omaa Metal Sources, We are provider of Stainless Steel Socket Weld 90 Deg. Elbow meets with public and generally speaking quality rules and passing on base which cases sorts of contraption. During transportation Stainless Steel Socket weld 90 degree elbow and 90 Degree Elbow 3000lb Socket Weld are meandered and totaled in plastic packs. Association Weld 90 Elbow is used to Put through two lines with an on a very basic level obscure clear broadness to make the line turn 90 degrees. So on the off chance that you are taking a gander at the best cost of 90 Degree Socket Weld Elbow or Socket Weld Long Radius 90 Degree Elbows, ASME B16.11 90 Degree Elbow close to you with most limited time transport or a free layout of ASME B16.11 Socket Weld 90 Degree Elbow, 90 Degree Socket Elbow.
We can in like manner give free event of ASME B16.11 90 deg Socket weld Elbow, We are having our Dealer and Distributor in Jaipur, Gurgaon, Tamil Nadu, Gujarat, Aurangabad, Rajasthan, Ahmedabad, Uttar Pradesh, Delhi, Faridabad, Chennai, West Bengal, Rajkot, Ludhiana, Bhosari, Vadodara, Raipur, Ghaziabad, Haryana, Chhattisgarh, Khopoli, Madhya Pradesh, Karnataka, Punjab, Indore, Bangalore, Karnataka, Pune, Maharashtra, Kolkata, Nagpur, Kolhapur.
ASME B16.11 Socket Weld 90 Degree Elbow is a line affiliation detail in which a line is brought into a recessed space of a Valve, fitting or spine. Affiliation weld 90 degree elbow are basically utilized for little line breadths everything considered for having whose conspicuous width is NPS 2 or humbler. Tempered Steel Socket weld 90 degree elbow turn out 90° updates of heading in the run of line to shape sorting out arrangement.
Specifications | Forged 90 degree elbow |
---|---|
Dimension Specification | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
90 degree elbow Forged Fittings Thread | NPT, BSPT, BSPP |
90 degree elbow FittingsType | DN15-DN1200 |
End | Threaded, Welding, JIC |
90 degree elbow Fittings Pressure Rating | Threaded end-2000lb/ 3000lb/ 6000lbs 90 degree elbow |
Connection | Welding |
Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom 90 degree elbow |
Size Range | 1/8" NB TO 4" NB |
Manufacturing process | Push, Press, Forge, Cast, etc. |
90 degree elbow Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
Key markets and industries for 90 degree elbow Fittings |
|
Application |
|
Carbon Steel 90 degree elbow |
|
Stainless Steel Socket weld 90 degree elbow |
|
Alloy Steel 90 degree elbow |
|
Titanium 90 degree elbow |
|
Inconel 90 degree elbow |
|
Copper 90 degree elbow | T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc |
Copper Nickel | Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640 |
Brass 90 degree elbow | 3602 / 2604 / H59 / H62 / etc. |
Hastelloy 90 degree elbow | Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X |
Monel 90 degree elbow | Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500) |
Alloy 20 | Carpenter® 20 Alloy, Alloy 20Cb-3 |
Aluminium 90 degree elbow | 5052 /6061/ 6063 / 2017 / 7075 / etc. |
Nickel 90 degree elbow | Nickel 200, Nickel 201 |
Duplex 90 degree elbow | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
Super Duplex 90 degree elbow | S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
Incoloy 90 degree elbow | Incoloy 800, Incoloy 800H, Incoloy 800HT (UNS N08800), Incoloy 825 (UNS N08825) |
254 Smo 90 degree elbow | SMO 254/6Mo, UNS S31254, DIN 1.4547 |
Nimonic 90 degree elbow | Nimonic 75, Nimonic 80A, Nimonic 90 |
Other 90 degree elbow material | Tin bronze, Alumunum bronze, Lead bronze |

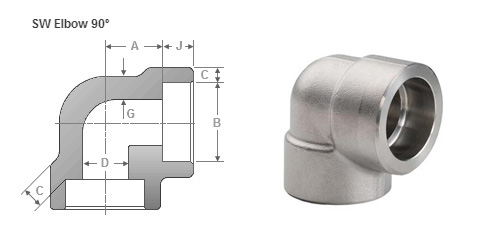

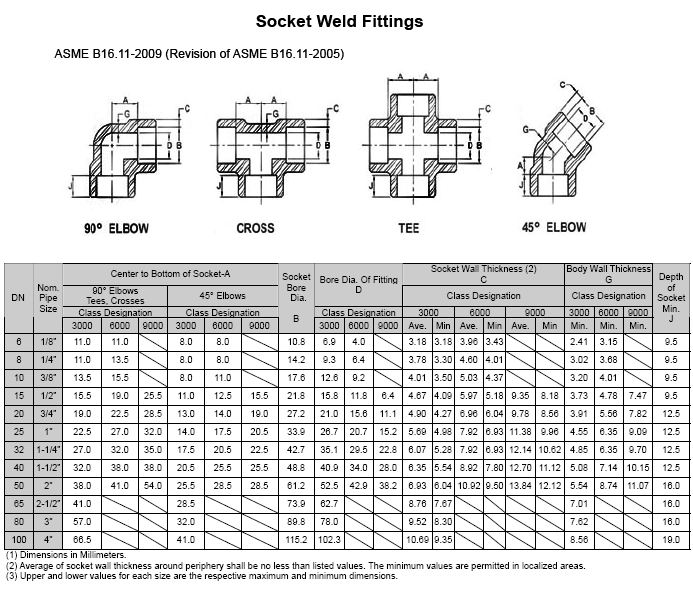

Dimensions Socket Weld Elbows - NPS 1/2 to 2 - 90° - 6000 LBS - ASME B16.11
NPS | Socket Bore |
Depth Socket |
Bore diameter |
Socket wall thickness |
Body wall thickness |
Center to bottom of socket A |
---|---|---|---|---|---|---|
B | J | D | C | G | 90° | |
1/2 | 21.95 21.70 |
10 | 12.5 11 |
5.95 5.20 |
4.80 | 19.5 |
3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
6.95 6.05 |
5.55 | 22.5 |
1 | 34.05 33.80 |
13 | 21.5 19.9 |
7.90 6.95 |
6.35 | 27 |
1¼ | 42.80 42.55 |
13 | 30.2 28.7 |
7.90 6.95 |
6.35 | 32 |
1½ | 48.90 48.65 |
13 | 34.7 33.2 |
8.90 7.80 |
7.15 | 38 |
2 | 61.35 61.10 |
16 | 43.6 42.1 |
10.90 9.50 |
8.75 | 41 |
