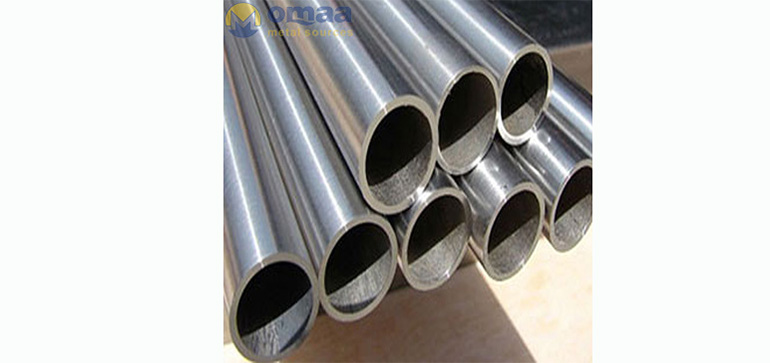

Omaa Metal Sources We are one of the significant Manufacturers, Suppliers and Exporters of High Quality ASTM A 671 Grade CC 60 Carbon Steel EFW Pipes and Tubes. The steel line will be delivered utilizing a weight vessel quality plate of various evaluation and quality levels. A few assessments and classes of line will be given. We are offer these lines and chambers are essentially respected by our clients for their fortitude, disintegrating resistance and layered accuracy. These lines and chambers is dependably used in oil and Gas, power Plants, boilers, transports, etc We equivalently offer these things authentic expense keeping watch.
Type | : | A671 GR CC60 EFW pipe |
Standard | : | ASME,ASTM,JIS,DIN,BS,EN |
Size | : | 16”NB-60”NB |
Wall Thickness | : | 8MM TO 50 MM THK |
Specification | Steel grade | Chemical composition | Remarks | |||||
C | Si | Mn | P | S | Ti | |||
Pipes for pressure service ASTM A671, A672 |
-/A45 | -/0.17 | - | 0.98 | 0.035 | 0.035 | - | A671/ A672 |
-/A50 | -/0.22 | - | ||||||
CA55/A55 | 0.28 | - | ||||||
-/B55 | -/0.20 | 0.13 ~0.45 |
||||||
CB60/B60 | 0.24 | |||||||
CB65/B65 | 0.28 | |||||||
CB70/C70 | 0.31 | 1.30 | ||||||
-/C55 | -/0.18 | 0.55 ~0.98 |
||||||
CC60/C60 | 0.21 | |||||||
CC65/C65 | 0.24 | 0.79 ~1.30 |
||||||
CC70/C70 | 0.27 |
Products | Steel Grade | BASE METAL MECHANICAL COMPOSITION | Welding point tensile strength (N/mm2) | Remarks | |||
Yield point (N/mm2) | Tensile Stregth (N/mm2) | Test Pieces | Elongation (%) | ||||
Pipes for pressure service ASTM A671, A672 | -/A45 | -/165 | -/310~450 | - | -/30 | -/310~450 | A671/ A672 |
-/A50 | -/185 | -/345~485 | -/28 | -/345~485 | |||
CA55/A55 | 205 | 380~515 | 27 | 380~515 | |||
-/B55 | -/205 | -/380~515 | -/27 | -/380~515 | |||
CB60/B60 | 220 | 415~550 | 25 | 415~550 | |||
CB65/B65 | 240 | 450~585 | 23 | 450~585 | |||
CB70/B70 | 260 | 485~620 | 21 | 485~620 | |||
-/C55 | -/205 | -/380~515 | -/27 | -/380~515 | |||
CC60/C60 | 220 | 415~550 | 25 | 415~550 | |||
CC65/C65 | 240 | 450~585 | 23 | 450~585 | |||
CC70/C70 | 260 | 485~620 | 21 | 485~620 |
