Manufacturer and exporter of CuNi 90/10 Blind Flange and 90/10 Copper Nickel Flanges Size Chart, UNS C70600 Industrial Flanges Dimensions, Copper Alloy 90/10 Plate Flange At Low Prices In India
Cupro Nickel 90/10 Flanges Specification
Specification: ASTM B151 / ASME SB151
Size: 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
JIS: 5K, 10K, 16K, 20K, 30K, 40K, 63K
Dimension Standard: ANSI, ASME, BS, DIN, EN etc.
Type: Ring Joint Flange (RTJ), Flat Face Flange (FF),
Raised Face Flange (RF), Male and Female Flange (M & F),
Lap Joint Flange, Large and Small Tongue-and-Groove Flange (T & G)
Pressure rating: 150#, 300#, 600#, 900#, 1500#, 2500#,
PN6, PN10, PN16, PN25, PN40, PN64 etc.

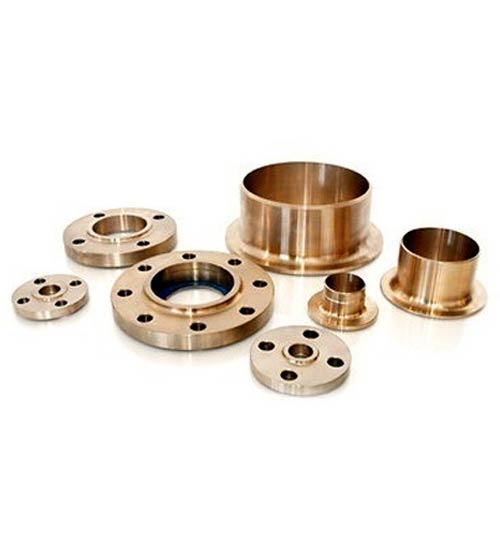

Cupro Nickel 90/10, also known as C70600, is a widely used alloy in various industries due to its excellent corrosion resistance and mechanical properties. Cupro Nickel 90/10 flanges are essential components in piping systems that require reliable connections and resistance to seawater and other aggressive environments.
The composition of Cupro Nickel 90/10 is 90% copper and 10% nickel, accompanied by a small proportion of iron and manganese. This alloy provides: Remarkable protection against general and localised corrosion. Making it perfect for use in marine and offshore businesses. Desalination plants. Chemical processing facilities.
The flanges made from Cupro Nickel 90/10 possess numerous advantageous properties. Firstly, they exhibit excellent resistance to biofouling, which is the accumulation of organisms on the surface, ensuring longevity and reduced maintenance requirements. Additionally, Cupro Nickel 90/10 flanges have high thermal conductivity and excellent ductility, allowing them to withstand high-pressure and high-temperature environments.
The Cupro Nickel 90/10 flanges are known for resisting stress corrosion cracking. This trait is especially significant in marine conditions, wherein saltwater with chloride can harm metal elements. Having Cupro Nickel 90/10 flanges significantly diminishes the risk of stress corrosion cracking, providing superior safety and dependability.
Cupro Nickel 90/10 Flanges Specifications
| Specification List Of : | 90/10 Copper Nickel Flanges |
|---|---|
| Different Type Of Flange For Sale | Weld Neck, Blind, Slip-On, Socket-Weld, Lap Joint, Threaded |
| Application | Municipal Pipe Systems Power Plants Industry Food Processing And Manufacturing Fossil Fuel Power Plants Waterworks Systems Nuclear Power Application Oil And Gas Industry |
| Temperature For Class 150 | Above 200° Celsius (400°F) For 150 Class Or Above 400° Celsius (750°F) |
| Low Temperature Chart | Above -29 ° Celsius (−20°F) |
| Manufacturer Of Japanese Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Bore Diameter Size Chart | NPS ≤ 10 |
| Size Format For Flanges | 1/2" To 48" |
| Available Type | Plate / Forged/ Threaded |
| ASTM Standard Materials | Copper Nickel, Alloy Steel, Mild Steel, Hastelloy, Stainless Steel, Wrought Iron, Duplex Steel & Super Duplex Steel, Cast Iron, Inconel, Carbon Steel. |
| Thickness For Pressure Vessel | NPS ≤ 18 |
| KOC Approved Manufacturer Of Below Standards | ANSI/ASME B16.5, API7S-15, IS 2062, ISO70051, API, API7S-43, ASME B16.48, AWWA C207, B16.47 Series A & B, API605, BS4504, EN1092, UNI, ASME B16.36, DIN, BS1560-3.1, EN-1092, ISO, MSS S44. |
| Pressure Rating Class | Class 150 To Class 2500 |
| Face Type | RTJ, Flat Face, Lap-Joint Face, Raised Face, Large Tongue & Groove And Small Tongue Groove, Large Male-Female And Small Male-Female. |
| Production Technique For Flange |
|
Cupro Nickel 90/10 Flanges Equivalent
| STANDARD | WERKSTOFF NR. | UNS |
| 90/10 Copper Nickel Flanges | 2.0872 | C70600 |
Additionally, Cupro Nickel 90/10 flanges are notably simple to configure and install due to their malleability and weldability. They are easily shaped and sized to fit different piping systems, making them adaptable for welding, threading, and slip-on flanges. Cupro Nickel 90/10 flanges also provide hassle-free set-up and maintenance processes.
Cupro Nickel 90/10 flanges are widely used in industries such as shipbuilding, offshore oil and gas, desalination plants, and chemical processing. Their corrosion resistance properties make them ideal for applications with common exposure to saltwater, acids, and alkalis. Additionally, these flanges offer good thermal conductivity, allowing for efficient heat transfer in heat exchangers and other similar equipment. With their exceptional resistance to biofouling and marine organisms, Cupro Nickel 90/10 flanges provide long-lasting performance and contribute to the overall reliability of the systems in which they are employed.
